IPCGansow CT 230 BT 85 - Checking Head Actuator Operation Manually

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011 28/195
A2.2 Checking head actuator operation manually
Checks

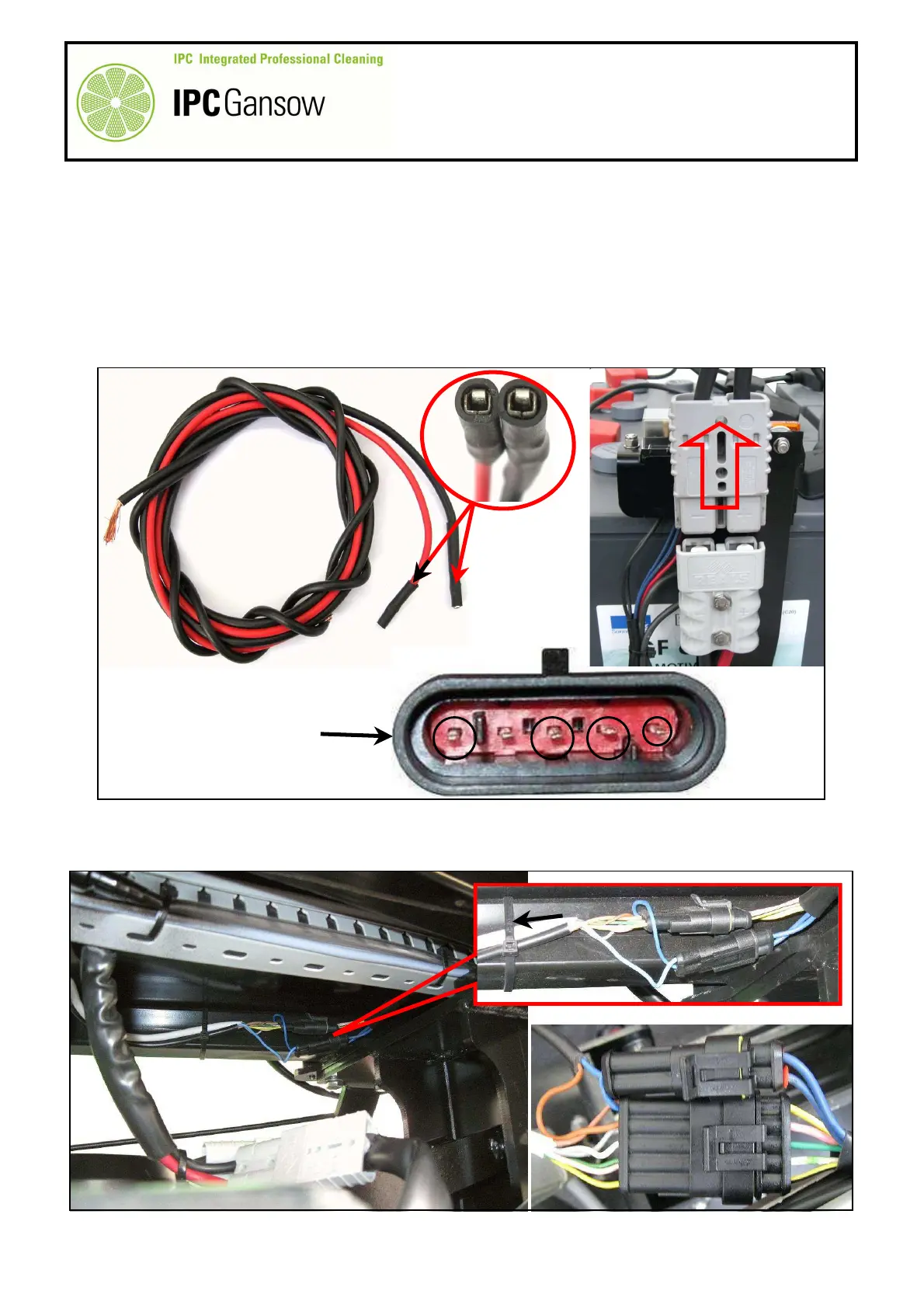

1 Obtain two wires A1 - A2 with different colours (see photograph below) with plugs compatible with the
terminals of the connector B.
2 Move the machine to the tank draining area and completely empty both tanks.
3 Move the machine onto a flat dry area of floor.
4 Turn the machine off and put the parking brake on.
5 Disconnect the batteries from the machine electronics via the Anderson connector C.
6 Raise the detergent and dirty water tanks.
7 Identify the two head actuator connectors B and D.
8 To carry out the tests, you need only disconnect the connector B (the larger 5-way connector), if necessary
remove the plastic clip E and also disconnect the connector D.
62
B
B
D
D
E
A
A1
A2
B
PHOTO 61
C
