IPCGansow CT 230 BT 85 - Replacing the Output Water Filter

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011 112/195
Replacing the output water filter
Disassembly

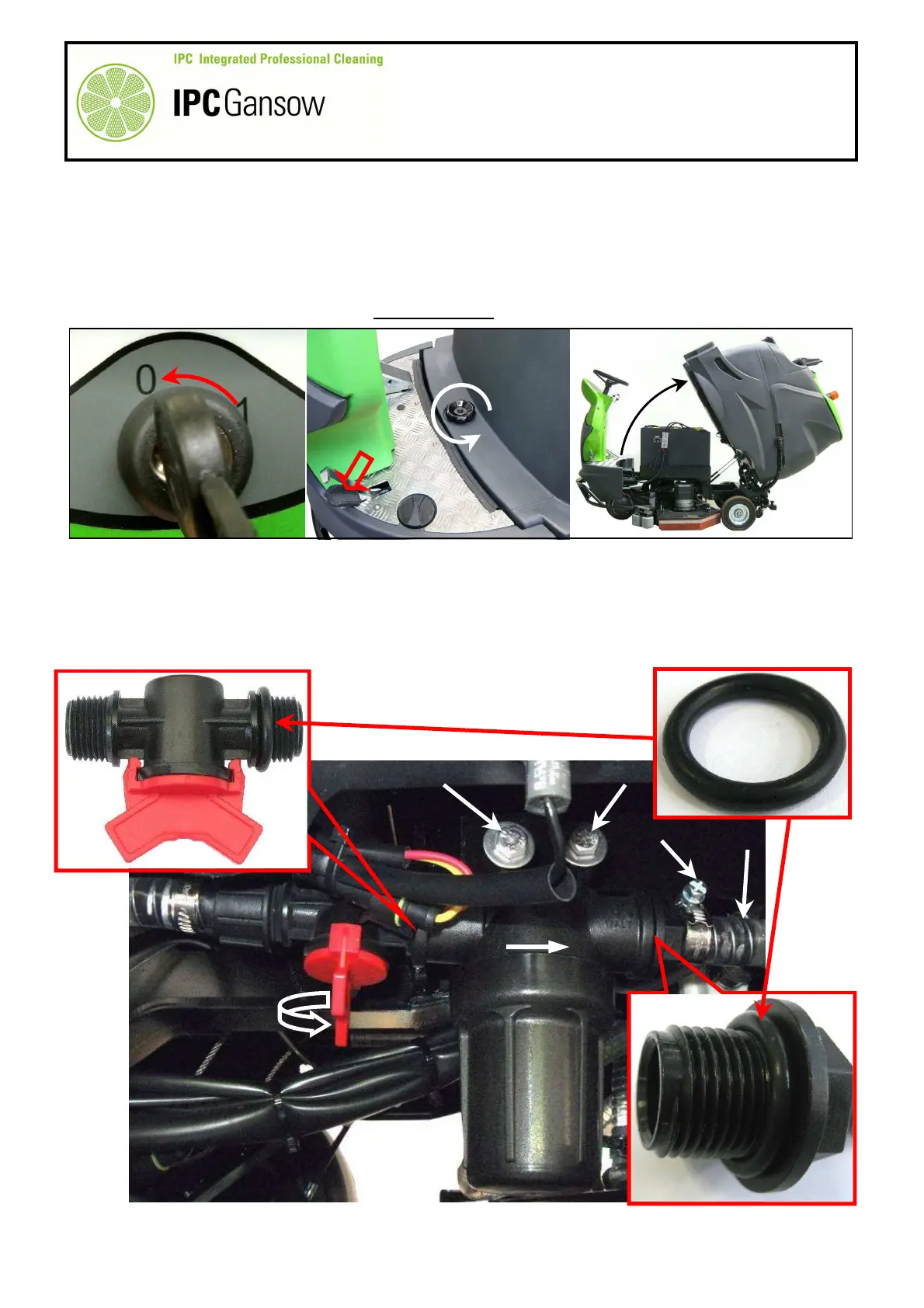

1 For convenience (not indispensable), move the machine to the tank draining area and completely empty both
tanks.
2 Move the machine onto a flat dry area of floor.
3 Switch the machine off by turning the ignition key A to "0" and press the pedal B to put the parking brake on.
4 Unscrew the knob C and lift both tanks (not indispensable) to access the tap and filter.
5 Turn the lever D1 of the tap D through 90° (degrees) to shut off the flow of wate r to the filter E.
6 Unscrew the two screws F fastening the filter E to the machine chassis.
7 Remove the metal band G and detach the hose H to the water pump.
8 Unscrew the water filter group E from the tap D paying attention to the O-ring I on the tap D.
9 Remove the coupling L on the other side of the filter E, continuing to pay attention to the O-ring M.
PHOTO 243
C
A
B
F
E
F
G
H
D
PHOTO 244
I - M
L
D1
