C3 ACCELERATOR PEDAL

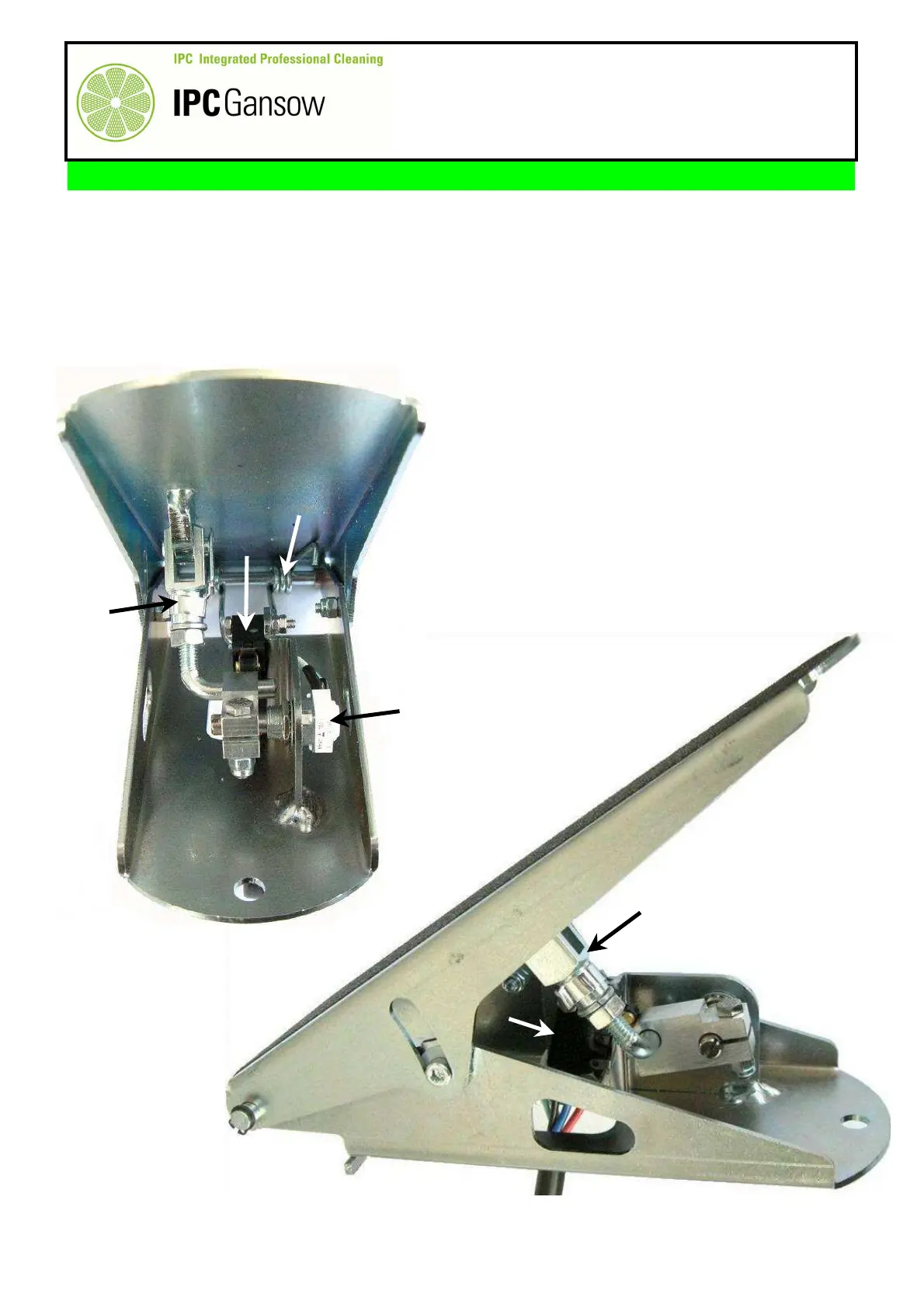

The accelerator pedal regulates the speed of the machine when being moved and while
working. Irrespective of use of the machine, it can be limited by means of the potentiometer on
the control panel and, while steering round tight bends, by means of the steering sensor.
The pedal consists of a number of principal components subject to wear such as the
potentiometer A and micro switch B. Over time, these may require replacing. Other
components of the pedal include the bottom pedal C, the top pedal D, the spring E, the
connecting rod F and the levers G.
A
F
G
PHOTO 337
