PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT
Stavale
- date 05/09/2011
169/195
C4.1 Replacing the pedal / Adjusting the brakes
Disassembly
1
Move the machine to the tank draining area and completely empty the dirty water and detergent tanks.
2
Move the machine onto a flat dry area of floor.
3
Switch the machine off by turning the ignition key to position "0".
4
Position wedges under the rear wheels.
5

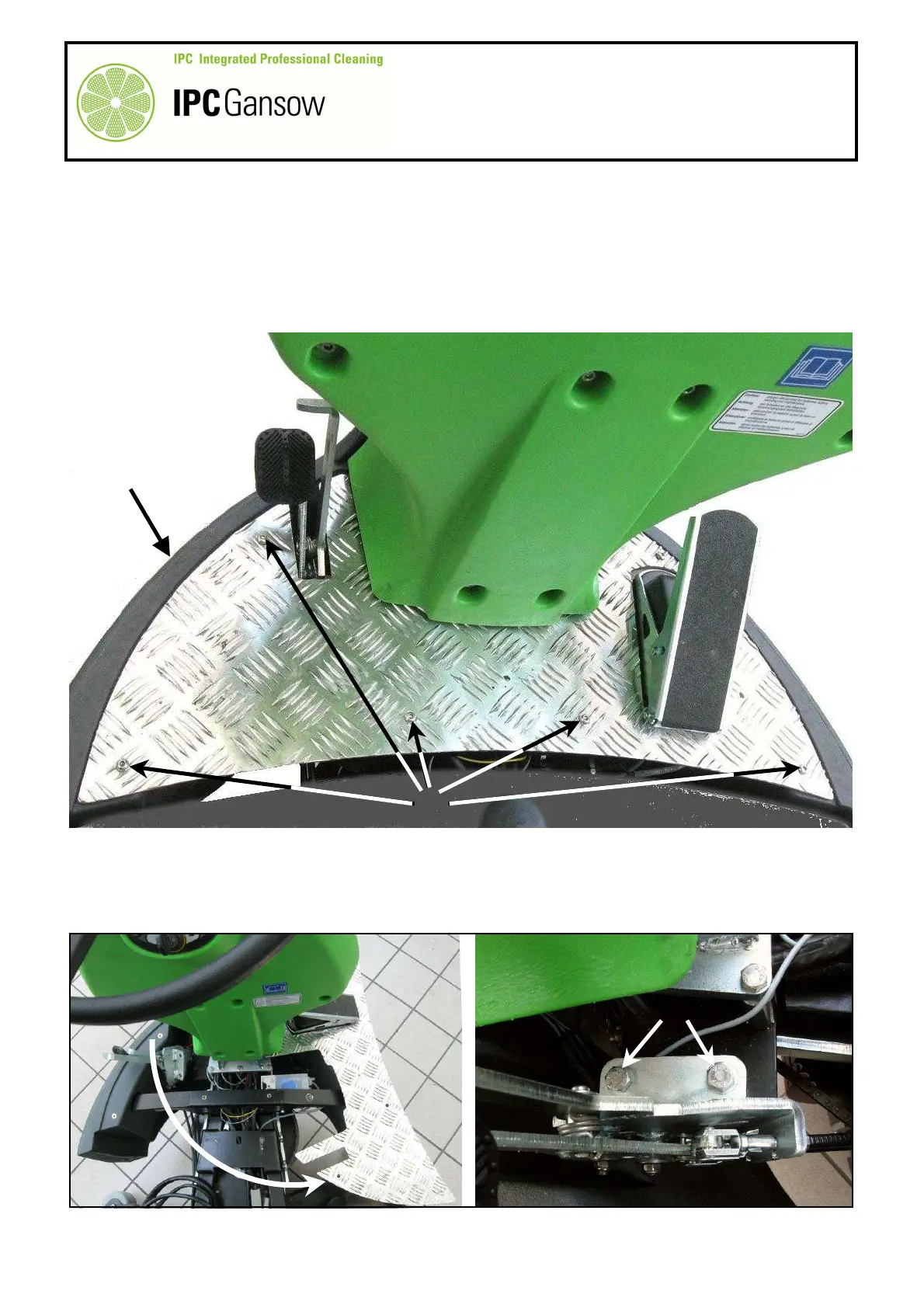

Unscrew the five (5) screws A fixing the aluminium foot plate B to the front panel C.
6
Raise the tanks.
7
Move the aluminium footplate B by rotating it anticlockwise towards the right.
8
Position the pedal in the idle position (not pressed).
9
Unscrew the two screws D fastening the pedal E to the chassis.
B
C
PHOTO 352
B
D
E
PHOTO 353
