D1 CONTROL PANEL BOARD
The control panel board is made in two pieces to facilitate disassembly of the steering column.
It consists of pressure buttons to select the various functions, emergency button, forwards-
backwards direction selector, speed limiter potentiometer, status LED indicating drive board
errors, ignition key and switch to activate the optional detergent dosing unit.

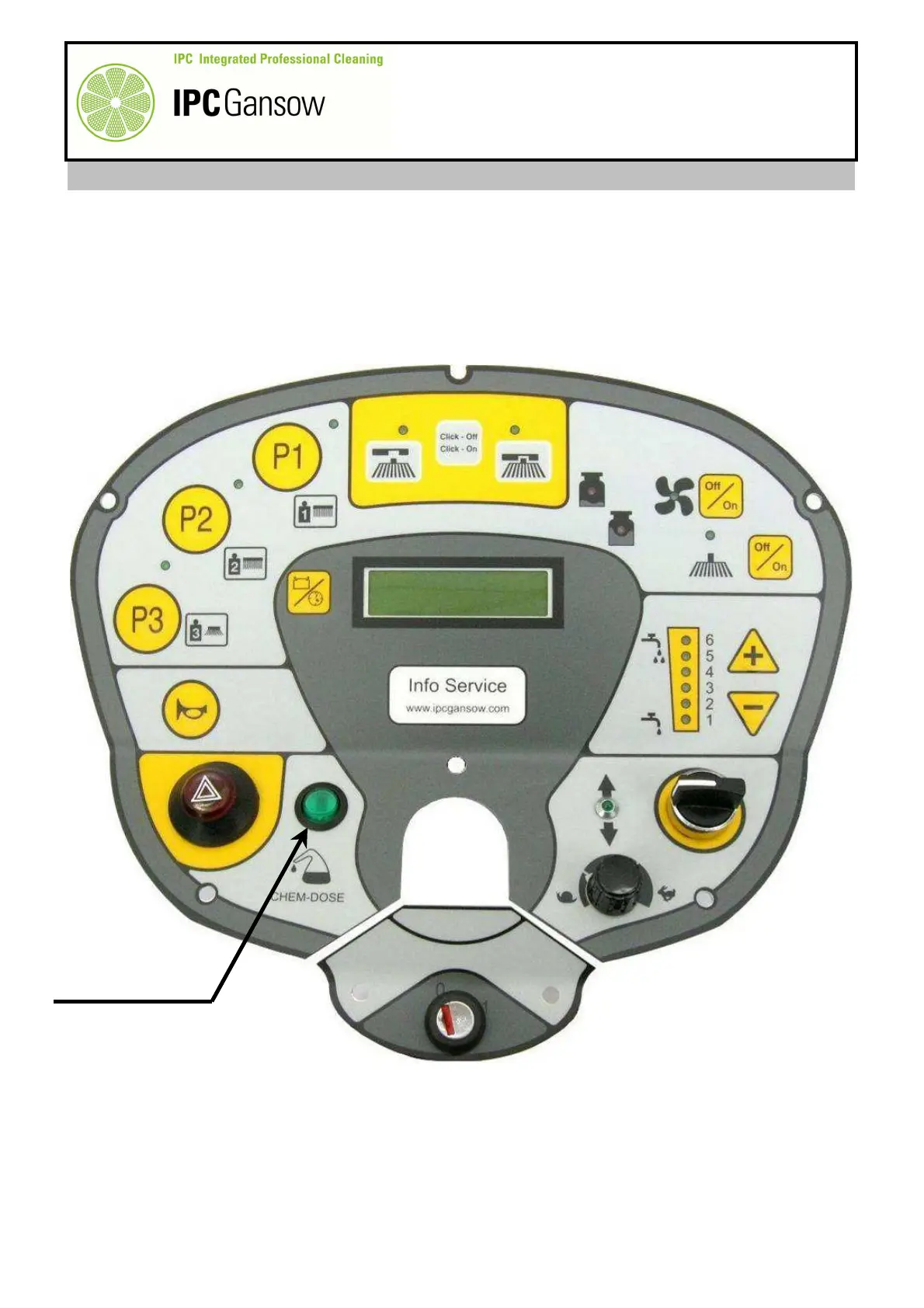

PHOTO 364
OPTIONAL
