IPCGansow CT 230 BT 85 - Checking Absorption on the Control Panel Board Wires

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011 25/195

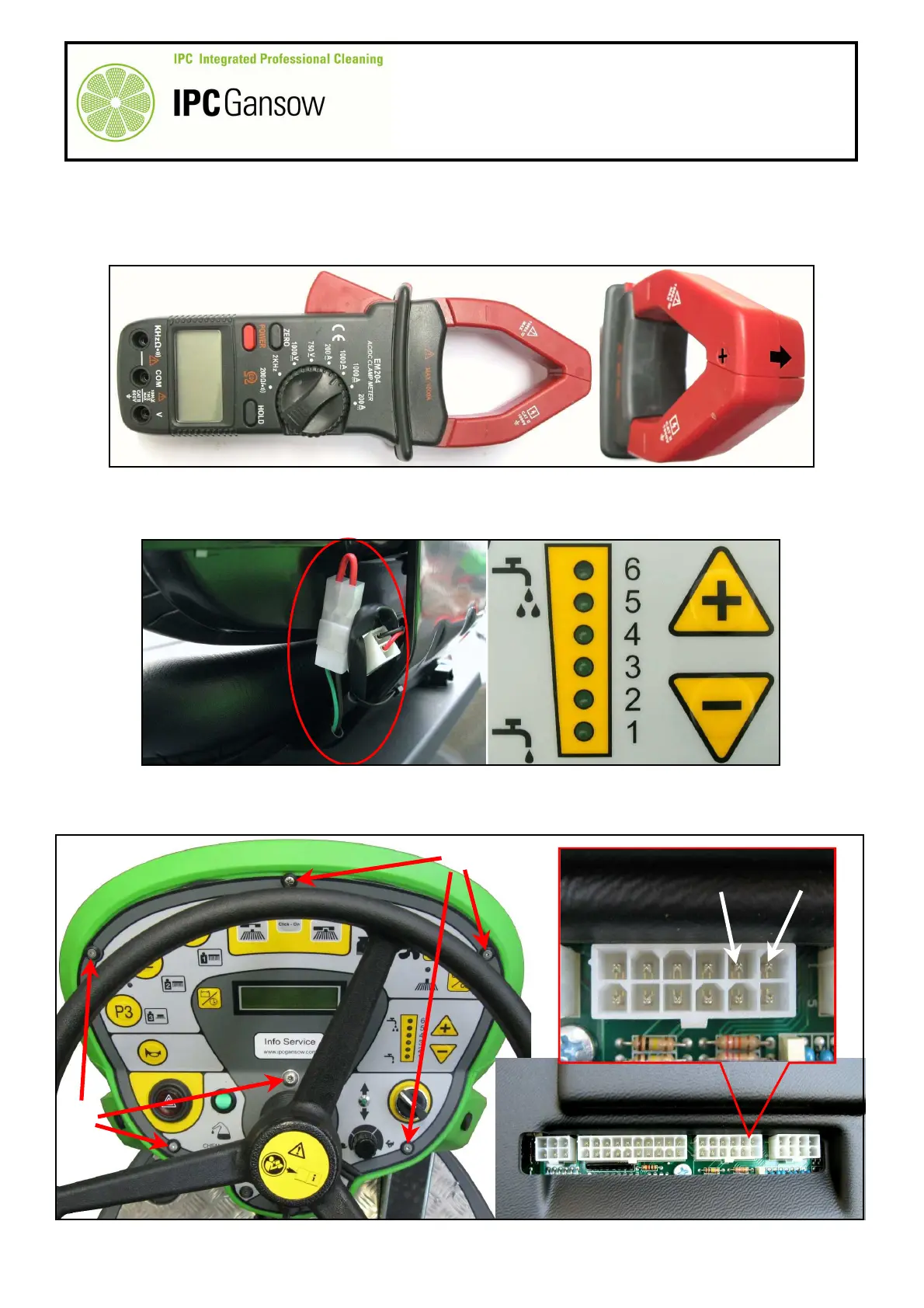

Checking absorption on the control panel board wires
1 Make sure the batteries on the machine are charged (36 V ± 1 V).
2 Obtain a clamp meter able to read up to 200 A (amps), see photograph below.
3 Move the machine onto a flat dry area of floor.
4 Disconnect the "operator present" sensor connector A and bridge it with a suitable connector.
5 Press the button B to set water flow to zero, no LED on.
6 Turn the machine off and press the pedal to put the parking brake on.
7 Remove the control panel by unscrewing the six screws C fixing it to the front panel.
8 Lift the control panel and identify the 12-pin connector D.
PHOTO 54
A
B
PHOTO 55
D
C
C
D5
D6
PHOTO 56
