IPCGansow CT 230 BT 85 - Slow Steering Sensor

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT
Stavale
- date 05/09/2011 173/195
C5 SLOW STEERING SENSOR
The sensor which slows the machine down when steering around bends is an electronic safety
device which prevents high speeds during tight curves. Located near the steering rim and
activated by a cam, it tells the drive circuit board to reduce speed by 60% with respect to the
forwards movement speed to a minimum of 40%.

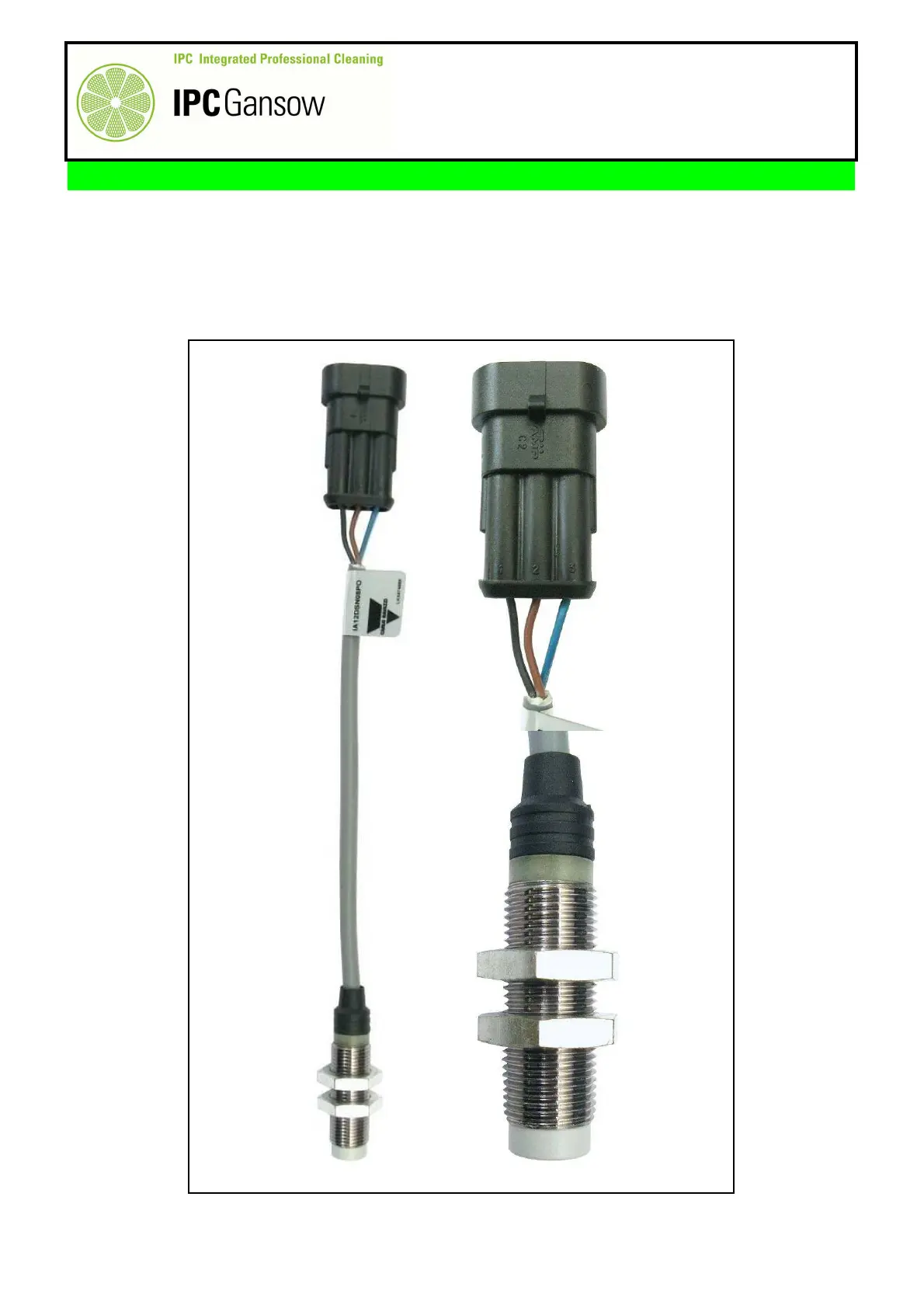

PHOTO 361
1 2 3
i
