PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011
106/195

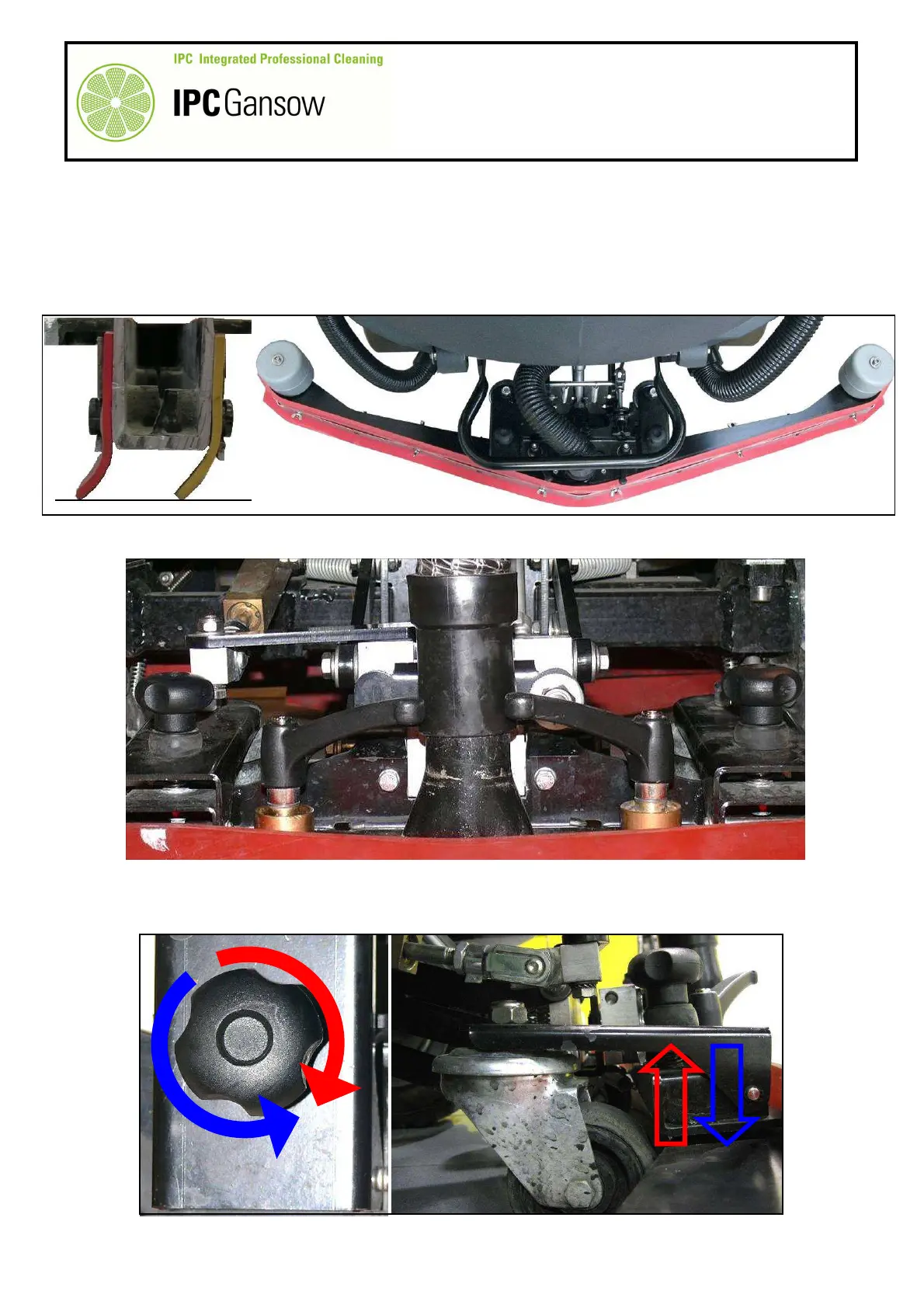

B2.6 Regulating the squeegee
1
Move the machine onto a flat dry area of floor.
2
Check that the squeegee blades are in good condition before regulating.
3
Wash a few metres in normal working conditions to position the squeegee blades in the drying phase.
4
Check that the entire length of the blade presses evenly on the floor with a suitable pressure.
5
The photograph below shows an example of the ideal condition.
6
If the blade presses evenly but with insufficient pressure, adjust the pressure by means of the knobs A.
7
Screw up the knob A to raise the squeegee towards the wheel mount, reducing the pressure
on the blade (-). Unscrewing it has the opposite effect (+).
8
Adjust the pressure on the blade using the two knobs A so that it is constant through the whole length.
A A
PHOTO 228
PHOTO 229
A
+
PHOTO 227
