C2.1 Checking and replacing the motor wheel carbon brushes
You are recommended to check the carbon brushes after about 600-700 working hours
and replace if necessary. You are recommended to replace all four (4) carbon brushes at
the same time.
Disassembly
1
Move the machine onto a flat dry area of floor.
2
Switch the machine off by turning the ignition key to position "0" and put the parking brake on.
3
Lift the seat mount and disconnect the batteries by means of the Anderson connector A.
4
Remove the front bumper and panel.
5
Turn the motor wheel B to identify the four (4) screws fixing the two (2) plastic casings.
6
First remove the cooling air duct cover C by unscrewing the two M5 x 30 mm screws C1.
7
Then remove the wire cover D by unscrewing the two M5 x 35 mm screws D1.

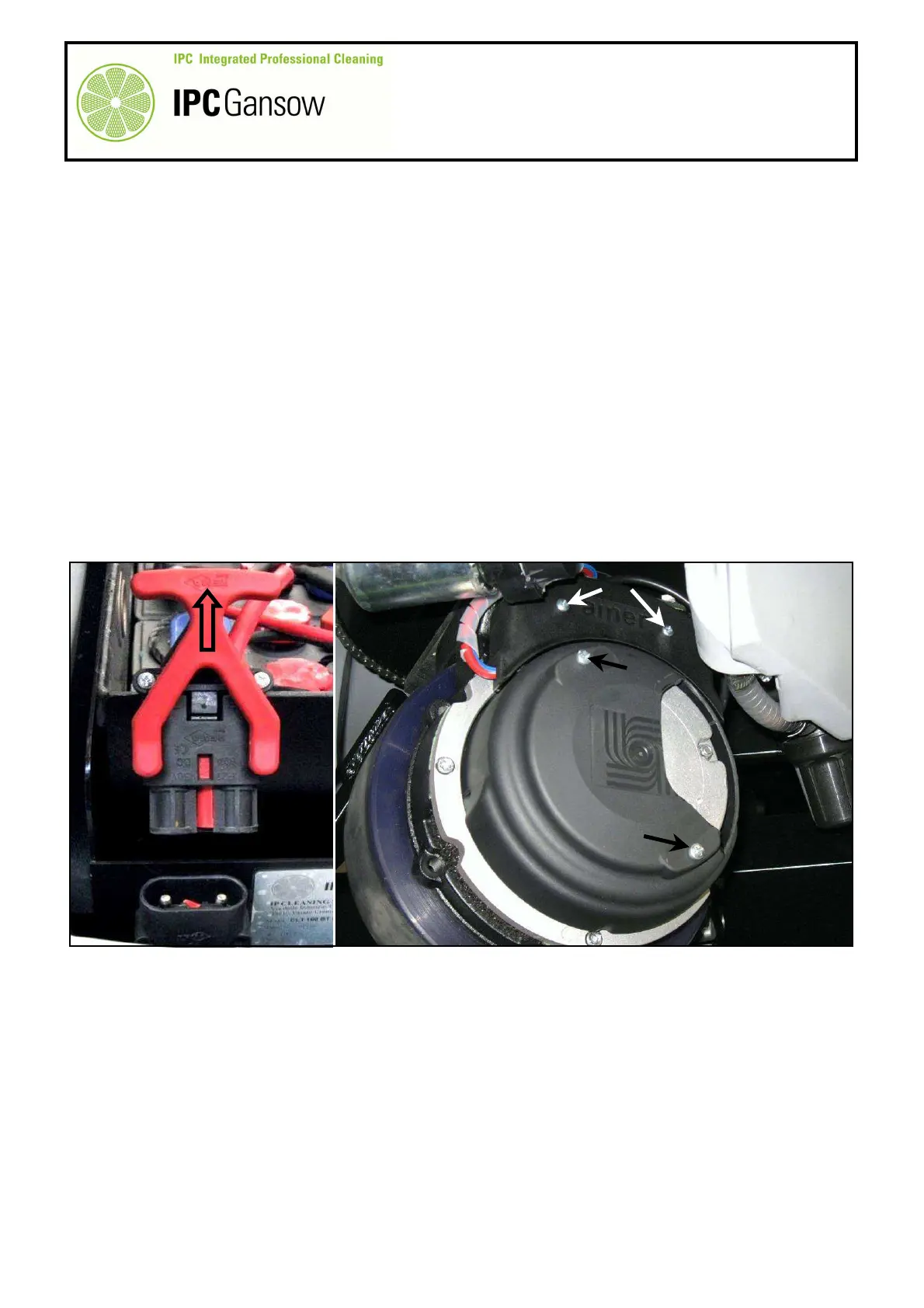

PHOTO 301
A
