PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT
Stavale
- date 05/09/2011
159/195
C2.4 Replacing the complete drive motor (motor wheel)
The drive motor should never need replacing. However, if used incorrectly, or if one of the
protection systems fails, it may be irreversibly damaged. It will therefore have to be replaced or
repaired.
Disassembly
1
Move the machine onto a flat dry area of floor.
2
Switch the machine off by turning the ignition key to position "0".
3
Disconnect the batteries from the main machine wiring by means of the Anderson connector A.
4
Press the pedal to put the parking brake on.
5
Raise the front motor wheel B using a hydraulic jack.
6
Remove the front bumper and front plastic cover as described in paragraph A3.1.
7
Remove the wire protection cover C by unscrewing the two M5 x 35 mm screws C1.
A

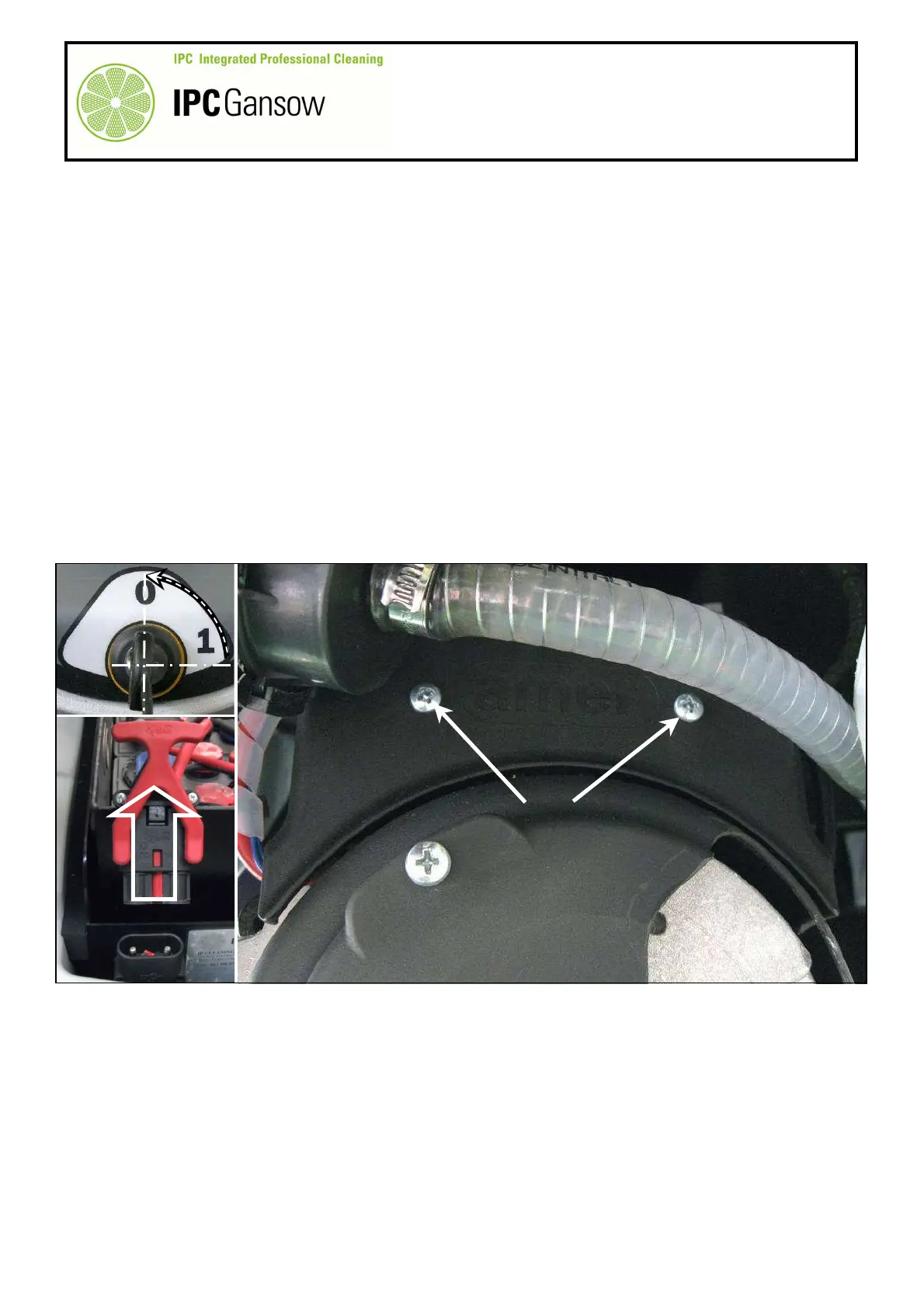

PHOTO 331
