PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT
Stavale
- date 05/09/2011
164/195
B

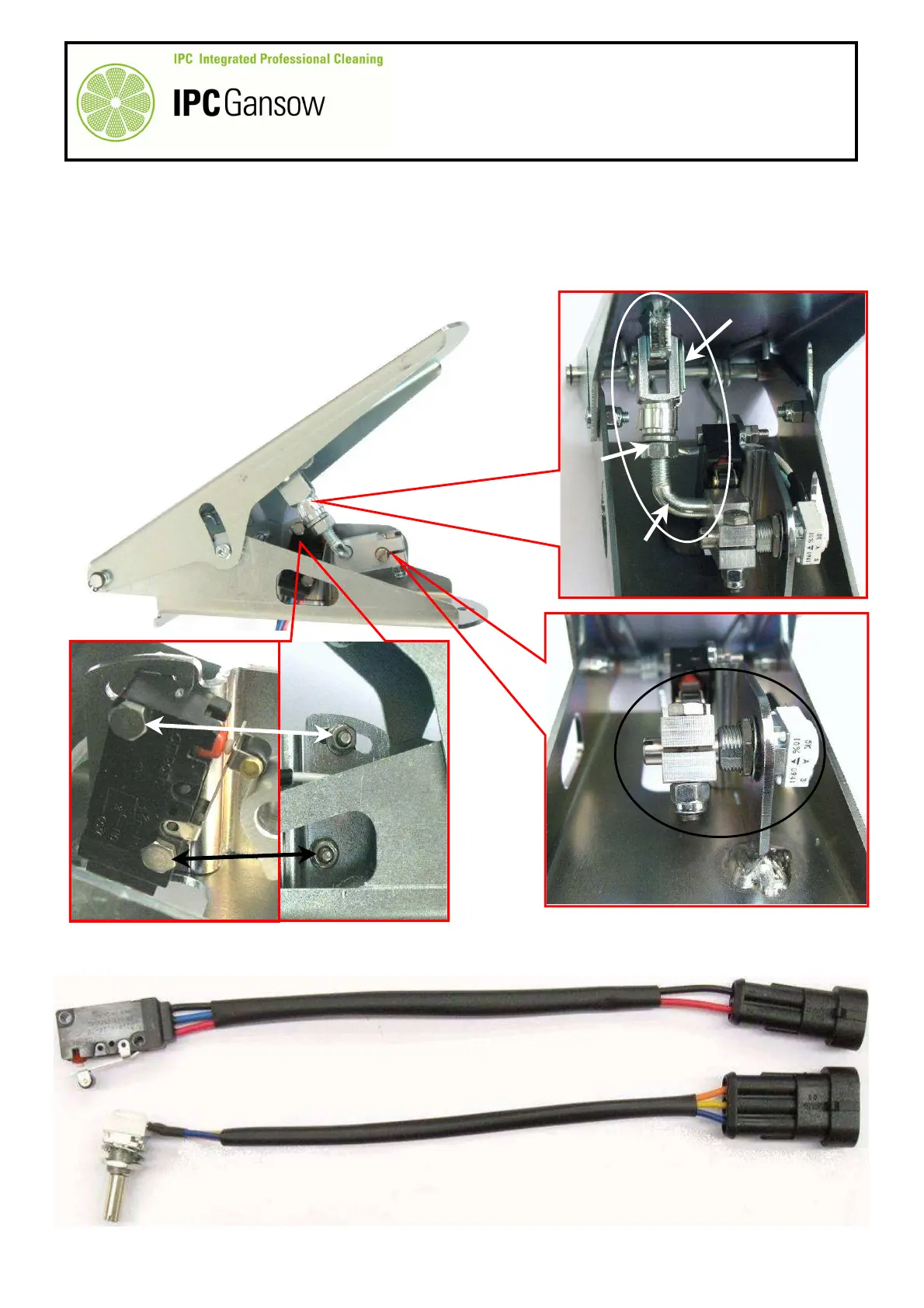

PHOTO 340
C3.2 Replacing the accelerator potentiometer and/or micro switch
Disassembly
1
Move the machine onto a flat dry area of floor.
2
Switch the machine off by turning the ignition key to position "0" and put the parking brake on.
3
Remove the accelerator pedal as described in paragraph C3.1.
4
Place the pedal on a bench, remove the lever with fork A
without unscrewing the nut A1 and modify the
length of the lever A2, releasing the clip
A3 only.
5
Continue by removing the
potentiometer B and the micro
switch C.
6
Replace the micro switch C or potentiometer B of the accelerator pedal with new ones as described below.
1 2 3
1 2
PHOTO 341
B
C
