IPCGansow CT 230 BT 85 - Operative Instruction; Electronic PCB Programming

n° 00/0023
23/05/2011
IP Cleaning SpA div. Floor care - via Cartesio 39 42040 Villa Bagno RE
Tel. 0039 0522 266000 - Fax 0039 0522 642045 - info@ipcleaning.com
1/2
Operative instruction
Istruzioni operative
PLDC01971
Model / Modello CT 230 Release SoftWare 2.00.9
SUBJECT / OGGETTO ELECTRONIC PCB PROGRAMMING / PROGRAMMAZIONE SCHEDA ELETTRONICA
default values
version
DISC BRUSH
version
ROLLER BRUSH
UP 1.0 UP 1.0
UP 2.2 UP 2.0
UP 3.9 UP 3.0
Battery type
ACID
Battery type
ACID
UP.B 0 UP.B 0
t0.5 t0.0
t1.5 t1.0
t2.3 t2.0
t3.4 t3.0
Potentiometer
alignment
Potentiometer
alignment
HEAD OF BRUSHES
DISC *
HEAD OF BRUSHES
ROLLER 750mm
24 H BUZZER OFF ** 24 H BUZZER OFF **
Version 160 / 230 Version 160
PARAMETER MODIFICATION OUT OF THE DEFAULT VALUE, COULD CAUSE AN INCORRECT
WORKING OF THE MACHINE: CONTACT IPC TECHNICAL DPT, BEFORE ANY MODIFICATION.

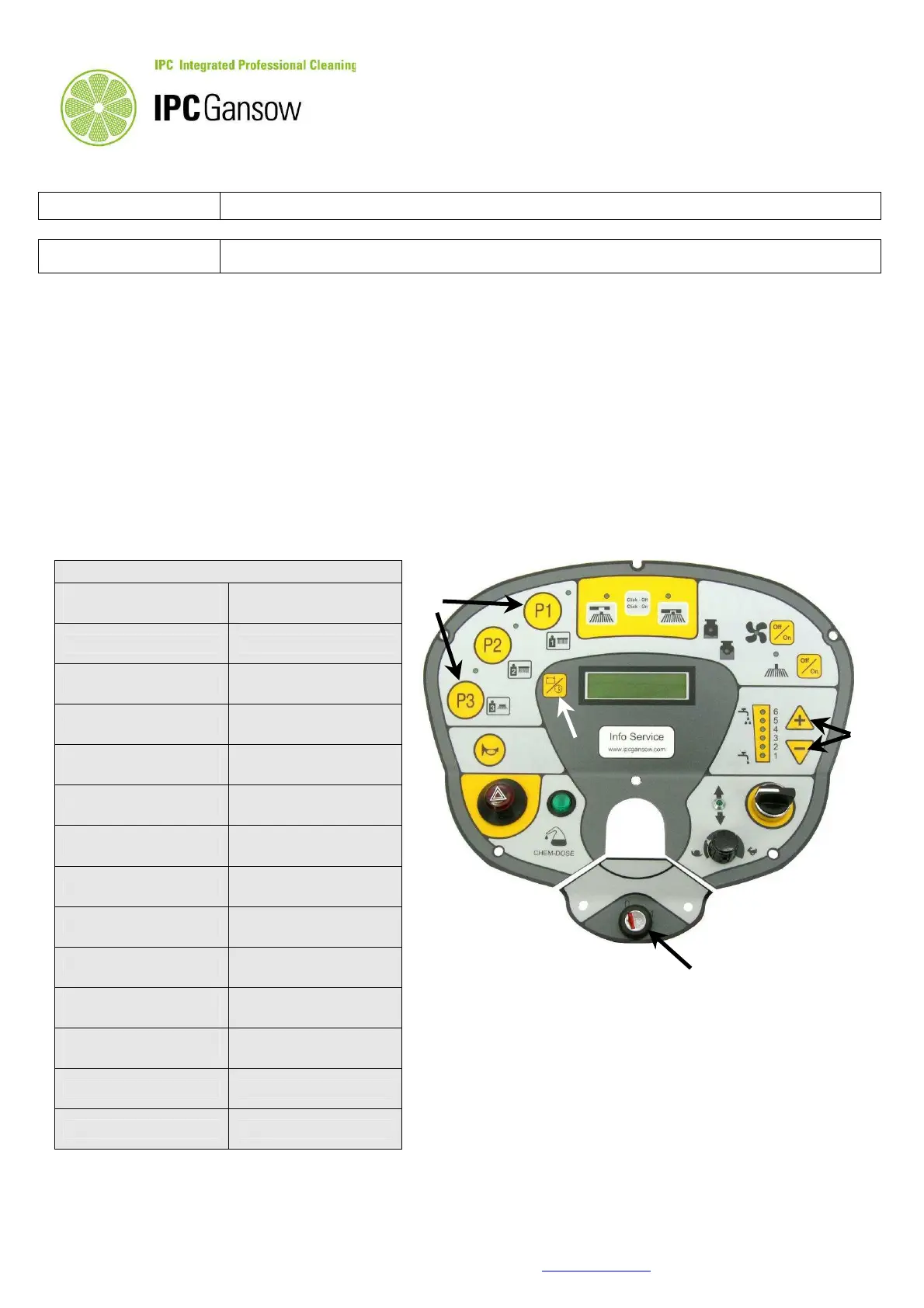

To enter in the technical programming,
keep pushed the button P1 and P3 ( ref. 4 ) and turn to1 the key
( ref. 1 ). Display shows the first parameter ( UP 1.0 ).To pass from a paramater to another one, use the
ref.2 button.
To modify the default value use the the water buttons ( ref.3 ):
push - to encrease the value / push + to decrease the value
To hold the modification and exit, keep pushed the ref. 2 button until display shows the voltage.
To erase the modification done and exit, turn to 0 the key ( ref. 1 )
* THE VALUE MUST BE RELATED TO TH
E BRUSH HEAD IN
USE [ 700 , 850 (CT230) , 950, 1050 (CT230) mm ].
** THIS IS USED TO SET THE BUZZER .
BUZZER ON MEANS THE BUZZER IS ALWAYS PLAY WHILE
USING THE MACHINE
BUZZER OFF MEANS THE BUZZER PLAY ONLY
IN REVERSE
DIRECTION .
