PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011
18/195
Checks
28

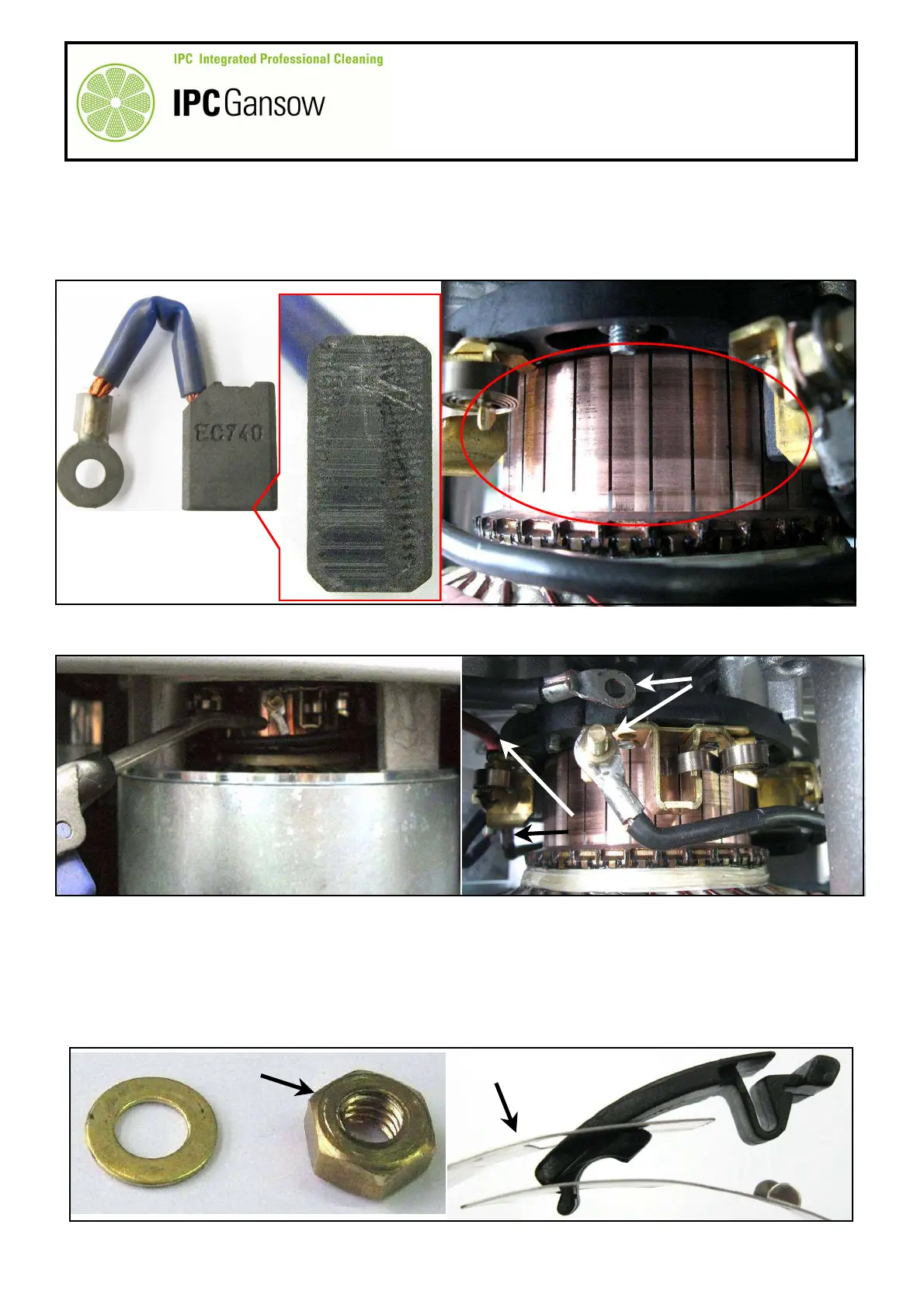

As well as checking the length of the carbon brush D7, also check that it is in good condition, with particular
attention to the surface in contact with the rotor.
29
Check that the brush motor rotors D9 are not excessively or unevenly worn.
30
Clean around the carbon brush mounts and rotor by blowing with a jet of compressed air.
31
Check that all the connecting wires D11 are tightly fastened to their contacts and the nuts are tight.
Reassembly
1
To mount the new carbon brushes, perform the disassembly operations in reverse.
2
Before mounting the new carbon brushes, pay particular attention to the dimensions. The brushes must slide
freely and be the same size apart from the length.
3
Always insert the washer D10 between the eye terminal of the carbon brushes and the nuts D9. Tighten the
nuts with moderation.
4
Replace the protective band D5, paying attention to the mark for positioning the band.
PHOTO 41
D7
D9
PHOTO 43
D5
D7
D11
D11
D
PHOTO 42
