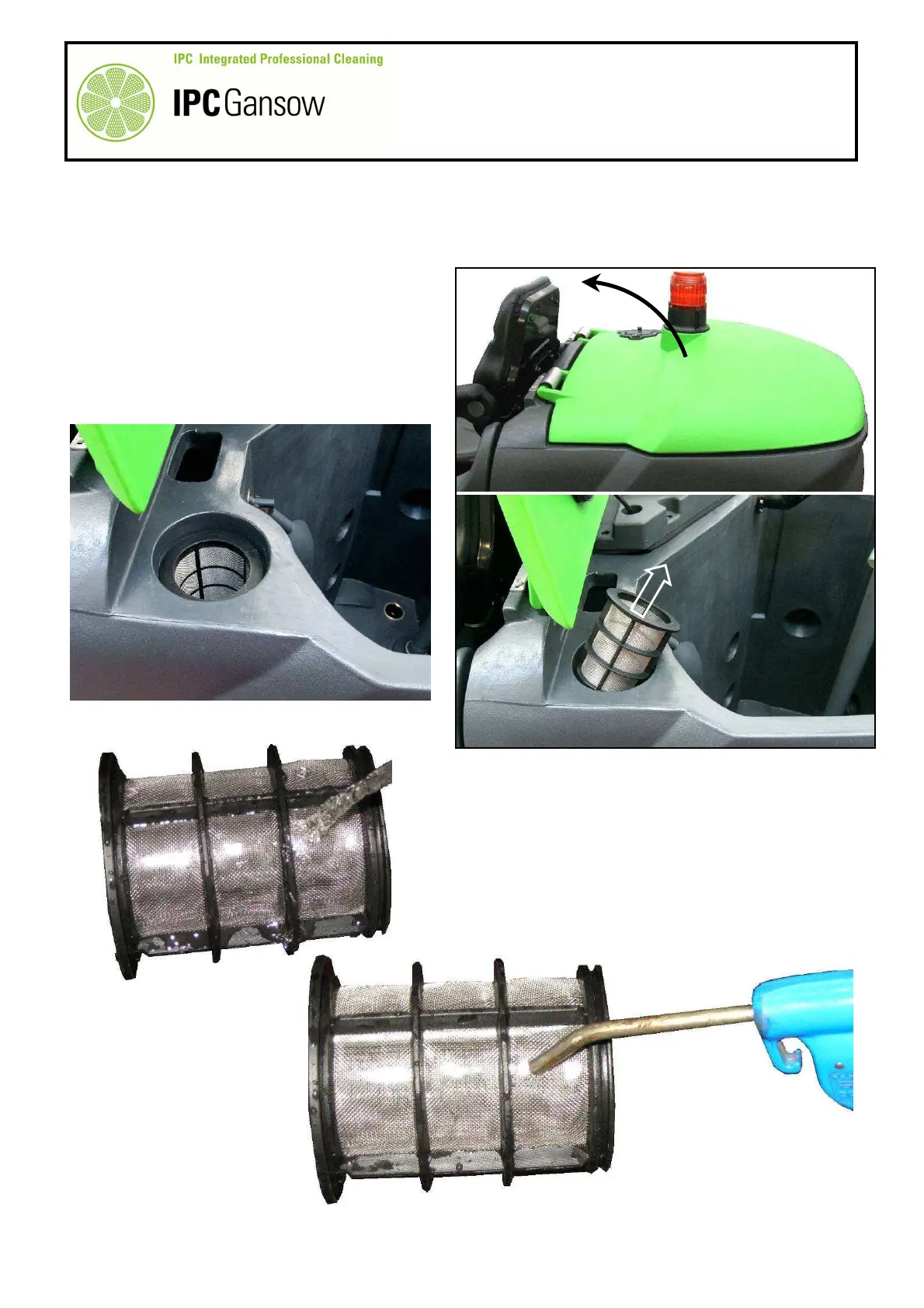

B3.1 Cleaning the filters
Water fill filter
1 Move the machine onto a flat dry area of floor.
2 Turn the machine off and press the pedal to put the parking brake on.
3 Lift the tank lid A to access the clean water filter B.
4 Remove the clean water filter B by pulling
upwards.
5 Clean the filter A with running water, working
from the outside inwards, then blow with a jet of
compressed air, again working from the outside
inwards.
6 Replace the filter B and close the lid A.
B
A
PHOTO 233
A
B
A
PHOTO 234
PHOTO 235
B
PHOTO 236
B
