PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011
62/195
A4.4 Replacing the side flaps
The flaps on the side flap plates are extremely important during the washing phase. They
prevent splashes of detergent from dirtying the part of the floor already washed and dried and,
particularly in the case of the right flap, convey the used detergent from the brushes to the
squeegee. They are the only flaps in constant contact with the floor during washing and are
therefore liable to wear. They are regulated automatically until the frame of the side flap plate
comes in contact with the brush plate, after which they must be replaced.
Replacement is quick and easy.
Disassembly
1
The flaps can be replaced with the head either raised or lowered.
2
Right flap: unscrew the six nuts A (for the 850 version, seven for the 1050) which fasten the stainless steel
flap retainer B and flap together.
3
Left flap: unscrew the six nuts A (for the 850 version, eight for the 1050) which fasten the stainless steel flap
retainer B and flap together.
Reassembly
1
To mount the new flaps perform the disassembly operations in reverse.
2
Pay attention to the position of the new flaps. The bevel C must be facing the front of the machine.
3
Screw up the bolts A without tightening excessively to avoid distorting the rubber of the flap.

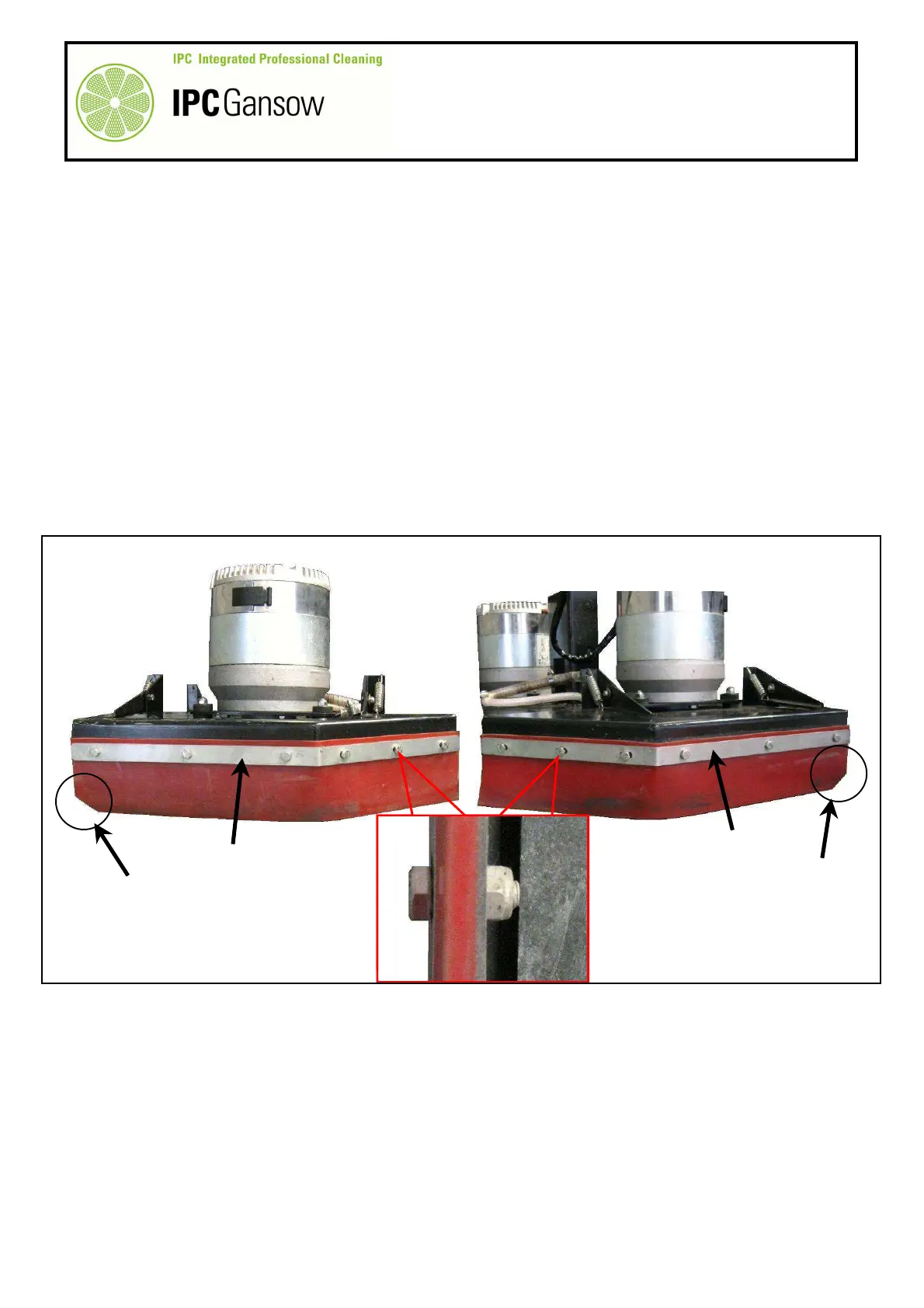

FLAP - RIGHT
FLAP - LEFT
B
B
PHOTO 139
C
C
