B3 DETERGENT HOSES/PUMP CLEANING - FILTERS
The CT 230 is fitted as standard with two water filters. The larger of the two A is located at the
entrance to the detergent tank and filters the water entering the tank during the filling phase.
The smaller filter B is housed in a filter holder and filters the water flowing from the detergent
tank to the water/detergent pump.
The water/detergent pump on the CT 230 enables the flow of water or detergent available for
the brushes during washing to be increased. The pump has a maximum flow of about 11
litres/minute. It is powered directly from the control panel board which also controls pump
speed and the relative flow rate. Together with the solenoid valve, the flow rate can be varied
from a minimum of 2 litres/minute to a maximum of 11 litres/minute.
A B

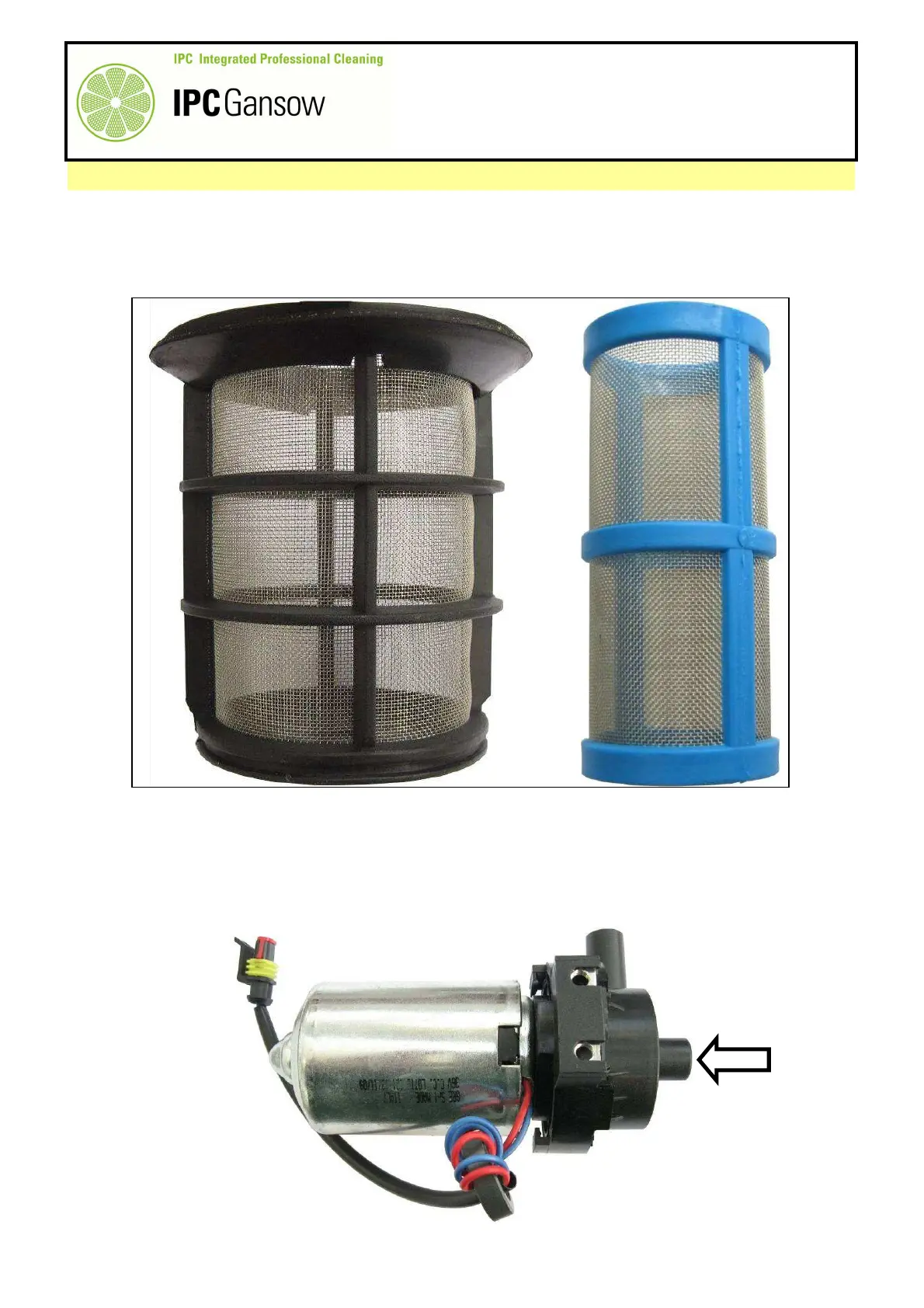

PHOTO 231
PHOTO 232
