IPCGansow CT 230 BT 85 - Drive Circuit Board

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT
Stavale
- date 05/09/2011 136/195

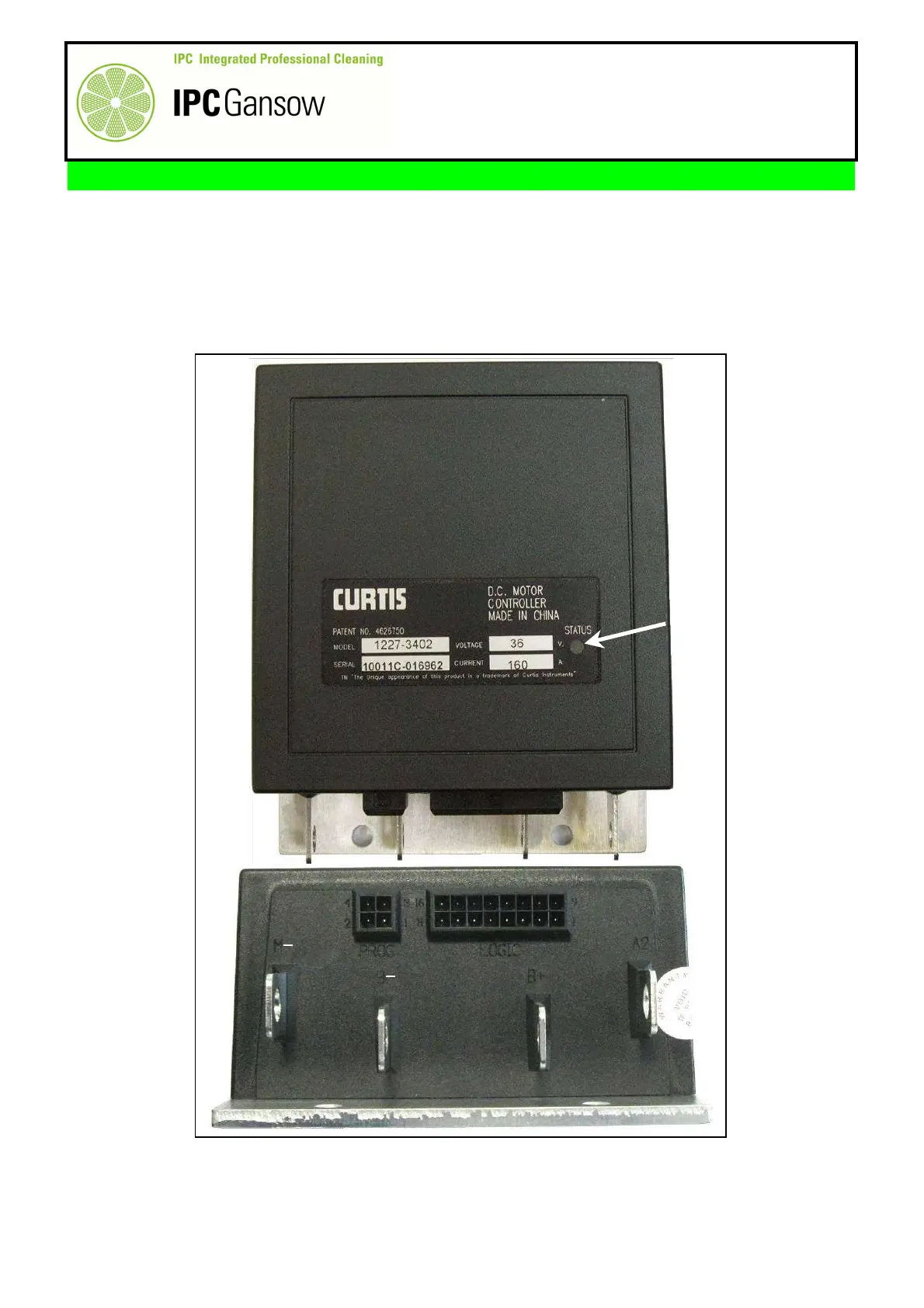

C1 DRIVE CIRCUIT BOARD
The DRIVE control circuit board supplies “current” to the drive motor. As well as to the drive
motor, it is also connected to the accelerator pedal, maximum speed control on the control
panel and the speed-on-bends limitation sensor. It supplies a peak current of up to 160 A and
a continuous current of 70 A. It incorporates a diagnostics system which warns of anomalies
detected by the board through error codes expressed by flashing of the status LED A on the
board and the LED on the control panel.
A
M
A2
B+
B
A2
PROG
LOGIC
4
2
3
1
16
8
9
1
PHOTO 291
