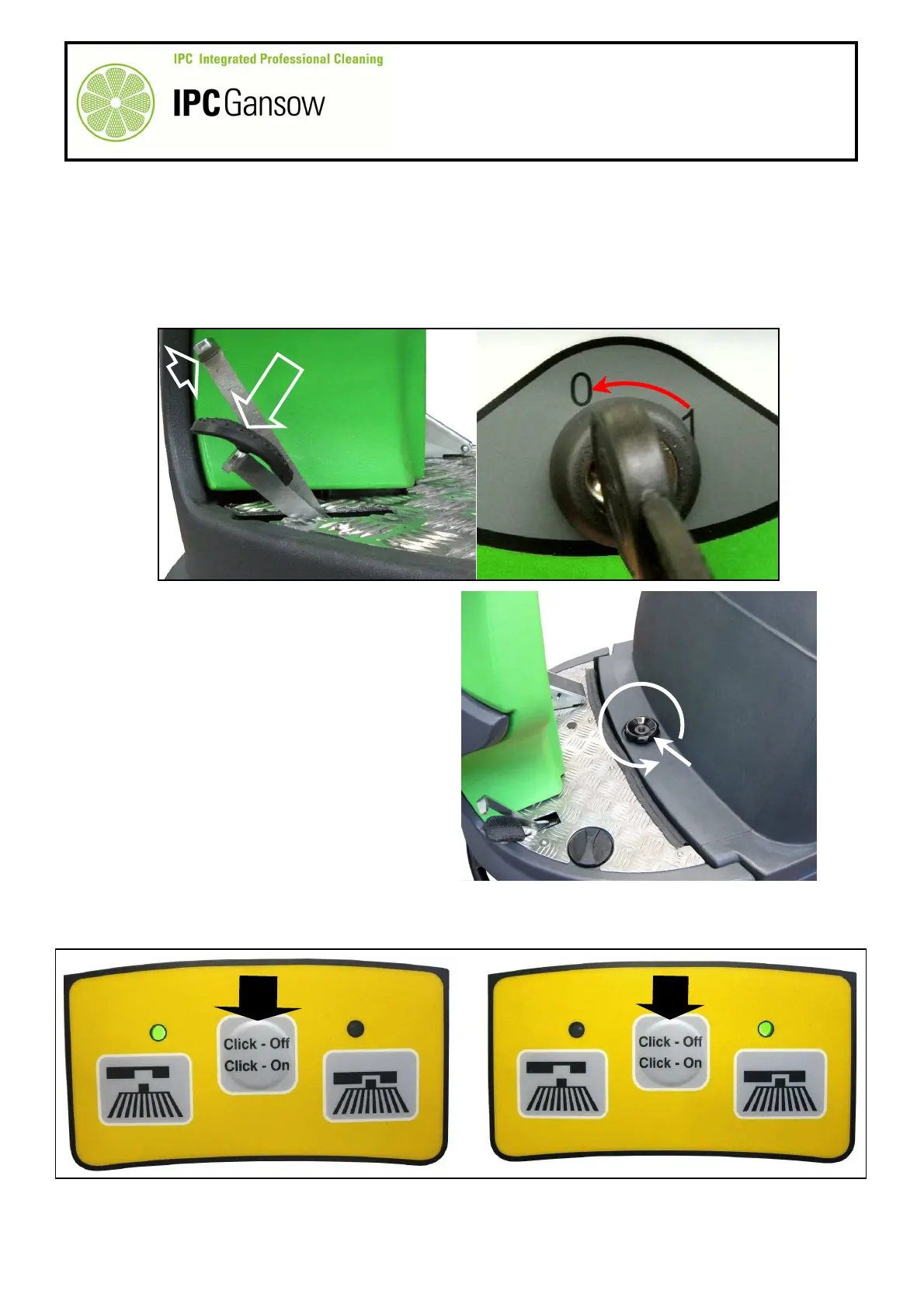

A2.3 Replacing the brush head actuator
Disassembly
1
Go to the tank draining area and empty both tanks.
2
Move the machine to a flat dry surface. The operation can be simplified by using an autolift if available.
3
Put the brake on by pressing pedal A.
4
Turn the ignition key to position "0".
5
Unscrew the knob B by turning it anticlockwise to
release the tanks. Raise the tanks.
6
Switch the machine on by turning the key to
position "1".
7
Press the button C to release the brushes.
8
Remove the brushes from under the head.
9
Wait for the LED D to start flashing indicating that the brushes can be attached. Press button C again to
perform an automatic brush attachment operation without attaching the brushes.
C
D
PHOTO 69
C
PHOTO 68
B
A
PHOTO 67
