B4.2 Replacing the detergent tank float switch

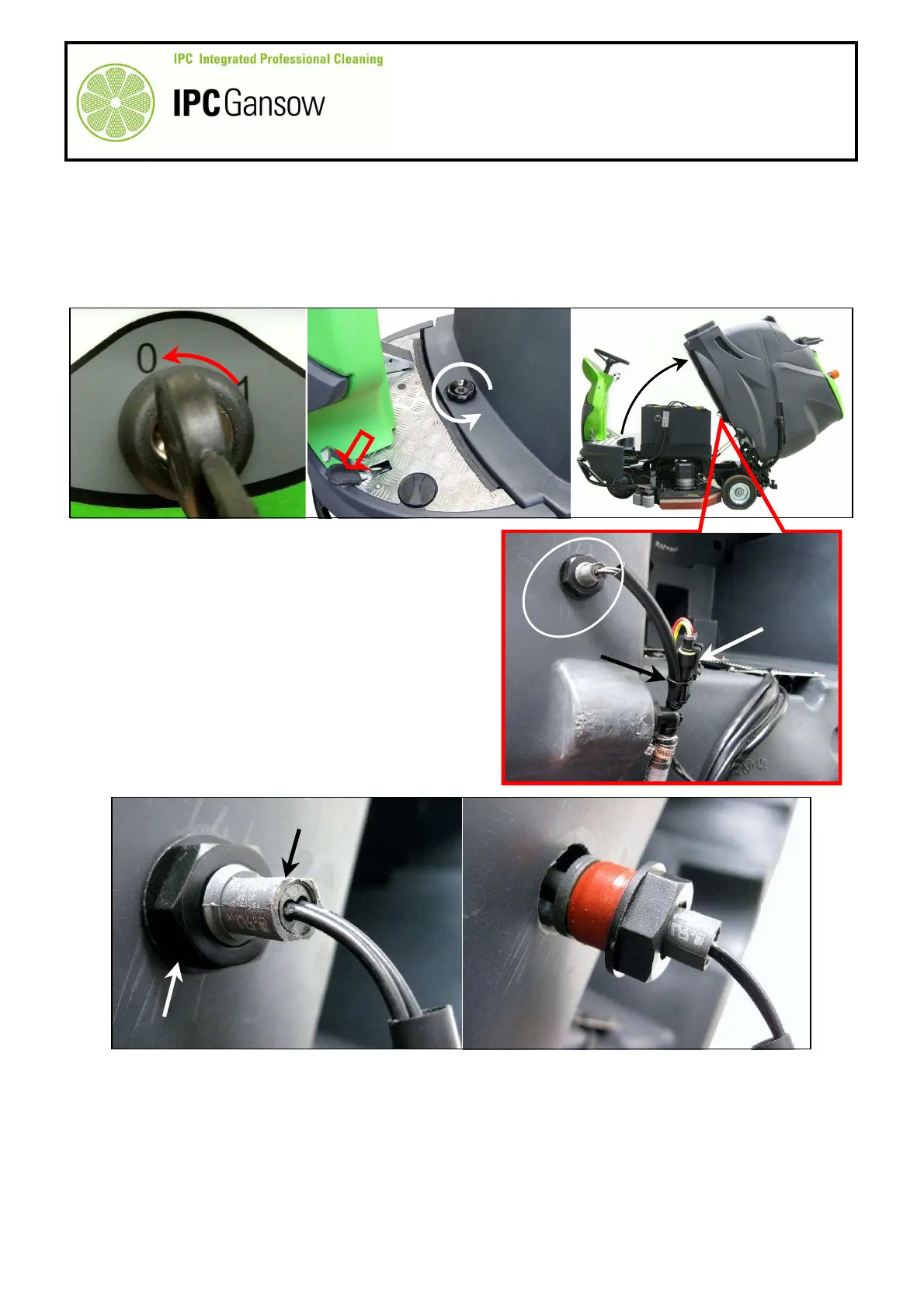

Disassembly
1 Move the machine to the tank draining area and completely empty both tanks.
2 Move the machine onto a flat dry area of floor.
3 Switch the machine off by turning the ignition key A to "0" and press the pedal B to put the parking brake on.
4 Unscrew knob C and lift both tanks to facilitate access to the float switch.
5 Identify the location of the float switch D (sensor)
mounted at the bottom right of the detergent tank.
6 Cut the tie E and disconnect the connector F of the float
switch from the main wiring.
7 Remove the float switch from the tank by holding the
body of the float switch G and unscrewing the nut H.
8 Keep the float switch pulled towards the outside the
tank to avoid the gasket I ending up completely in the
tank.
9 Extract the float switch from the detergent tank and
replace with a new one.
Reassembly
1 Mount the new float switch by performing the disassembly operations in reverse
2 Pay special attention to the seal gasket I on the new float switch.
3 Mount the float switch on the tank by holding the body G and screwing up the nut H. Screw up with
moderation to avoid damaging the plastic thread on the body of the float switch.
I
G
H
H
PHOTO 274
C
A
B
D
E
F
PHOTO 273
