IPCGansow CT 230 BT 85 - Replacing the Dirty Water Tank Float Switch

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011 133/195

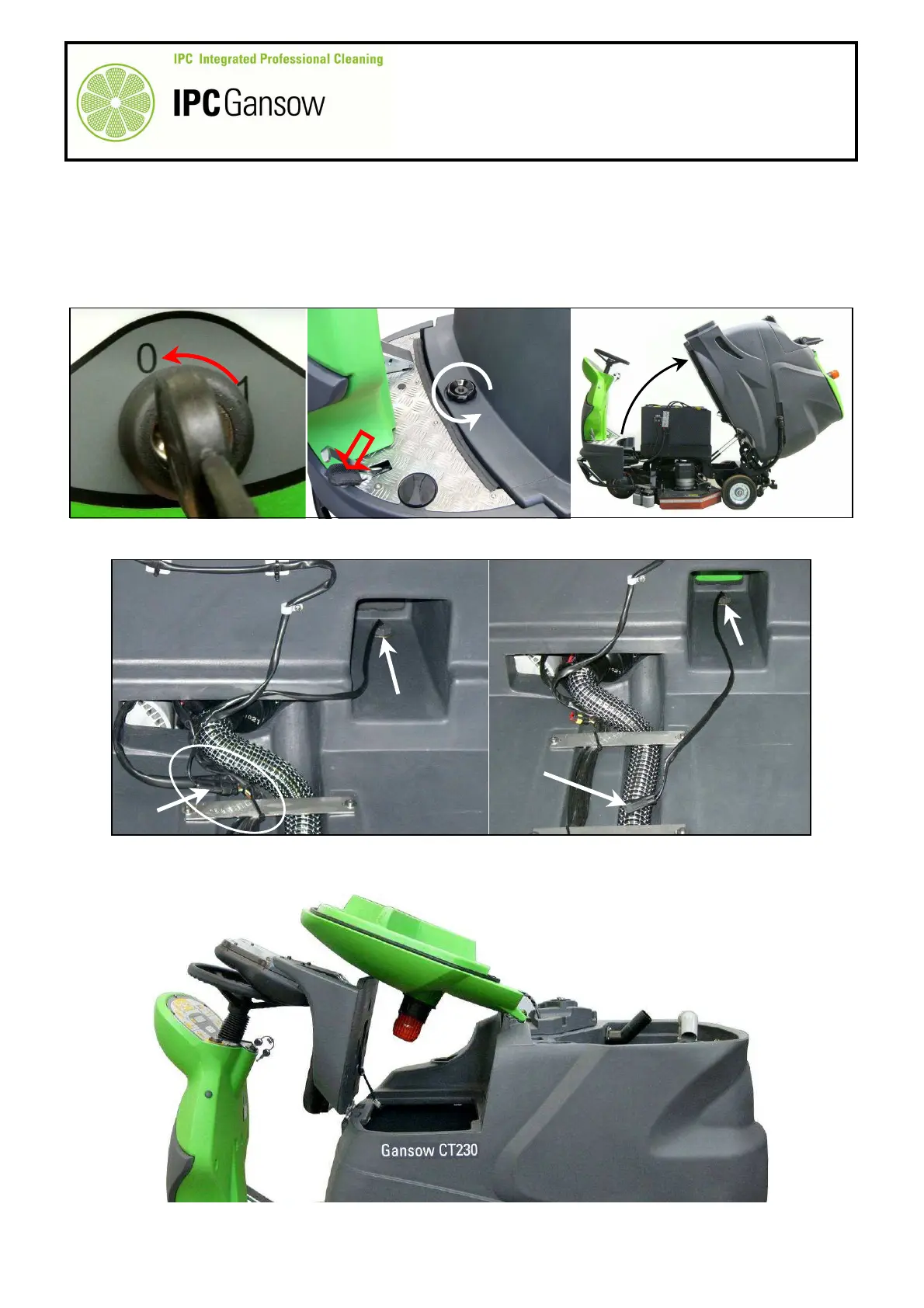

B4.4 Replacing the dirty water tank float switch
Disassembly
1 Move the machine to the tank draining area and completely empty both tanks.
2 Move the machine onto a flat dry area of floor.
3 Switch the machine off by turning the ignition key A to "0" and press the pedal B to put the parking brake on.
4 Unscrew knob C and lift both tanks to facilitate access to the connector D1 of the float switch D.
5 Disconnect the connector D1 and free the wire from any plastic ties fastening it to the others.
6 Return the tanks to the initial position, lift the seat support E and open the lid F of the dirty water tank
completely.
PHOTO 285
C
A
B
PHOTO 286
D1
D1
D
D
E
F
PHOTO 287
