C1.3 Replacing the drive circuit board
Disassembly
1 Move the machine onto a flat dry area of floor.
2 Press the pedal to put the parking brake on.
3 Place the ignition key in the “0” position and disconnect power to the machine from the batteries by means of
the Anderson connector B.
4 Remove the front bumper and panel.
5 Identify the drive circuit board A, disconnect the logic card connector C and the power connections M- / B- /
B+ / A2.
6 Unscrew the two bottom screws D first, followed by the top nut E.
7 Remove the board and replace with a new one.
Reassembly
1 To mount the new functions circuit board perform the disassembly operations in reverse.

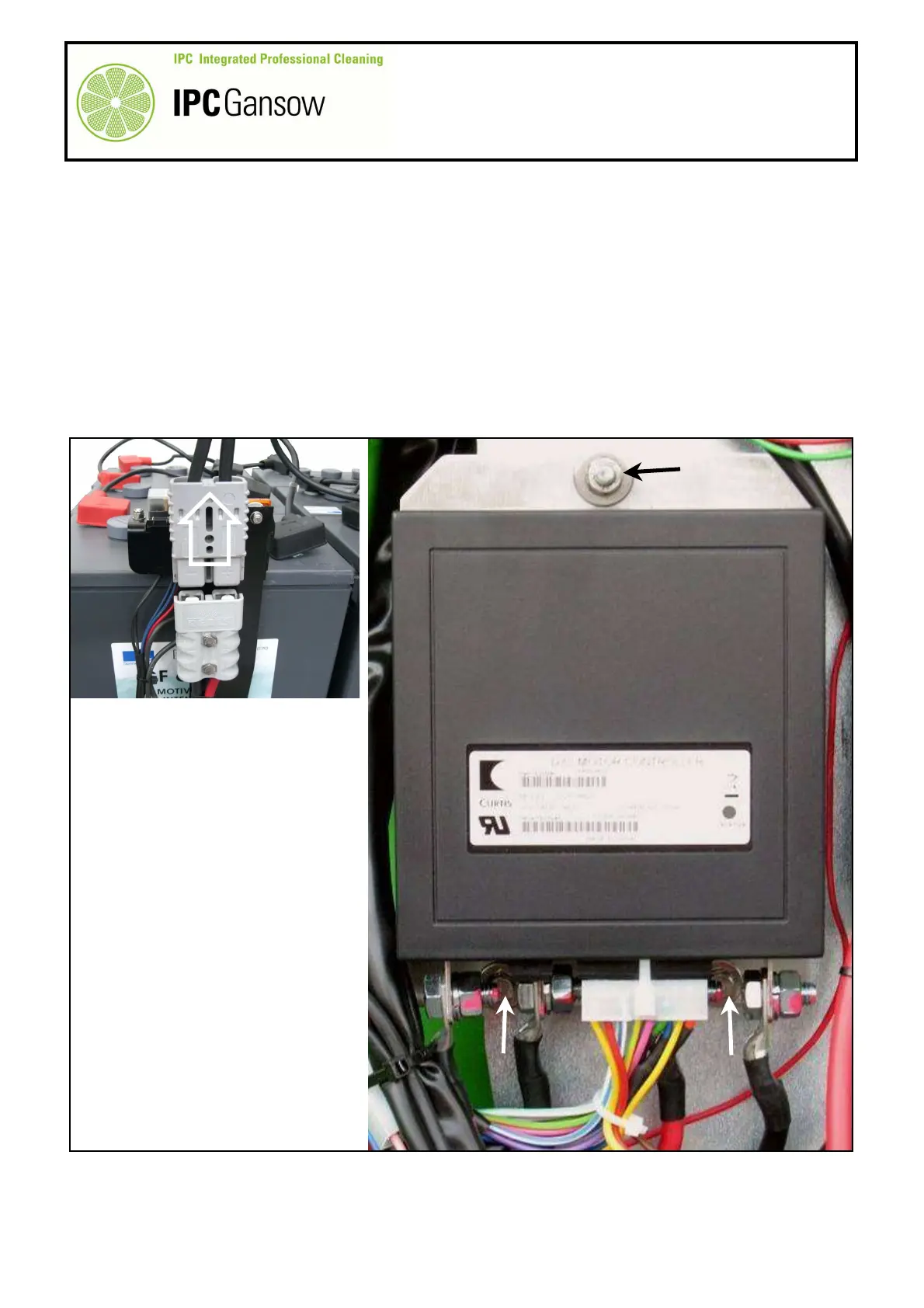

PHOTO 299
B
A
C
E
D D
M-
B-
B+
A2
