PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT
Stavale
- date 05/09/2011
137/195
C1.1 Checking electrical connections and the presence of voltage
Checks
1
Make sure the batteries on the machine are charged.
2
Obtain an accurate digital multimeter (tester).
3
Move the machine onto a flat dry area of floor.
4
Turn the ignition key to position "0".
5
Remove the front panel as described in paragraph A1.2.
6
With a digital multimeter, read the value V1 in volts at the "+" and "-" poles of the batteries.
7
Place the black probe of the digital multimeter on the negative insulator A and the red probe on the power
contact B1 of contactor B. Read the voltage V2 between the power contact B1 of the contactor B
corresponding to the drive and the negative insulator A; the voltage must be equal to or very slightly lower
than the value V1.

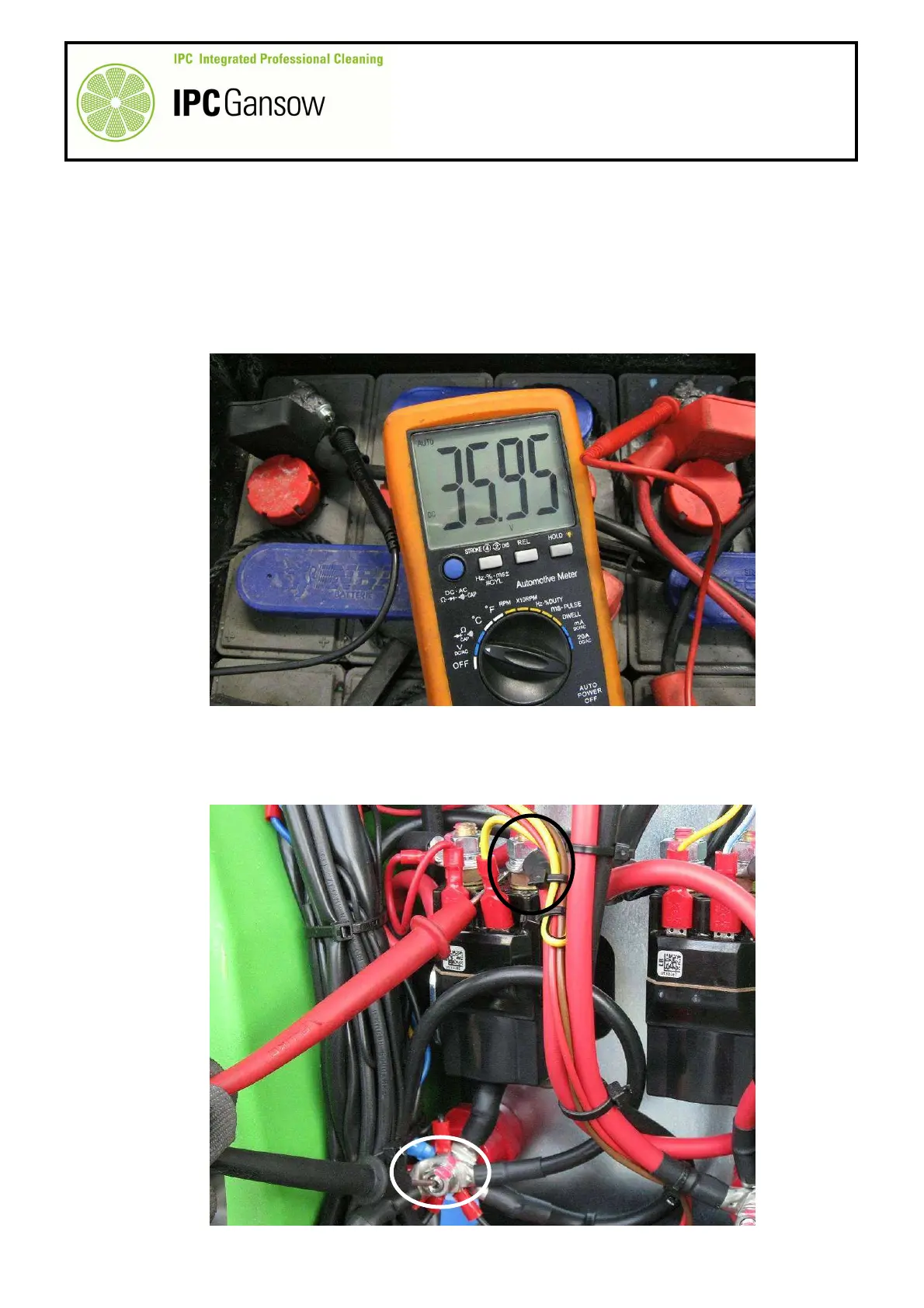

PHOTO 292
+
V1
V2
PHOTO 293
B
B1
A
