PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT
Stavale
- date 05/09/2011
168/195

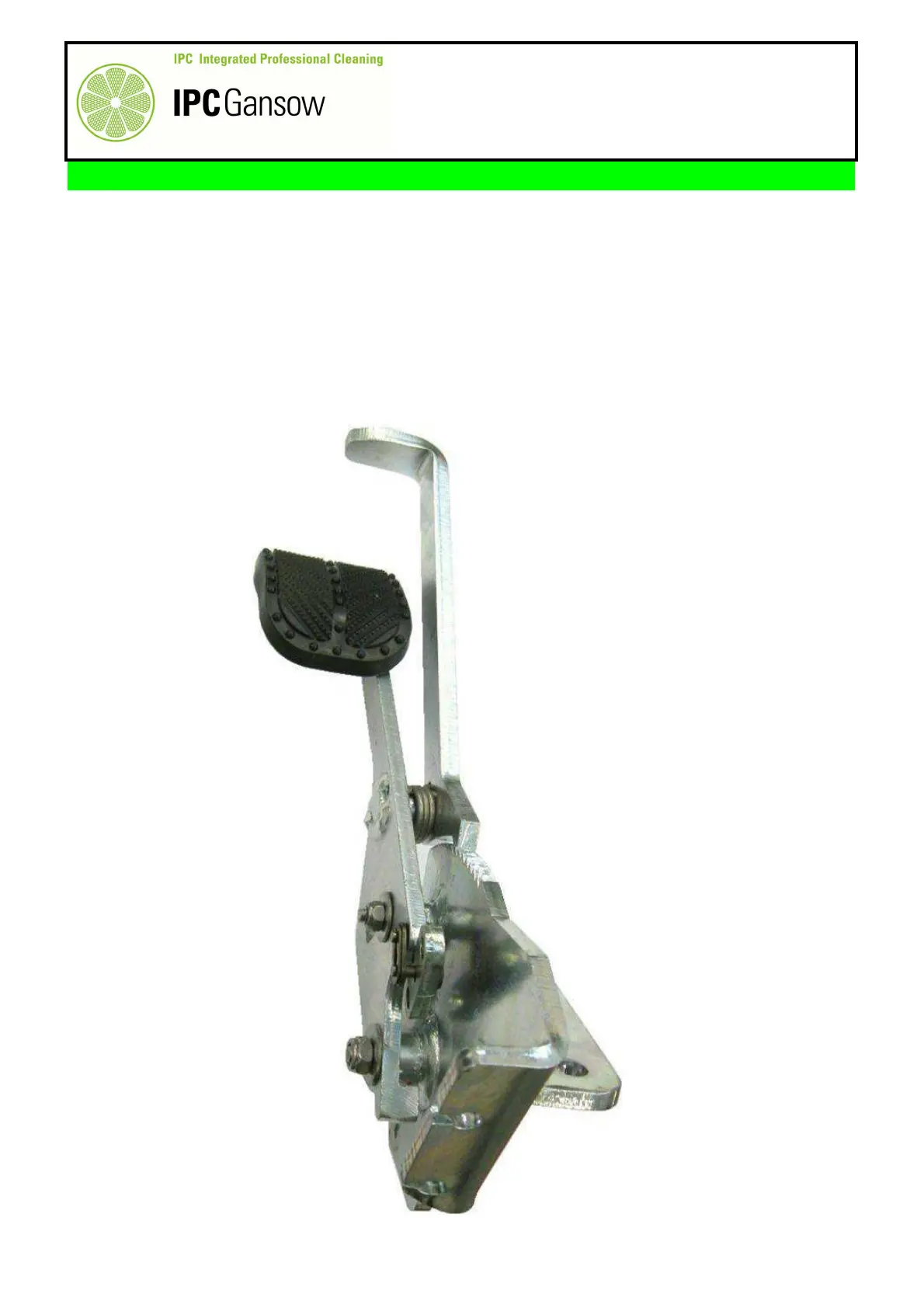

C4 BRAKE PEDAL
The brake pedal works by braking the rear wheels. The command is mechanical (double cable)
and must therefore be checked and if necessary adjusted to ensure efficient operation. A
mechanical braking system enables the brake pedal to be blocked, providing a parking
function.
The brake is fitted with a micro switch which communicates activation of the brake to the
control panel board which after about 10 seconds gives an acoustic and visual warning (buzzer
and display of the message “PARKING BRAKE”) that the brake has been activated, to avoid
attempts to move the machine while the brake is on. It also disables operation of the drive
board to prevent it overheating.
PHOTO 351
