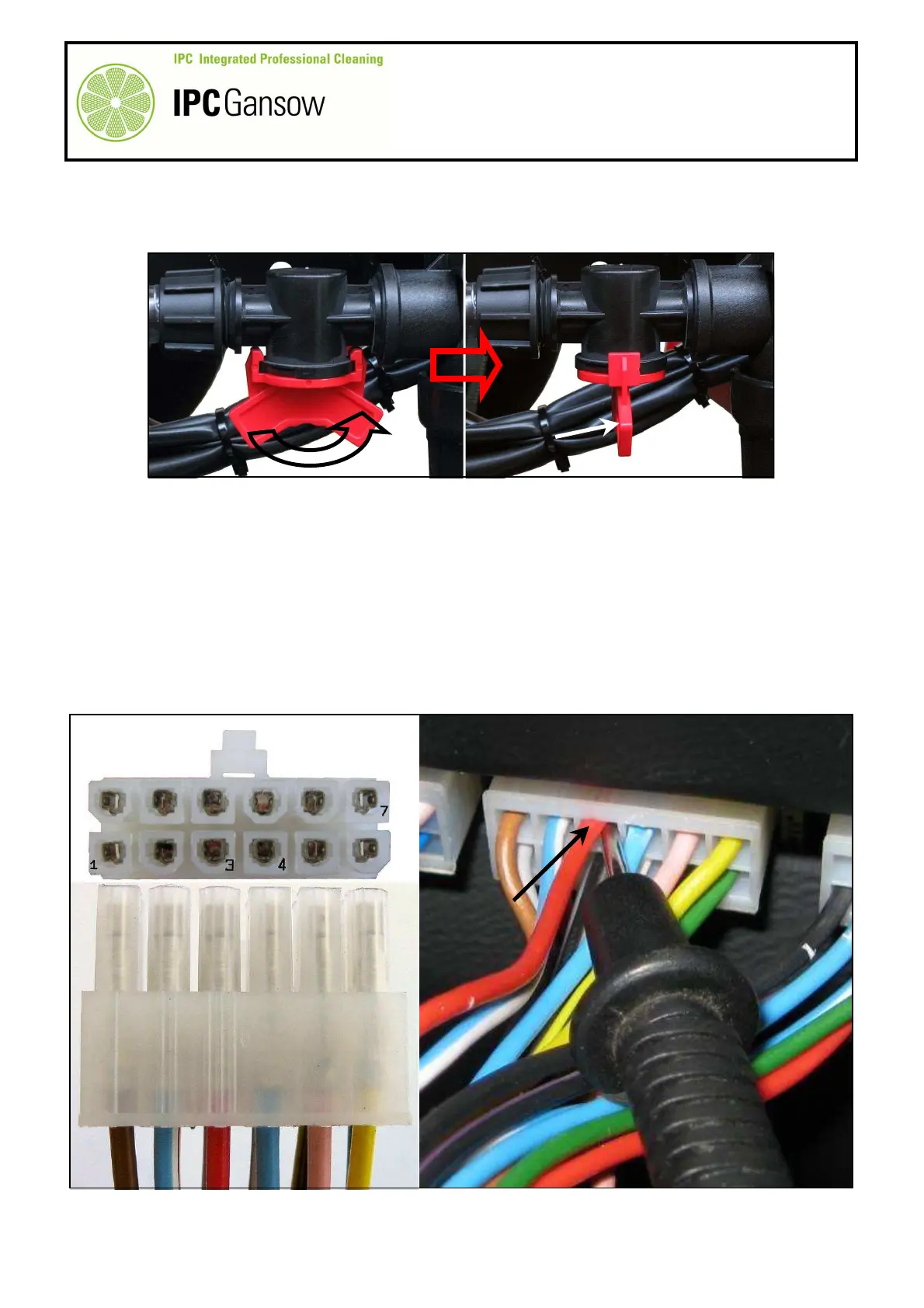

9 Turn the lever E1 of the tap E through 90° (degrees) to shut off the flow of wate r to the brushes.
10 Obtain a digital multimeter with probes and position it on volts (V) DC.
11 First, check the output voltage of the solenoid valve.
Checking operation of the solenoid valve.
12 On the male connector D, identify the pin D3 with the red wire.
13 Insert the negative probe F of the digital multimeter (black) between the wire and the connector D in pin D3.
