A1 CHECKING THE CURRENT DRAW OF THE BRUSH MOTORS
The CT 230 is available in two sizes with disk heads of different widths, the BT 85 with a
cleaning strip of 850 mm and the BT 105 with a cleaning strip of 1050 mm.
Apart from the size, the two heads also differ in the type of motor used.
The BT 85 version mounts a 400 W motor (the same motor as on the CT 160) with free cooling,
while the BT 105 version mounts a 500 W motor with forced cooling by means of a fan in the
top part of the motor itself protected by a casing which also serves as an air conveyor.

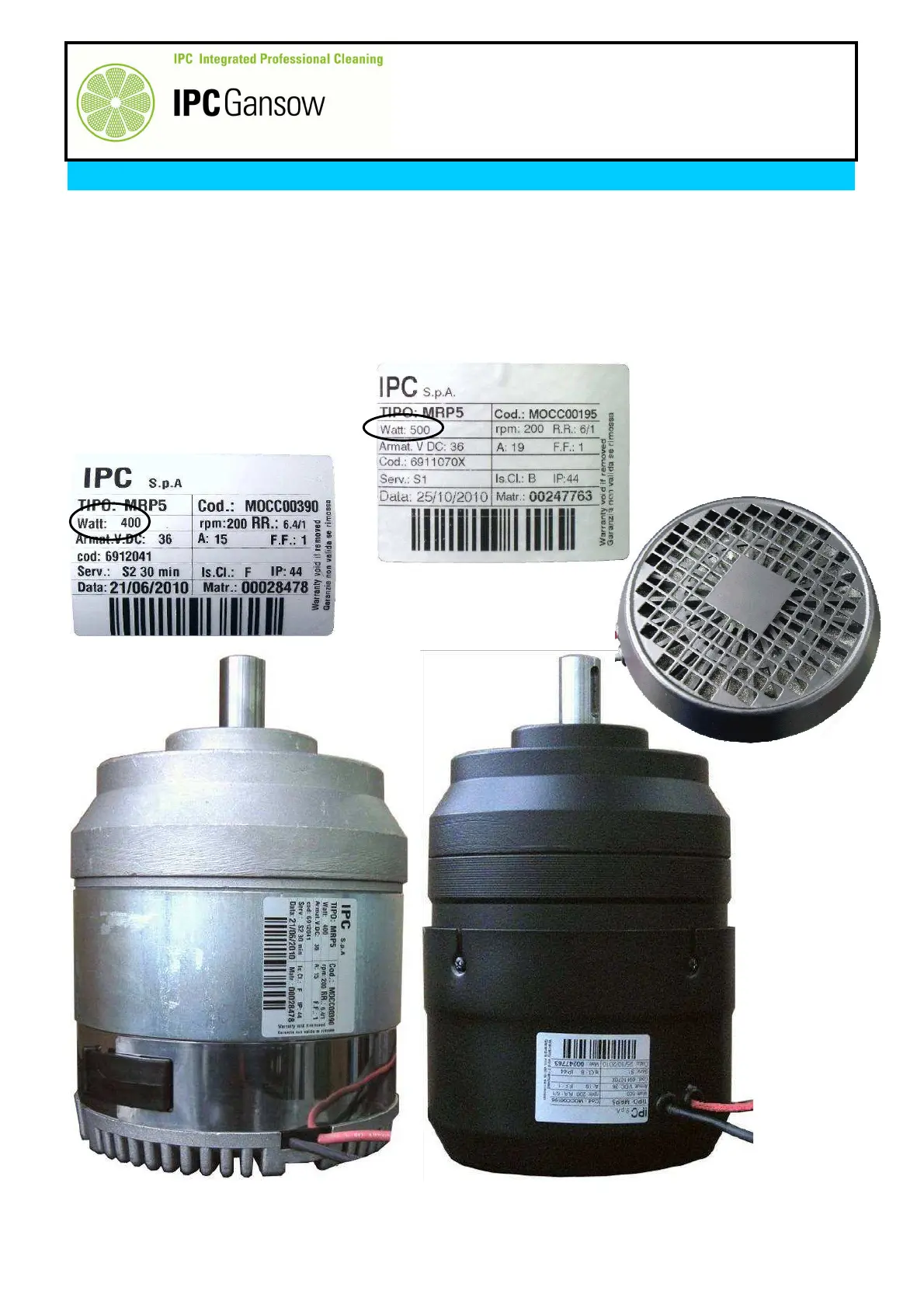

BT 85 BT 105
PHOTO 1
