D3 IMPORTANT ELECTRICAL COMPONENTS

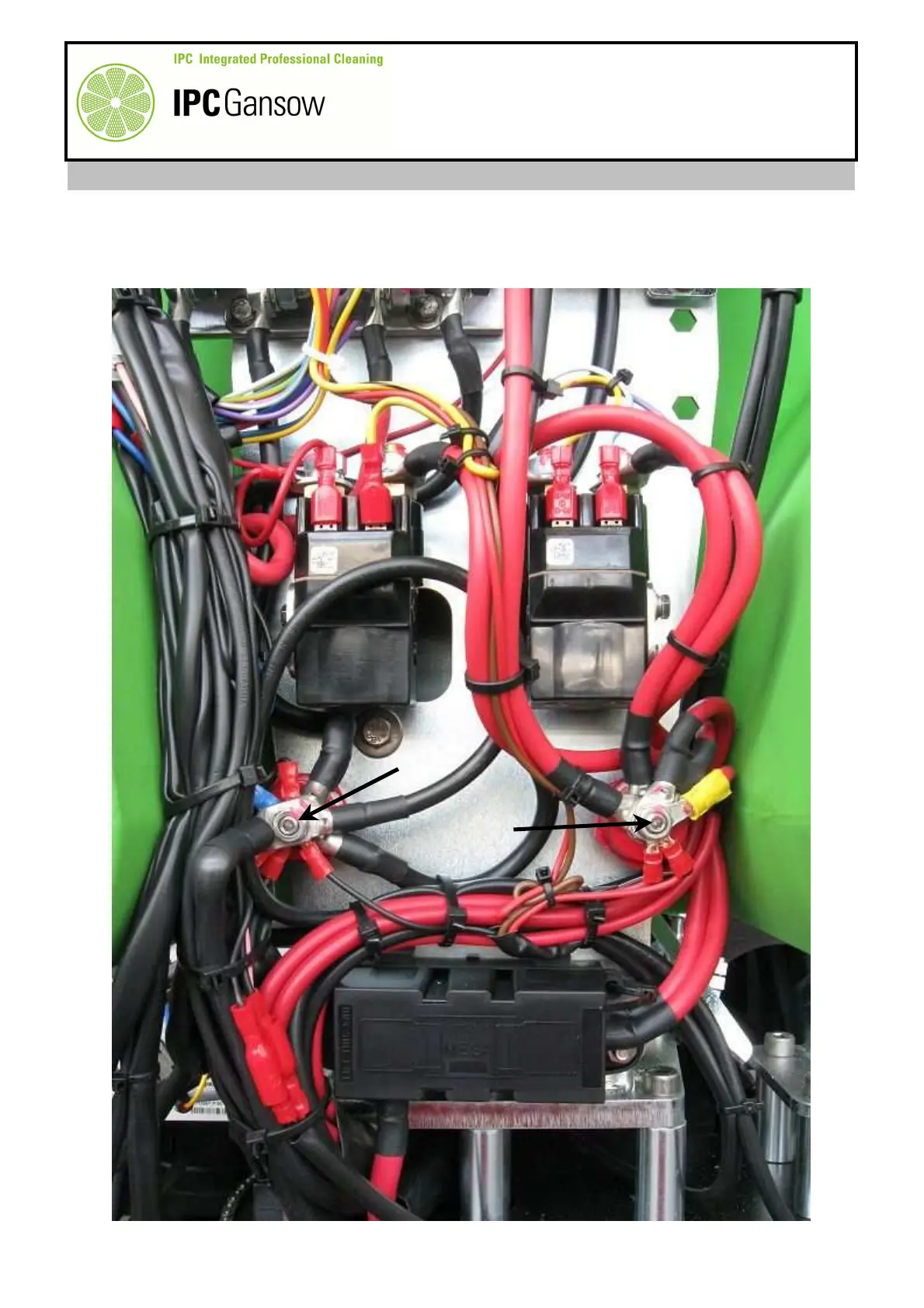

The other internal components in the machine’s electrical circuit include: functions contactor
TL1 and drive contactor TL2, fuse holder and main 150 Amp fuse F1 and two isolators,
positive A and negative B.
PHOTO 369
TL1 TL2
F1 150A
A
B
