IPCGansow CT 230 BT 85 - Replacing the Rubber Tyred Motor Wheel Ring

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT
Stavale
- date 05/09/2011 154/195

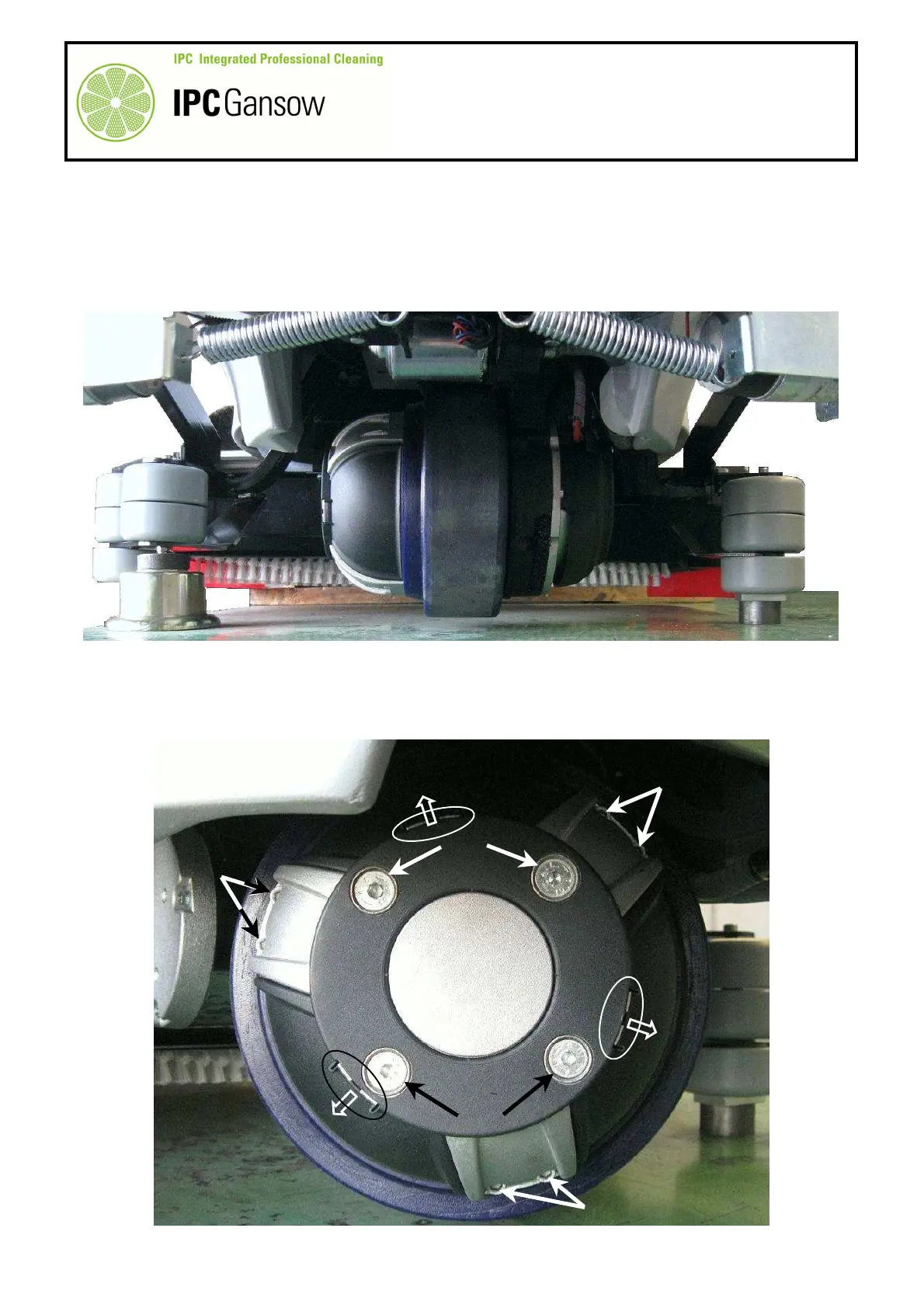

C2.3 Replacing the rubber tyred motor wheel ring
Disassembly
1 Move the machine onto a flat dry area of floor.
2 Switch the machine off by turning the ignition key to position "0".
3 Brake the machine by putting the parking brake on or wedges under the rear wheels.
4 Raise the front motor wheel A using a hydraulic jack.
5 Remove the plastic protection A1 using a flat screwdriver.
6 Unscrew the four (4) central countersunk screws A2, take care as they are screwed up to the hub with
thread lock.
7 Unscrew the six (6) peripheral screws A3 fixing the rubber tyred ring A4 to the centring coupling A5.
A1
A4
PHOTO 320
A5
A1
A2
A2
A3
A3
A3
PHOTO 321
