IPCGansow CT 230 BT 85 - Replacing the Accelerator Pedal

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT
Stavale
- date 05/09/2011 163/195

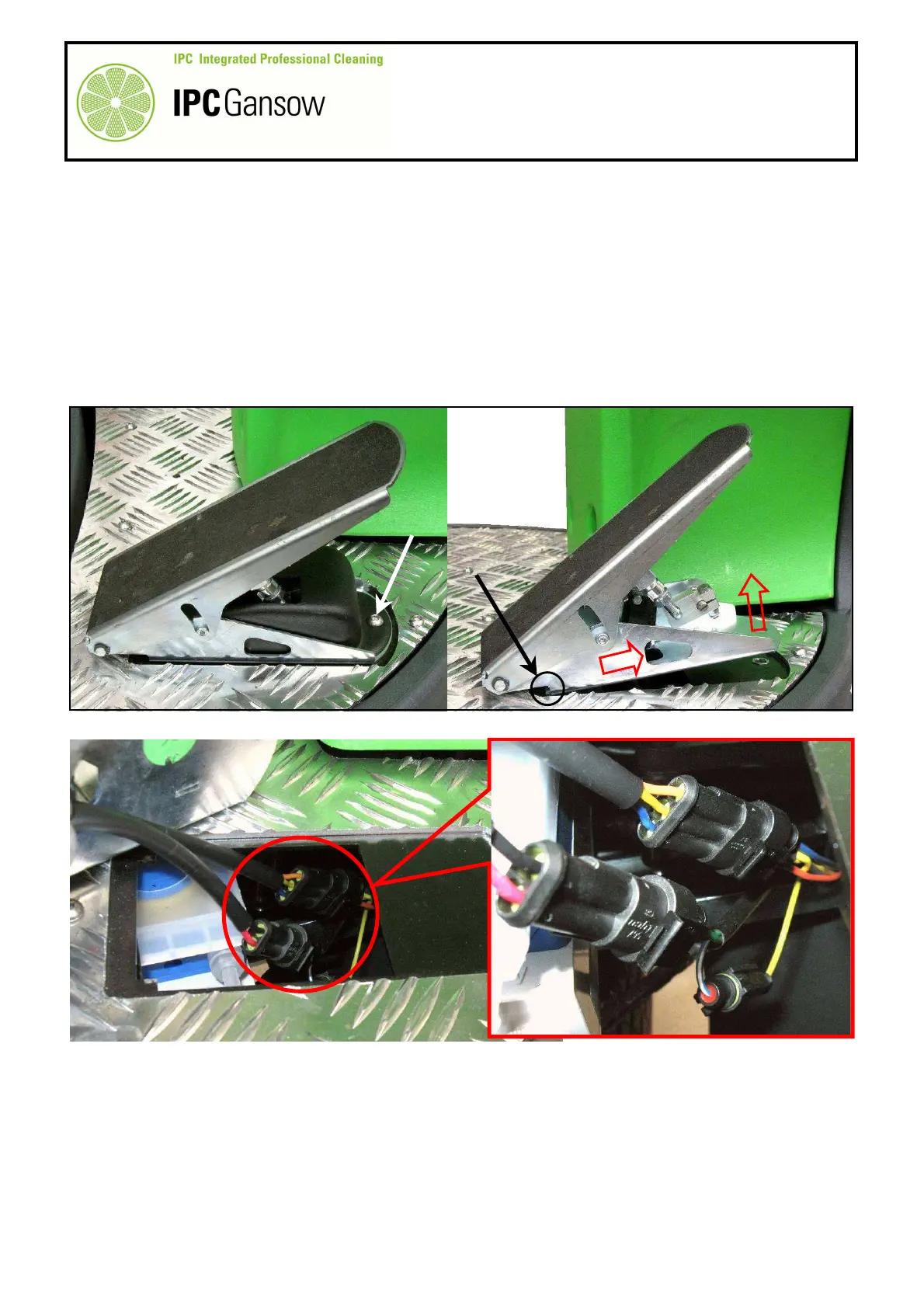

C3.1 Replacing the accelerator pedal
Disassembly
1 Move the machine onto a flat dry area of floor.
2 Switch the machine off by turning the ignition key to position "0" and put the parking brake on.
3 Unscrew the screw A fixing the pedal B to the footplate.
4 Remove the plastic protection C.
5 Lift and at the same time pull the accelerator pedal to release it from point D of the footplate.
6 Disconnect the watertight connectors E and F to disconnect the accelerator pedal B.
Reassembly
1 To mount the new pedal, complete the disassembly operations in reverse.
D
C
A
B
PHOTO 338
B
E
F
PHOTO 339
