B1.2 Replacing the suction motor
Disassembly
1
Move the machine to the tank draining area and completely empty both tanks.
2
Move the machine onto a flat dry area of floor.
3

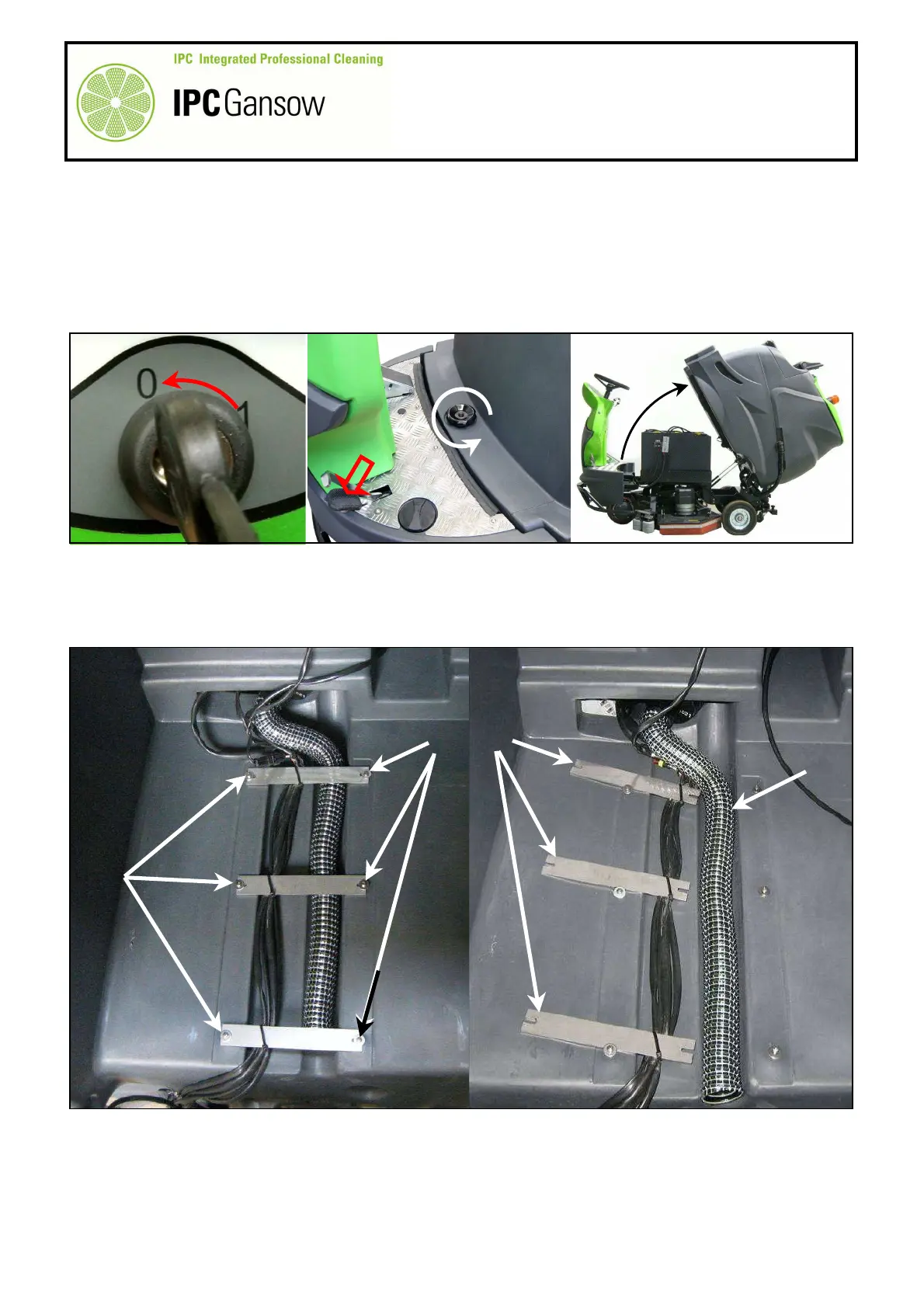

Switch the machine off by turning the ignition key A to "0" and press the pedal B to put the parking brake on.
4
Unscrew knob C and lift both tanks to facilitate access to the air exhaust hose D.
5
To remove the suction motor support from the tank, first unscrew the six screws E and move the brackets F
which hold the drain hose D in place.
6
Then remove the suction motor support G from the tank.
C
A
B
PHOTO 173
E
E F
D
