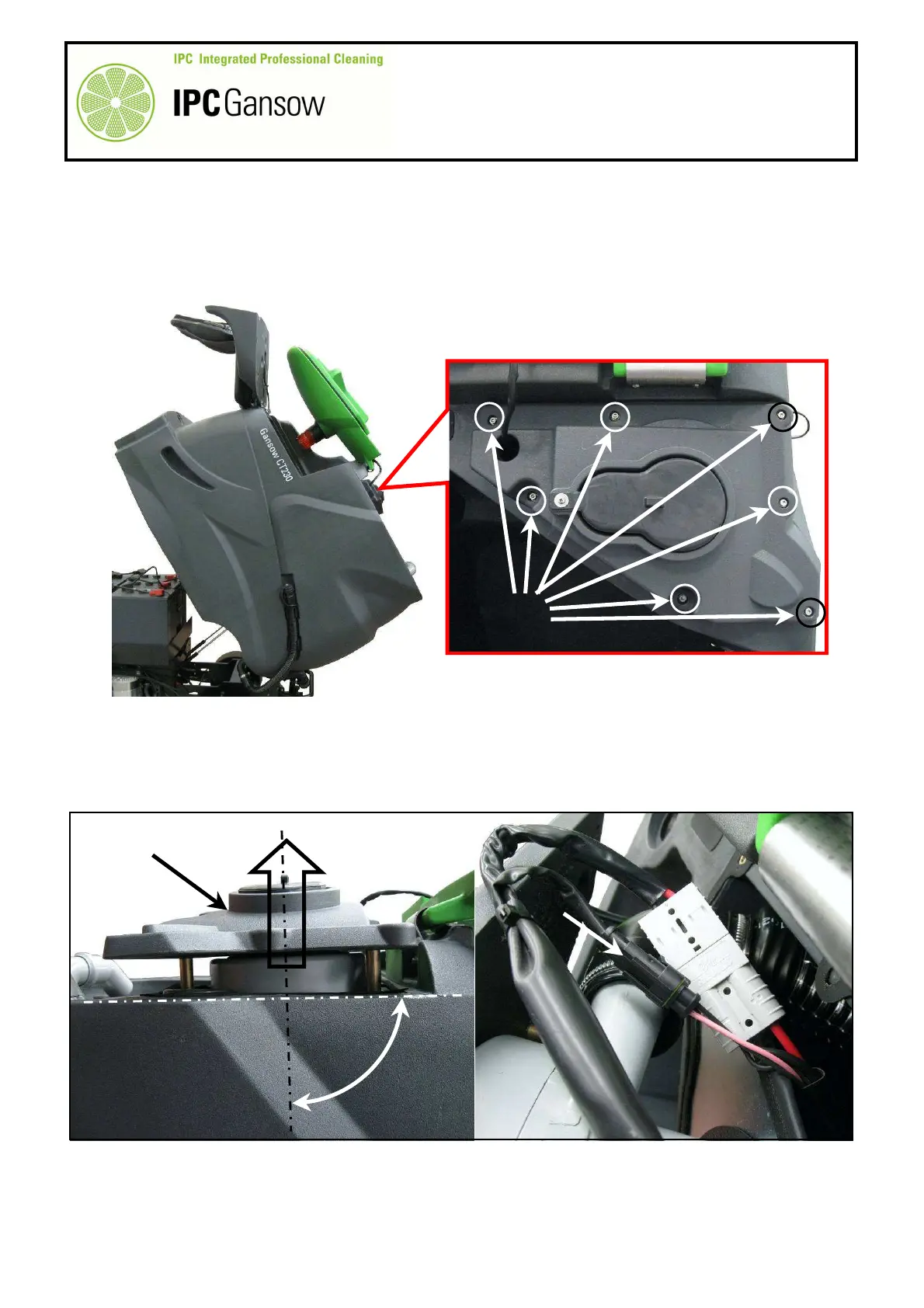

Lift the seat support H and lid I of the dirty water tank to facilitate access to the suction motor support G.
8
Unscrew the seven grub screws fixing the suction motor support to the dirty water tank and remove them.
9
Pay attention to the washers mounted with the screws G1.
10
Lift the filter support G slowly and at right angles to the work surface.
11
Disconnect the power connector G2 and the command and control connector G3.
H
I
G
PHOTO 174
G1
90°
PHOTO 175
G
G3
G2
