PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011
81/195
12

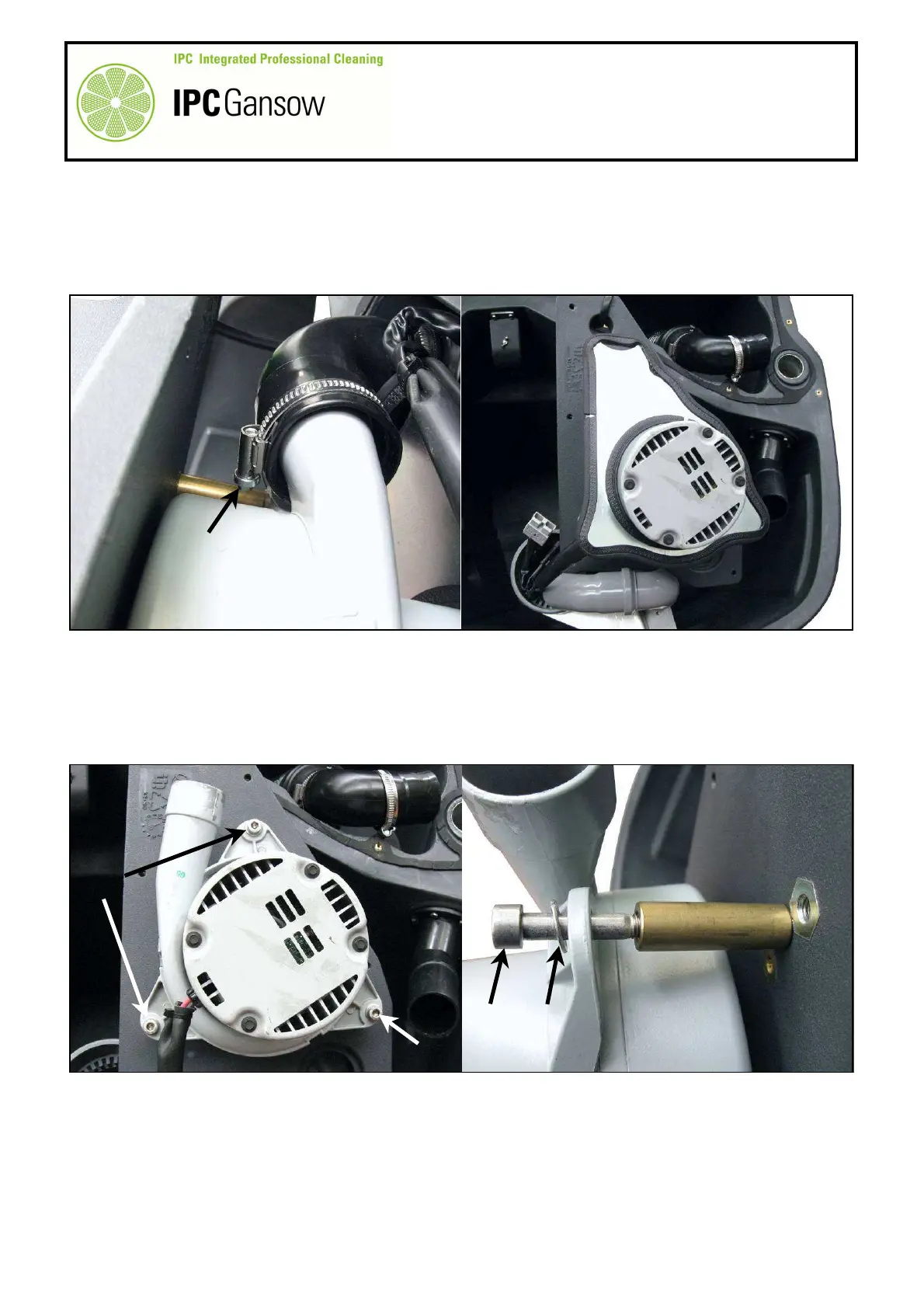

Unscrew the metal band G4 and remove the air exhaust hose G5 from the suction motor pipe.
13
Remove the heat protection G6 from the suction motor L.
14
Unscrew the three screws L1 fixing the suction motor L to the filter support G, paying attention to the three
stand-offs L2 and the three Grover washers L3.
15
Unscrew the top screw L1 last, holding the suction motor L with one hand.
16
Replace the suction motor L with a new one.
G6
L
PHOTO 176
G4
G5
L1
L1
L1
L2
L3
PHOTO 177
L
