PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011
82/195
Reassembly
1

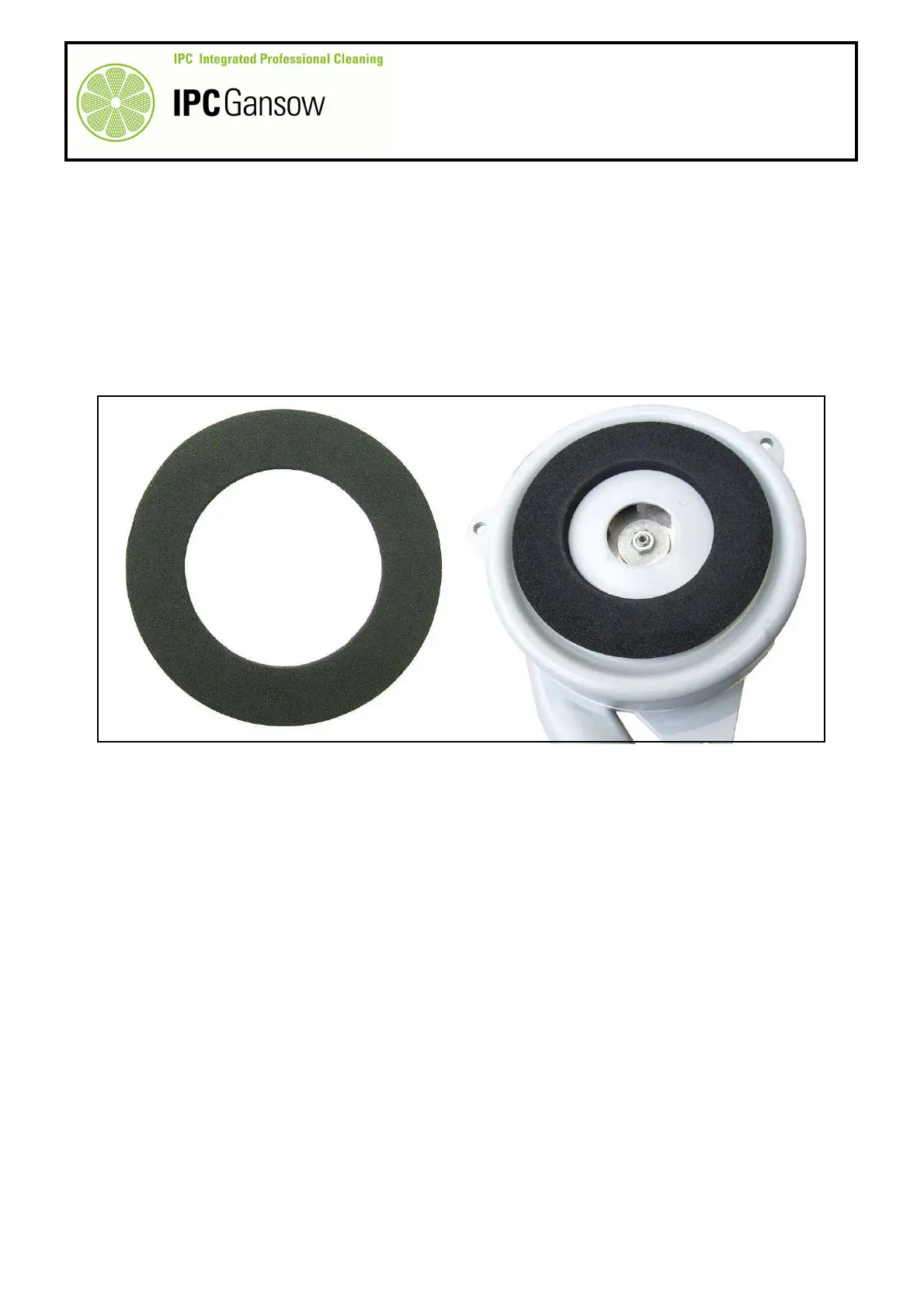

Before mounting the new suction motor, remember to mount the gasket L4.
2
Position the new gasket L4 as centrally as possible with respect to the motor intake hole.
It is very important to mount the gasket L4. As well as making the intake airtight, it
also acoustically insulates the suction motor from the support.
3
To mount the new motor, perform the disassembly operations in reverse.
4
When mounting, respect the position of the air exhaust hose.
5
Screw up the screws L1 with a maximum torque of 15 Nm (~ 1.5 kgm).
6
Replace the heat protection G6 on the suction motor.
You are recommended not to remove the heat protection G6 around the suction
motor. As well as helping reduce noise during the suction phase, it also separates
the temperature on the impeller side from the temperature on the electronic side,
thus avoiding the risk of triggering the suction motor thermal cutout.
L4
L4
L
PHOTO 178
