10

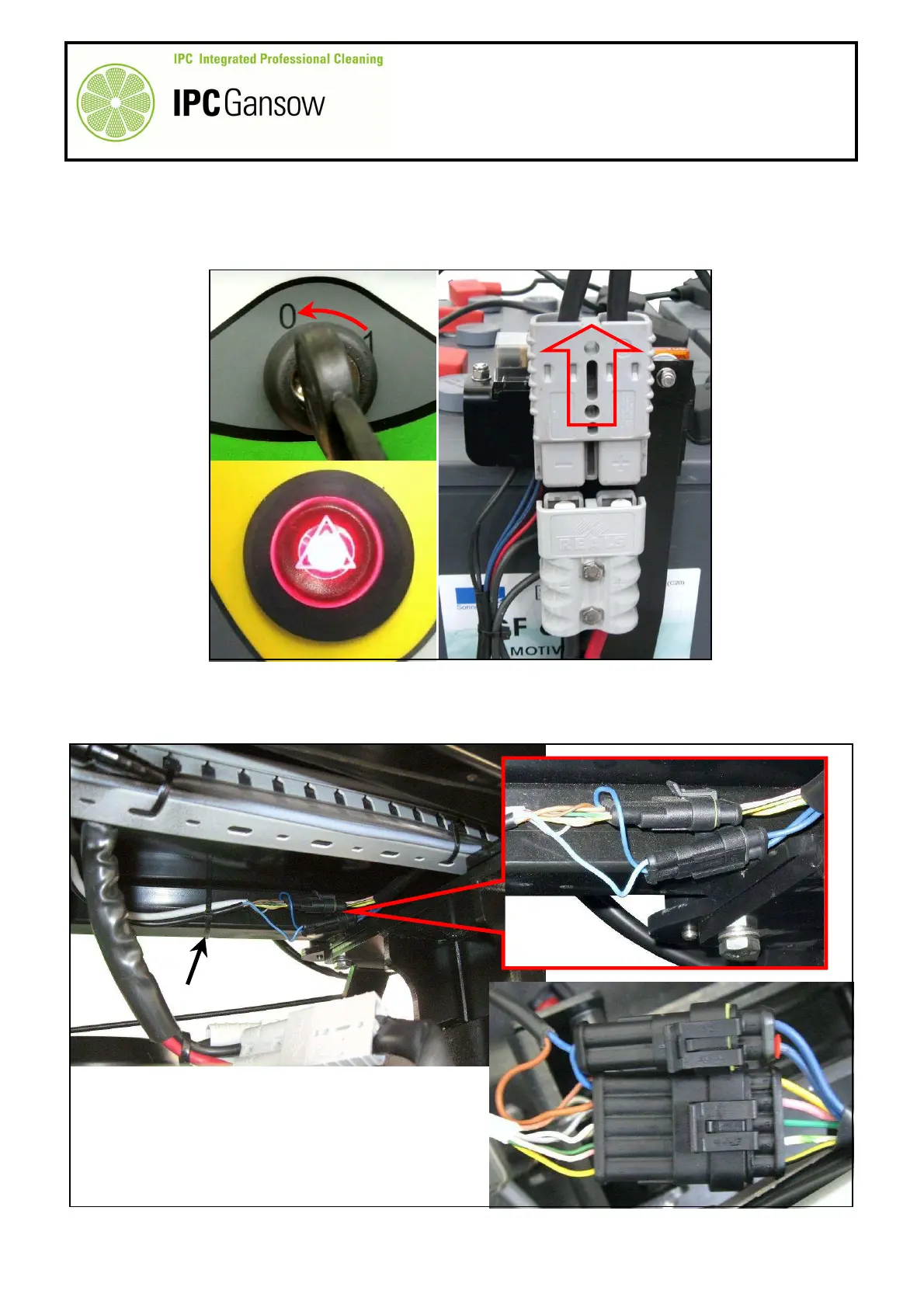

With the head fully lowered, press the emergency button E to block the position and avoid the head returning
to the standby position.
11
Disconnect the batteries by means of the connector F, turn the ignition key to position “0”, restore the
emergency button E to the original position.
12
Disconnect power to the electromechanical actuator G by means of the watertight connectors G1 and G2 on
the main machine wiring, located on the left of the machine under the battery container.
13
Cut and remove the plastic tie H fastening the actuator wire G to the machine chassis.
G1
G2
G1
G2
PHOTO 71
H
PHOTO 70
