IPCGansow CT 230 BT 85 - Page 156

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT
Stavale
- date 05/09/2011 145/195

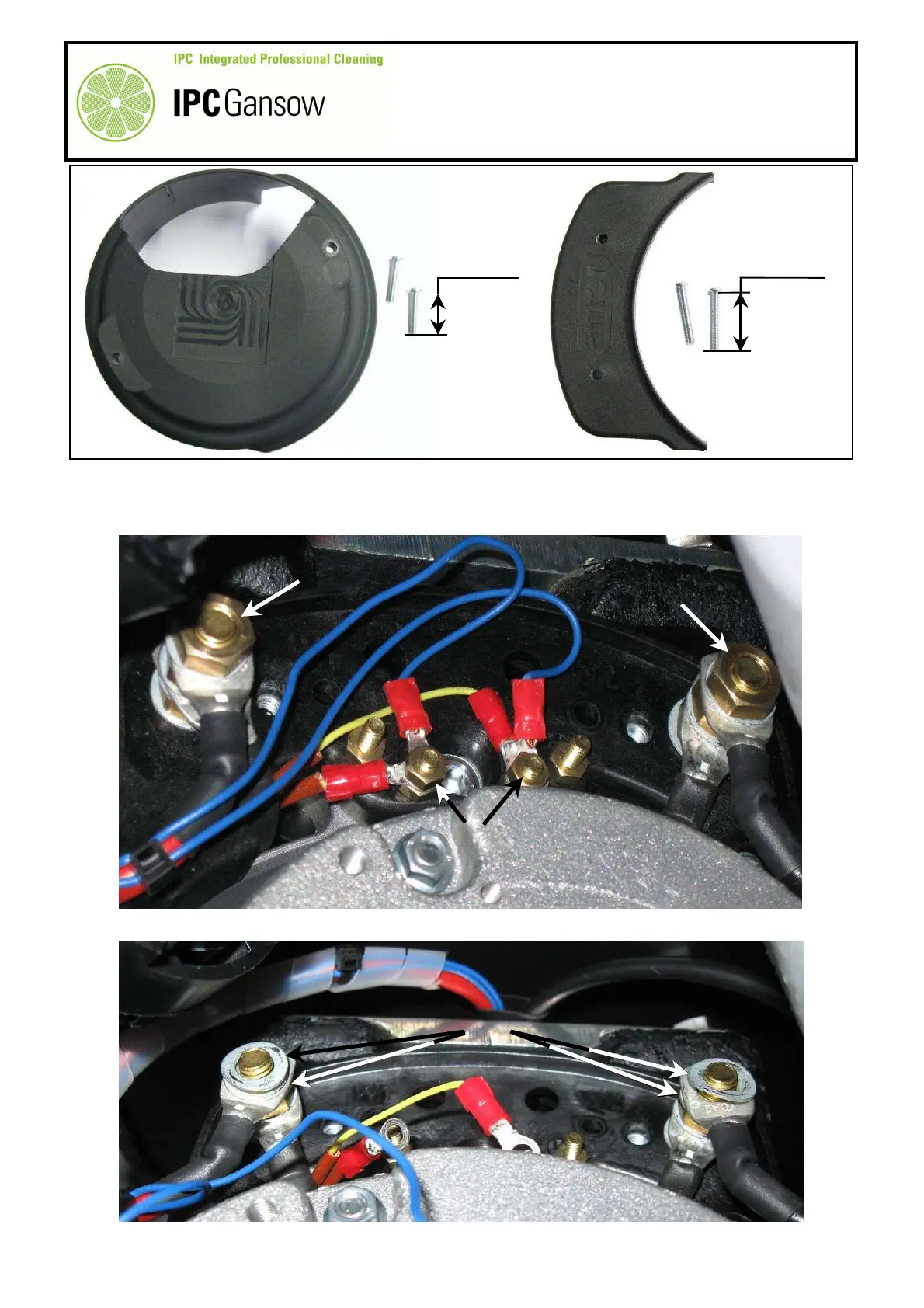

8 Electrically disconnect the motor wheel B by unscrewing the two nuts B1 connecting the thermal cutout of
the motor to the machine wiring, the nut B2 connecting the positive wire (red) and the nut B3 connecting the
negative wire (black) to the motor wheel B.
9 Pay attention to the four corrugated washers B4 mounted behind and in front of the power wires.
PHOTO 302
35 mm
30 mm
C
D
D1
C1
192
B
B1
B2
B3
PHOTO 303
B4
PHOTO 304
