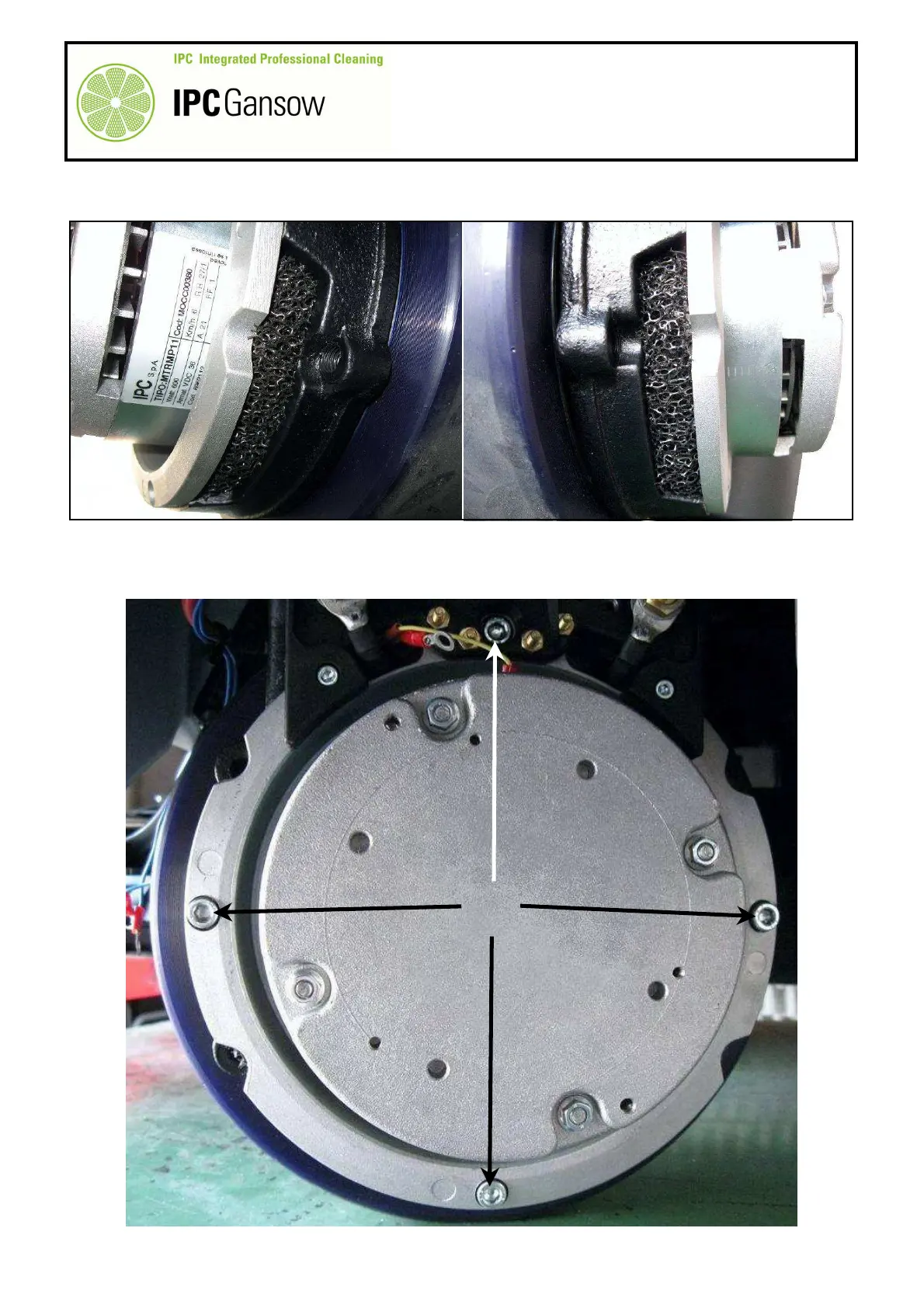

10 Remove the two (2) dust protection sponges E mounted at the sides of the motor B.
11 Unscrew the four (4) screws B5 fastening the motor to the reduction unit.
12 Extract the motor holding it as horizontal as possible.
B5
PHOTO 306
E
E
PHOTO 305
