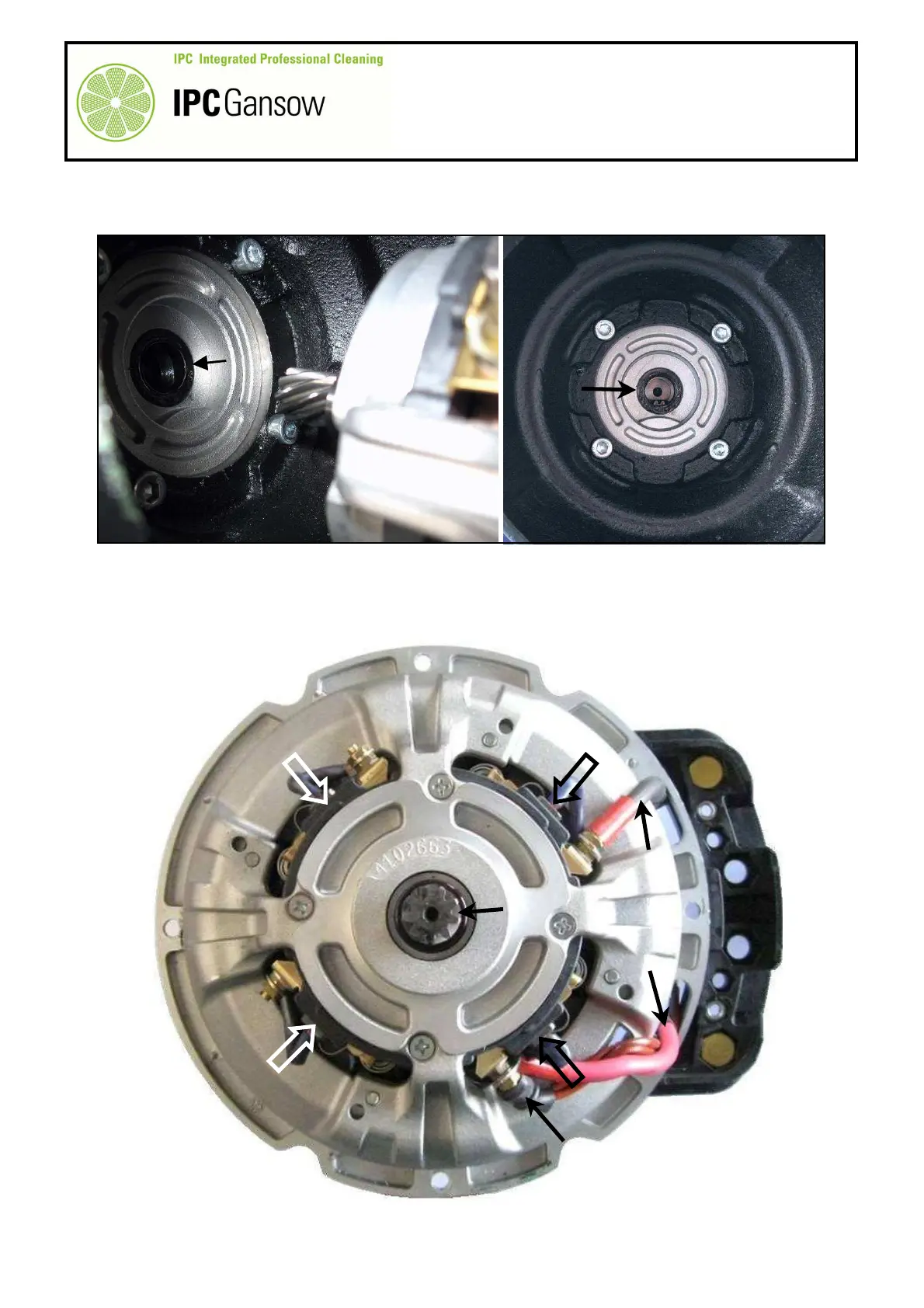

13 When extracting the motor B, take care to avoid damaging the seal ring F1 on the reduction unit F inside the
motor.
14 Place the motor B on the bench and proceed to check the four (4) carbon brushes G at 90° to each other.
15 The red power wire G5 and thermal cutout G7 are connected to the carbon brush eye terminal G1.
16 The black power wire G6 is connected to the carbon brush eye terminal G2.
B
PHOTO 307
F1
F1
F
F
G1
G5
G6
G2
G3
G4
G7
PHOTO 308
B6
