Pay attention when tightening the two (2) bolts D pressing directly on the two squeegee blades F and I.
Tighten with moderation to avoid distorting the blades.
Reassembly
1
To assemble the new squeegee blades, perform the disassembly operations in reverse.
2
Clean the contact surface of the squeegee thoroughly before mounting the new blades.
3
Tighten the wing nuts C and G starting from the centre of the squeegee body and moving towards the points.
4
Make sure all the wing nuts C and G are tightened with moderation to avoid distorting the squeegee blades.

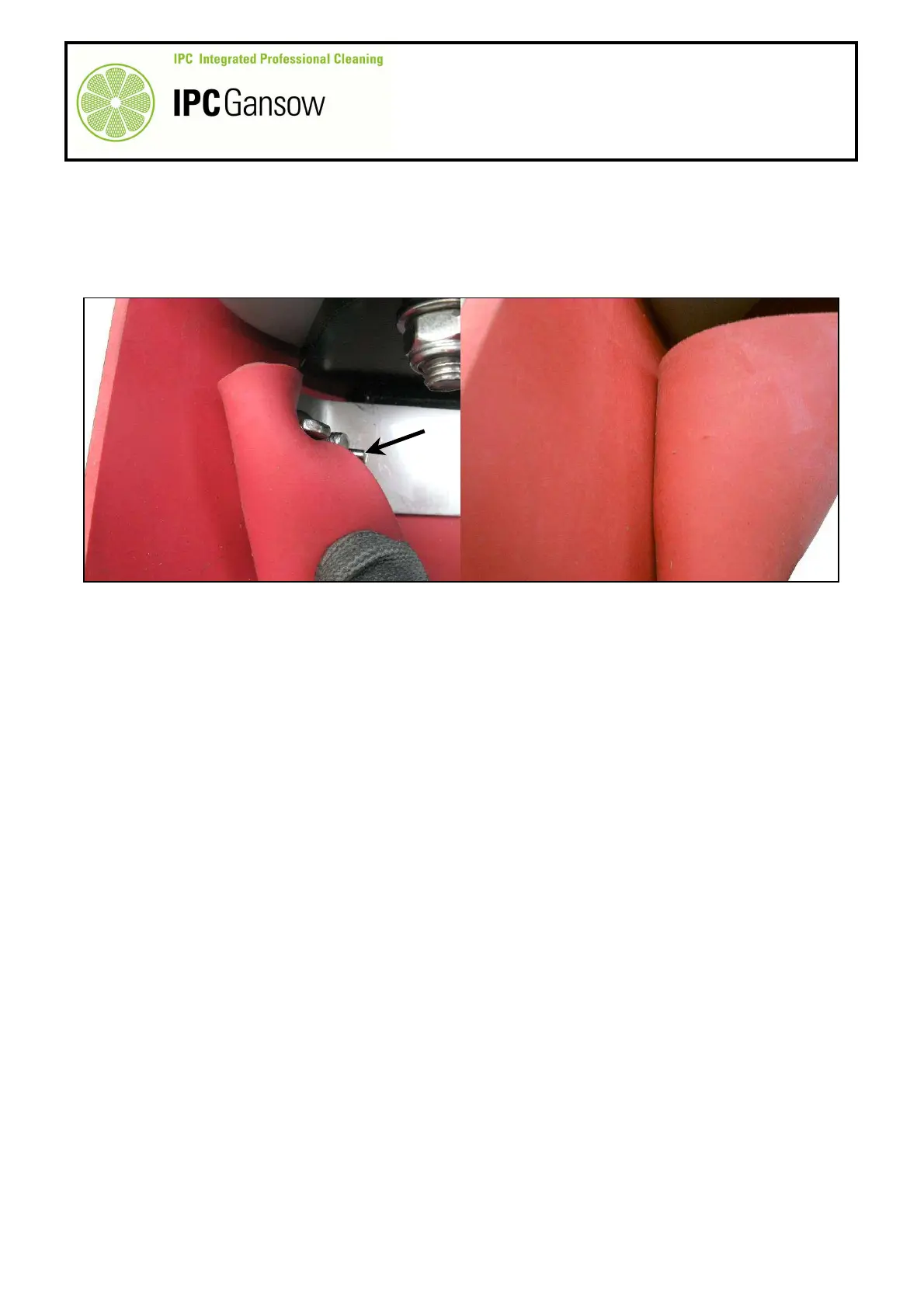

PHOTO 226
D
F
I
F
I
