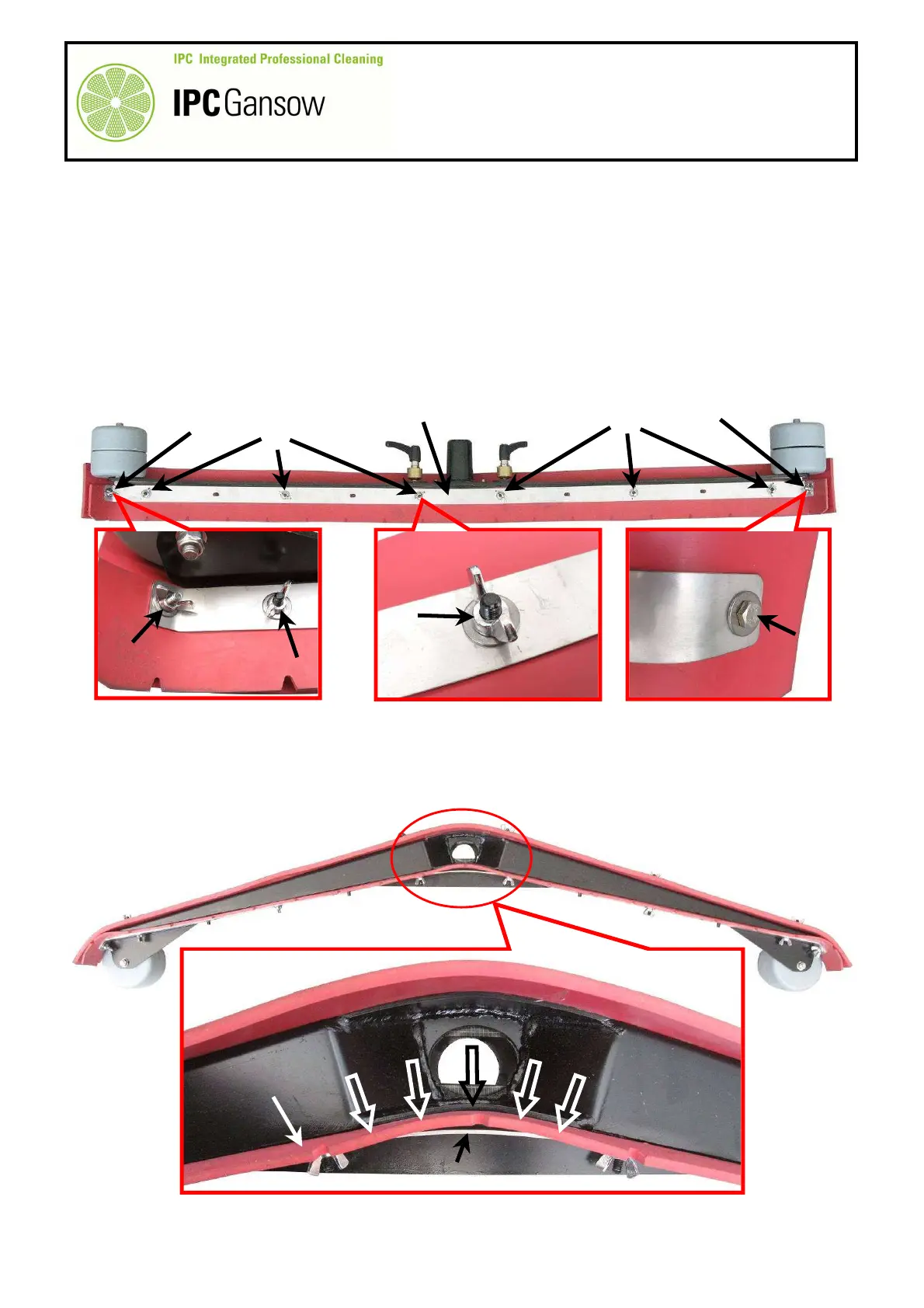

Front blade (flap)
The standard blades mounted on the front of the squeegee are made from 8 mm thick
latex. Their mirror design enables them to be mounted to use either of the two faces.
This extends the working life of the blade before it needs replacing definitively.
The blade should be turned every 100 working hours.
9
Unscrew the six (6) outer wing nuts G and the two (2) inner bolts with wing nuts D.
10
Remove the full width blade retainer H and then the front squeegee blade I.
Checks
11
Make sure the front blade I fits perfectly against the profile of the squeegee body when the blade retainer H
is pressed, to avoid it taking in air from above, reducing the drying efficiency.
G
I
H
G
D
D
D
G
G
D
F
I
PHOTO 225
H
i
