PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT
Stavale
- date 05/09/2011
172/195

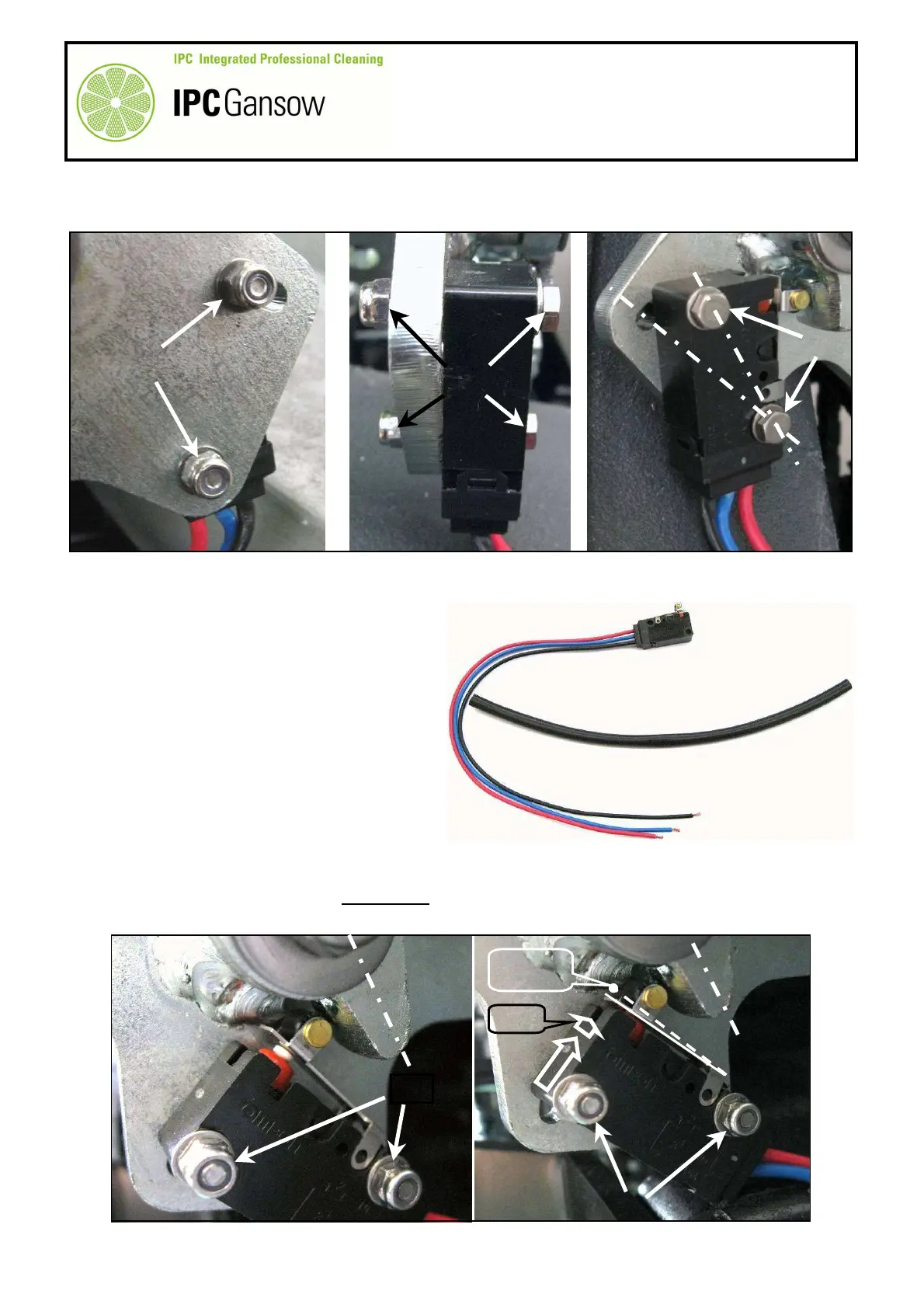

Disassembly
9
Unscrew the two bolts C, remove the micro switch A and replace with a new one.
Reassembly
1
To mount the new micro switch, perform the disassembly operations in reverse.
2
Cut the connectors B of the old micro switch to
recover the protective sheath A2.
3
Screw up the screws A1 without tightening to
enable the micro switch A to be regulated.
Adjustment
1
With the pedal in the idle position, not pressed, move the micro switch nearer to the pedal until you hear a
click when it trips, move it a maximum of one (1) millimetre nearer then tighten the screws A1.
A1
A1
PHOTO 360
CLIC
F3
1 mm
PHOTO 359
F4
