PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011
26/195
9

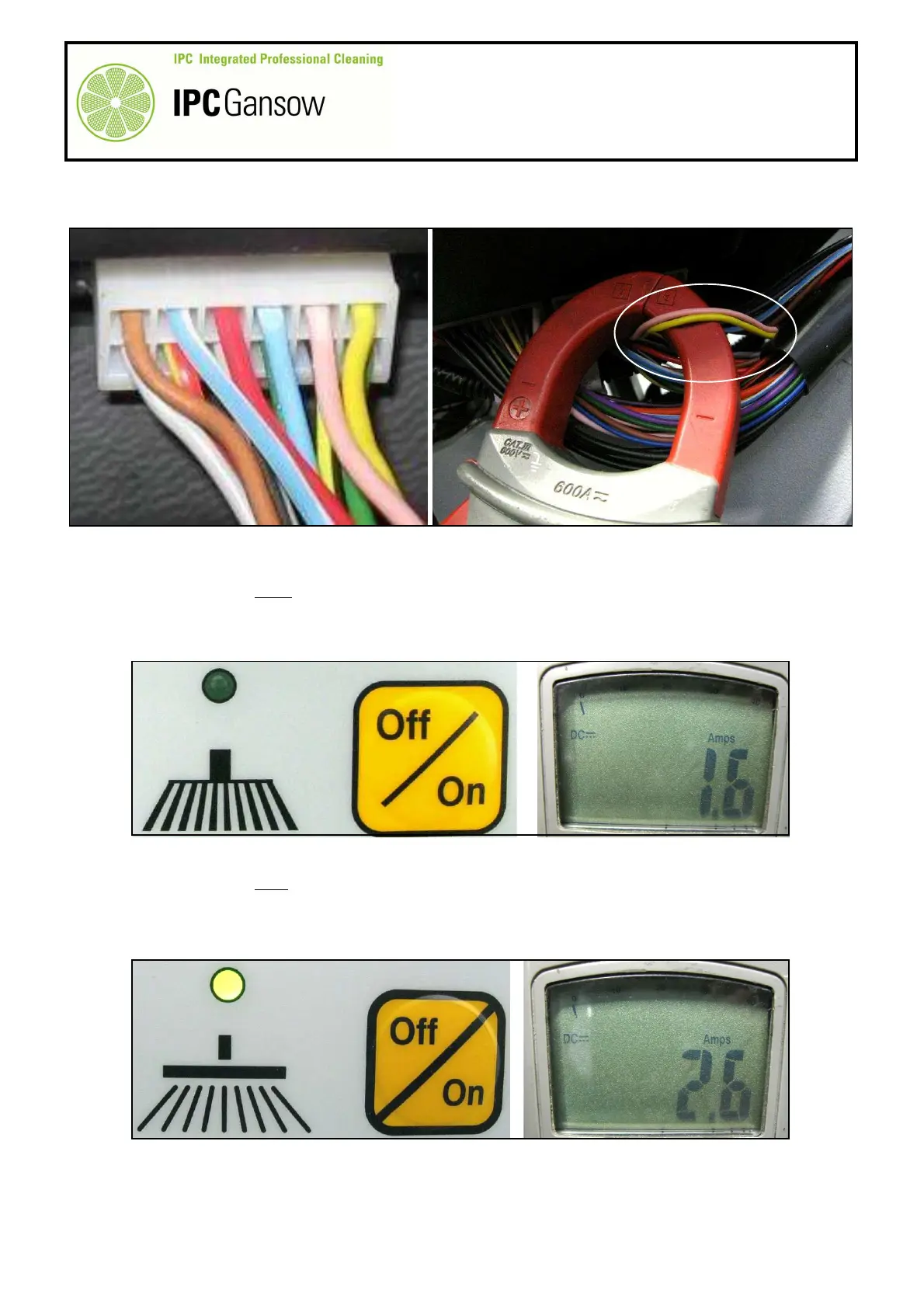

On connector D identify the pink wire D5 and the yellow wire D6 and connect the clamp meter to both.
10
Turn the machine on and test with the brushes mounted (preferably new).
11
Press the button E to lower the head.
12
Read the draw in amps and compare with the table below.
13
Press the button E to raise the brushes.
14
Read the draw in amps and compare with the table below.
15
If the values are within the range shown in the table below, everything is within the norm. Disconnect the
clamp meter and remount the control panel.
PHOTO 57
PHOTO 58
E
