If the measurements do not correspond to those specified but are higher:
16a
Check that the head parallelogram is free to move up and down without interference and that there are no
squeaks or rubbing sounds.
16b
Check the draw of the actuator without load or replace the actuator with a new one.
The circuit board controls the head actuator during raising and lowering, powering it through
the MOS-FET with an ON-OFF command (switch type).

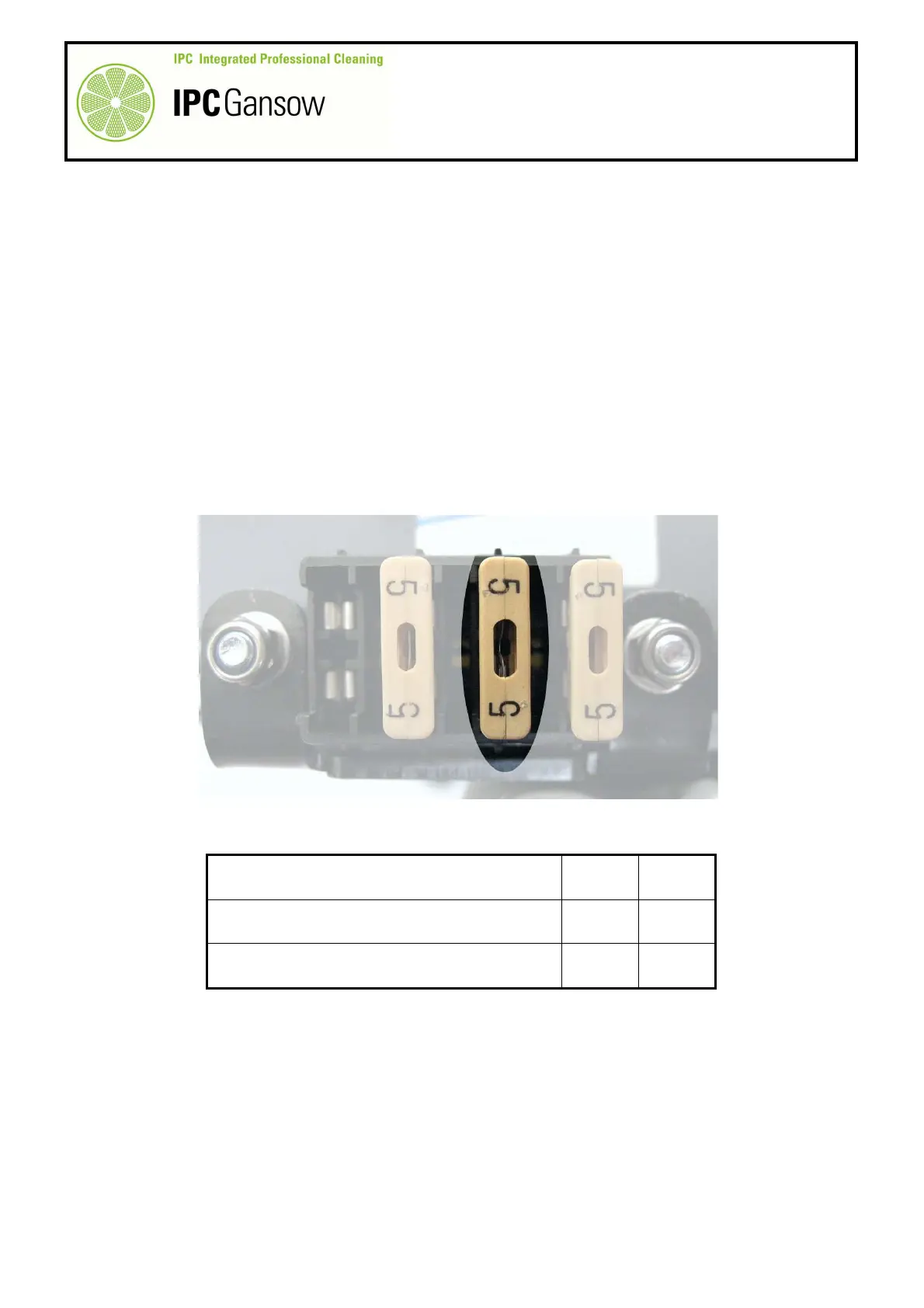

If current draw is high or there is a short circuit, the 5A fuse trips and current to the actuator is
shut off.
Draw A (amps) Min Max
During lowering 1.2 A 3.0 A
During raising 0.8 A 3.0 A
i
PHOTO 60
