PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT
Stavale
- date 05/09/2011
170/195
10

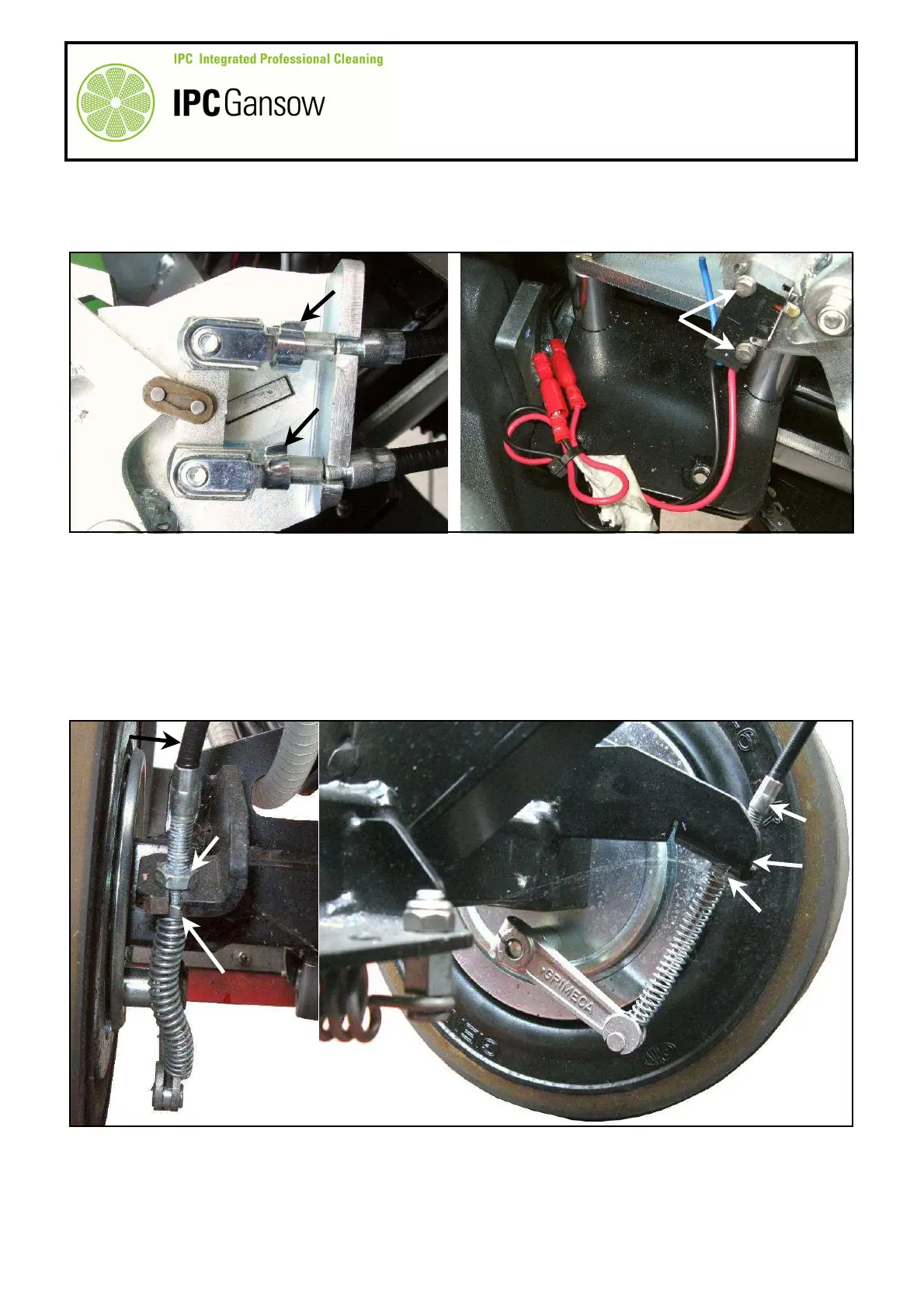

Unhook the two clips F fastening the brake wires G to the pedal.
11
Remove the micro switch H by unscrewing the two bolts H1. For convenience, disconnect it from the wiring
by means of the two round red terminals H2.
12
Replace the pedal with a new one.
Adjustment
13
When the brake pedal E is replaced, or after using the machine for a long time, you are recommended to
adjust the brakes to guarantee correct braking.
14
Unscrew the nut I and adjust braking by screwing up the nut L blocking the brake cable M.
15
Screw up nut L with moderation and make sure the wheels turn effortlessly, otherwise reverse the process
by unscrewing the nut L.
16
After regulation, tighten the nut I blocking the brake cable M.
Reassembly
1
To mount the new pedal, perform the disassembly operations in reverse.
2
Adjust the micro switch as described in the following paragraph.
I
I
L
M
M
L
PHOTO 355
F
H
H2
PHOTO 354
