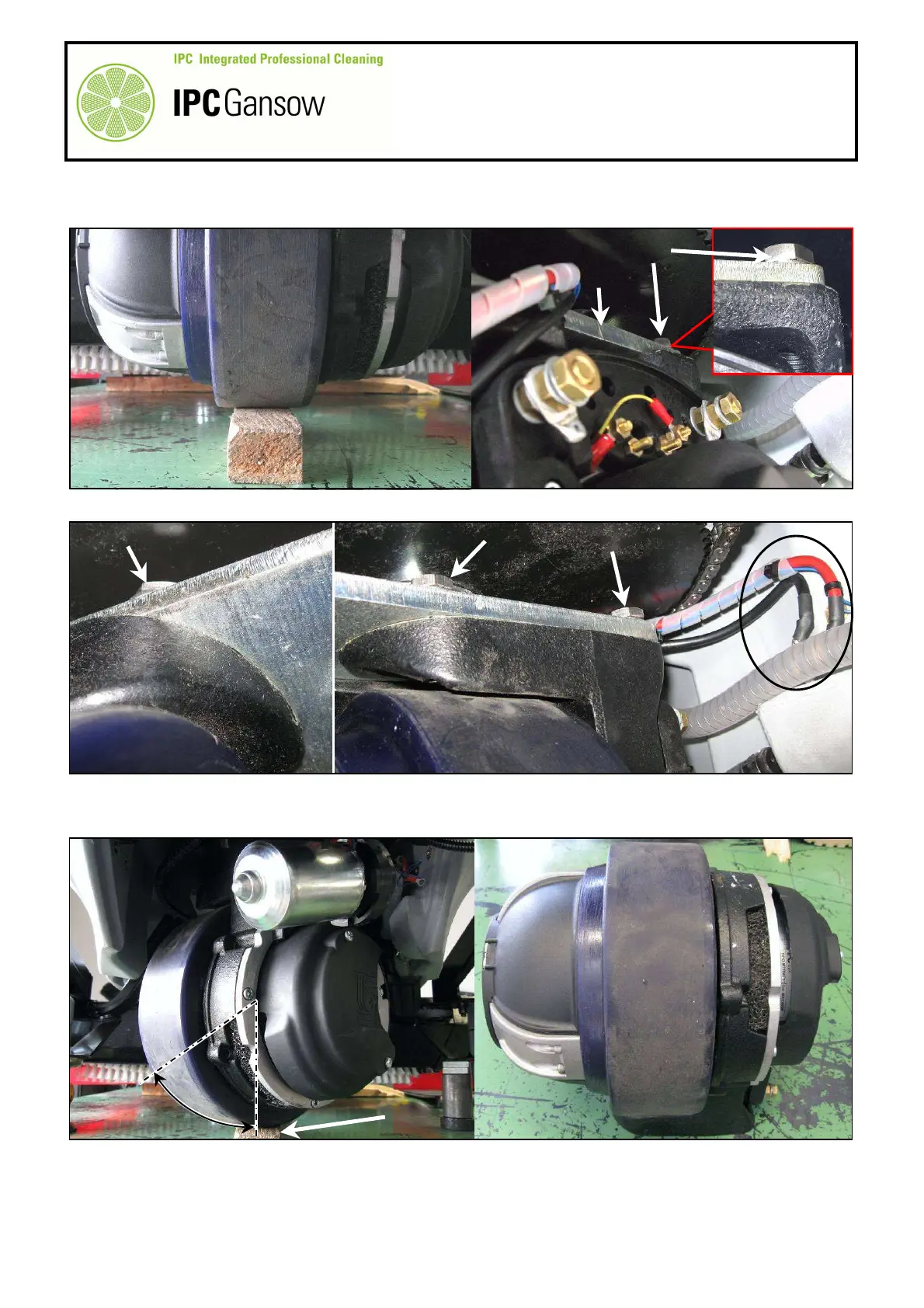

11 Place a piece of wood or a wedge D under the rubber tyred ring B5 to facilitate removal of the screws E.
12 Unscrew the four screws E fixing the complete motor wheel B to the plate F. Unscrew the screws in the back
of the motor wheel B first.
13 Arrange the power wires (red and black) so as not to hamper removal of the motor wheel.
14 Rotate the motor wheel B through 45° to remove it from the side walls of th e detergent tank. Remove the
piece of wood or wedge D and remove the motor wheel.
15 Rest the motor wheel stably on a bench facing downwards.
Reassembly
1 To mount the new motor wheel, complete the disassembly operations in reverse.
2 Tighten the screws E fixing the motor wheel B to the plate F with a maximum torque of 40 Nm (~ 4.0 kgm).
B5
D
B
E
F
PHOTO 334
1°
E
2°
F
PHOTO 335
B5
3°
E
E
4°
F
B
B
D
45°
PHOTO 336
