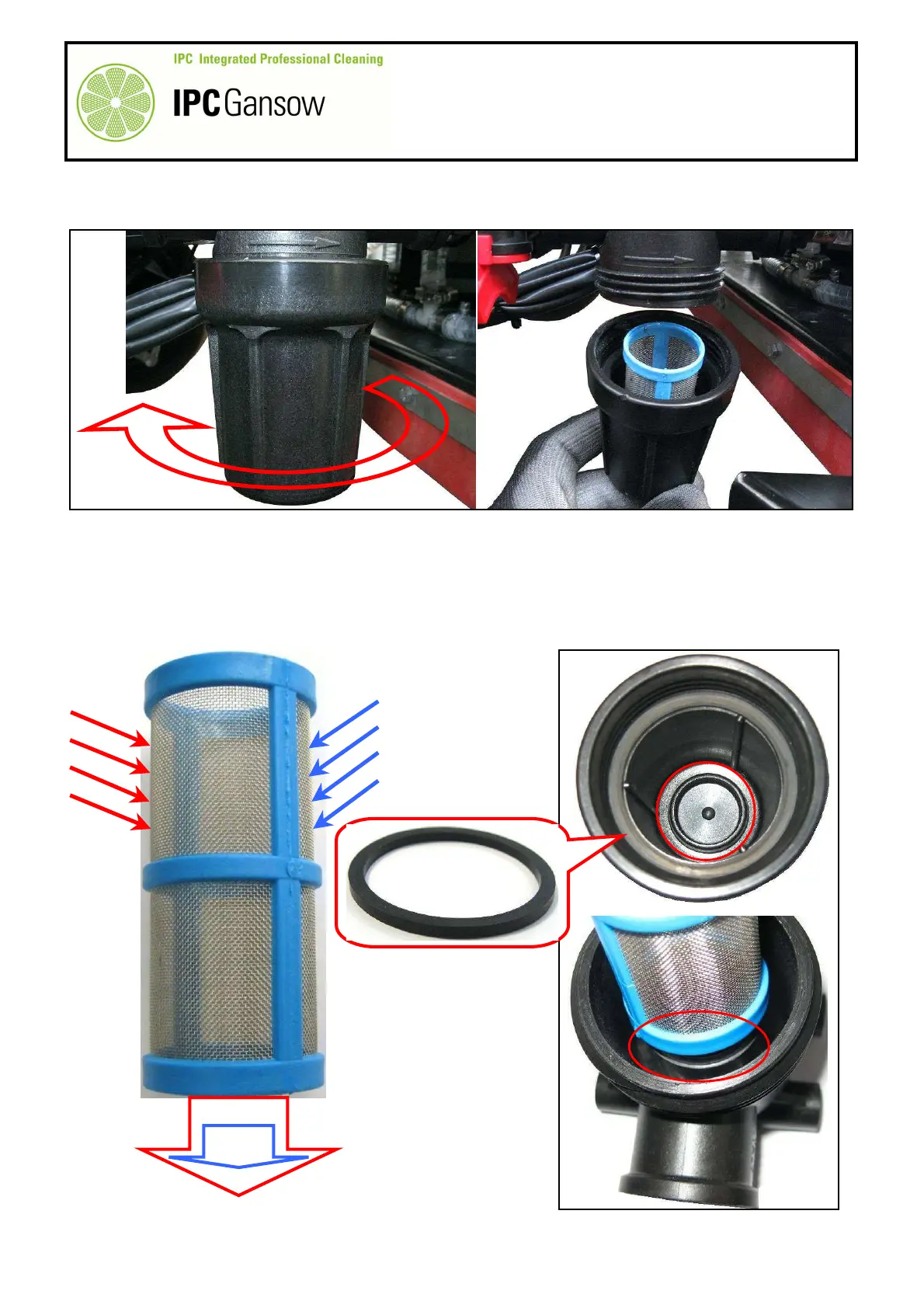

6 Unscrew the tank E2 from the filter body E1 and remove the water filter E3.
7 Clean the filter E3 with running water, working from the outside inwards, then blow with a jet of compressed
air, again working from the outside inwards.
8 Check that the rubber gasket E4 at the top of the tank E2 is present and in good condition.
9 Mount the filter E3, centring it in the tank E1 and the filter body E2.
10 Screw the tank E2 onto the filter body E1 by hand. Tighten with moderation.
E2
PHOTO 240
E3
E2
AIR
A
I
R
H
2
O
H
2
O
PHOTO 241
PHOTO 242
E2
E1
A3
A4
