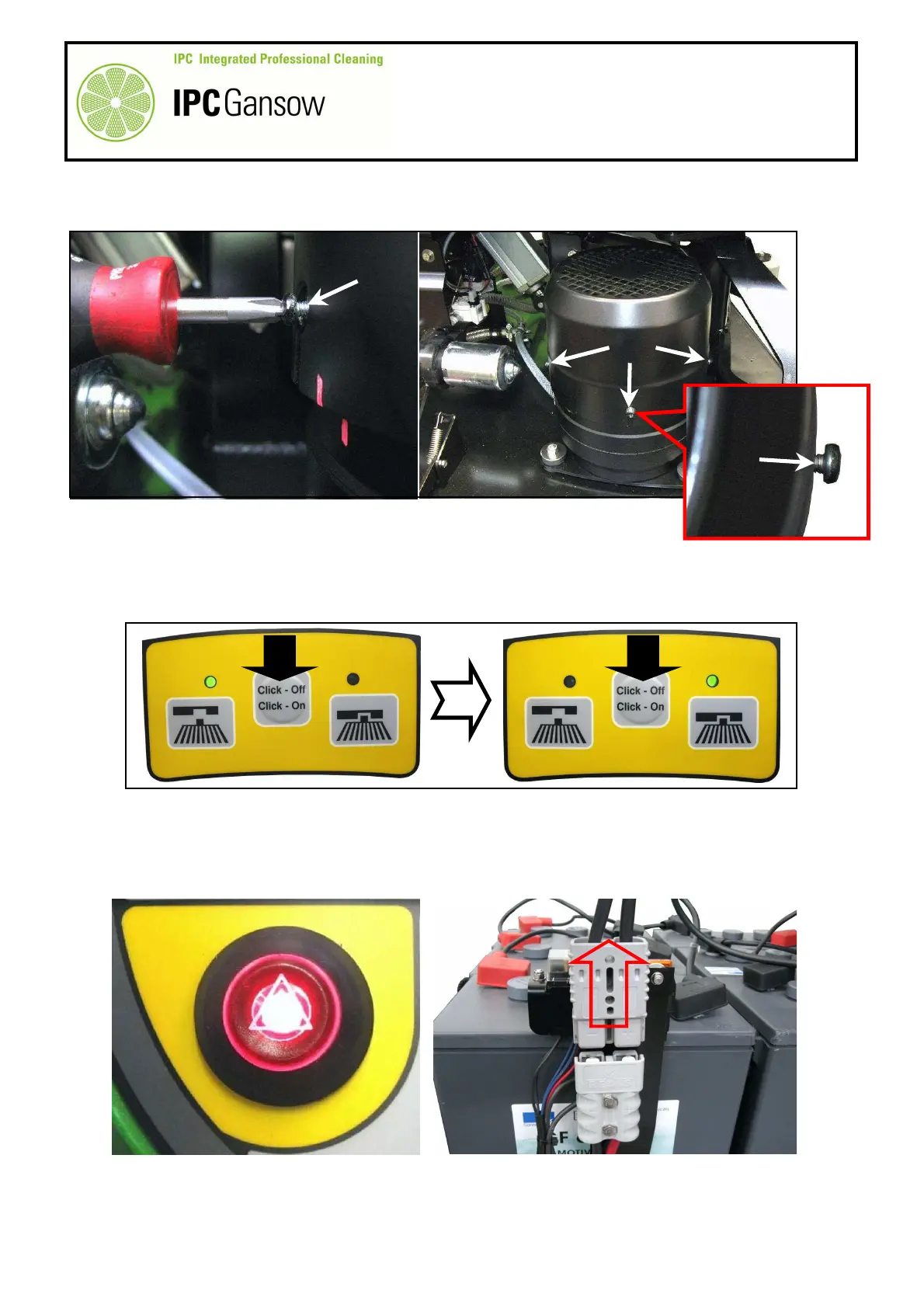

Unscrew the four screws D2 until the heads of the screws emerge from the corresponding recess on the air
conveyor D1. To facilitate remounting the air conveyor, do not remove the screws D2 completely.
10
Switch the machine on by turning the key to position "1".
11
Press button B to perform a brush release action without the brushes attached.
12
Wait for the LED indicating that the brushes can be attached to flash, then press the button B again to
perform an automatic brush attachment operation without attaching the brushes.
13
With the head fully lowered, press the emergency button E to block the position and avoid the head returning
to the standby position.
14
Disconnect the batteries by means of the connector F, turn the ignition key to position “0” and reset the
emergency button.
D2
D2
D2
PHOTO 31
B B
PHOTO 32
F
PHOTO 33
