29 Continue the test, gradually increasing the quantity of detergent delivered.
30 Press the M+ button once to command (intermittent) operation of the pump and solenoid valve and set the
quantity of detergent to one LED on.
31 Continue in steps of one, turning one LED on at a time on, until the sixth and last LED comes on, maximum
flow rate.
32 Keep the probe E on pin D4 and the
probe H in the faston cover I on the key
contact.

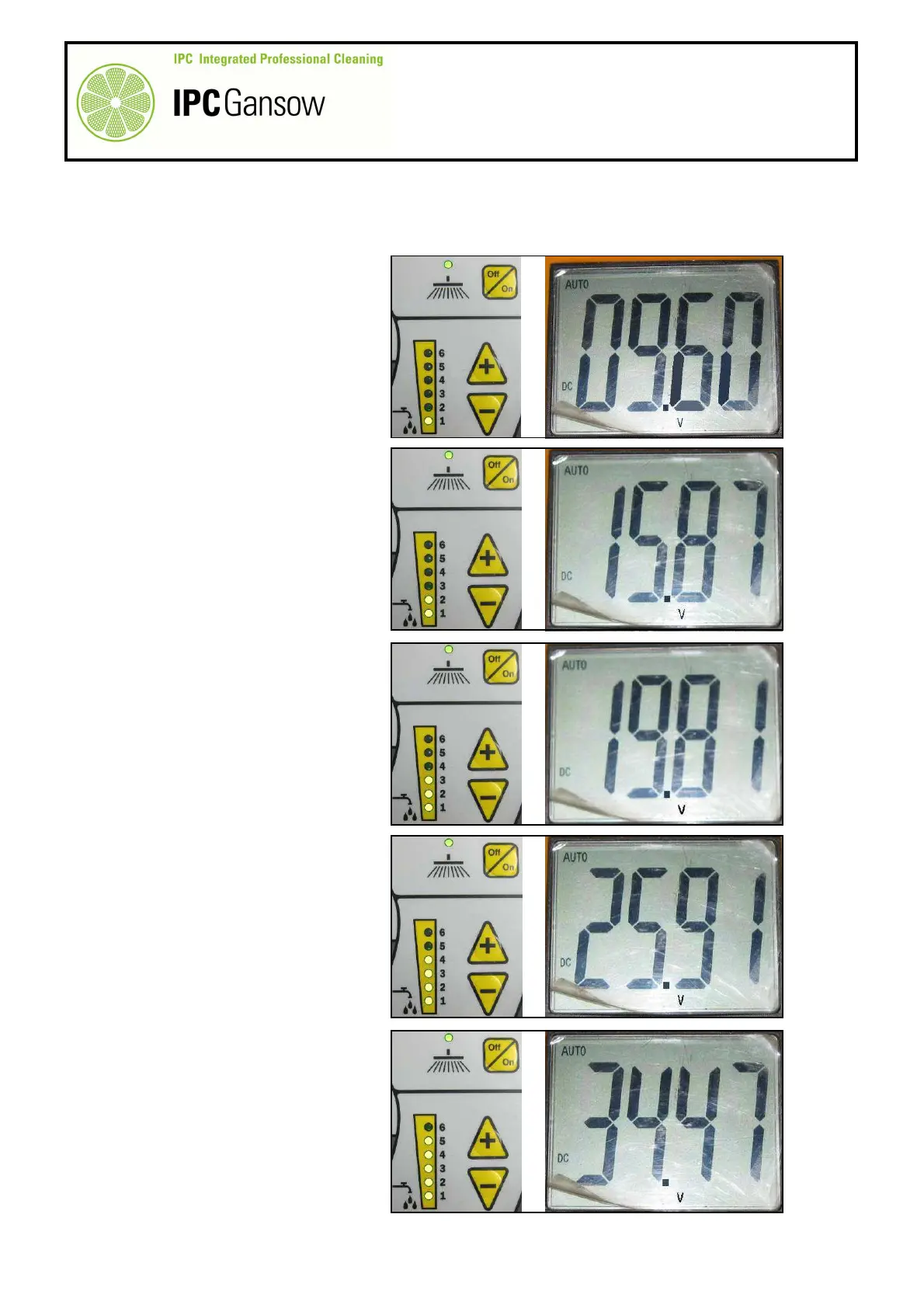

33 Check the output voltage, pressing the
button M+ to select position 1, one LED
on. Read and write the value. Solenoid
valve intermittent. Detergent flow 1.3 L -
2.2 L.
34 Check the output voltage, pressing the
button M+ to select position 2, two LEDs
on. Read and write the value. Solenoid
valve intermittent. Detergent flow 3.5 L -
4.5 L.
35 Check the output voltage, pressing the
button M+ to select position 3, three LEDs
on. Read and write the value. Solenoid
valve intermittent. Detergent flow 5.0 L -
6.0
36 Check the output voltage, pressing the
button M+ to select position 4, four LEDs
on. Read and write the value. Solenoid
valve continuous. Detergent flow 7.5 L -
8.5 L.
37 Check the output voltage, pressing the
button M+ to select position 5, five LEDs
on. Read and write the value. Solenoid
valve continuous. Detergent flow 8.5 L -
9.5 L.
PHOTO 253
M
± 1V
M
PHOTO 254
± 1V
M
PHOTO 255
± 1V
PHOTO 252
M
± 1V
M
PHOTO 256
± 1V
