Adjustment
The chem-dose pump mounted on the machine can be calibrated according to the
user’s needs. The percentage can be regulated from a minimum of 0% to a maximum
of 3%. The pump can be regulated either before mounting or afterwards, during
washing. The pump leaves the factory with a default setting of 2%.
Before mounting
5
Adjust the chem-dose pump to the value of the pump removed previously by means of the screw C.
After mounting
6
After completely assembling the machine, remove the protective cap D and insert a screwdriver through the
hole in the footplate to reach the chemical pump regulations screw C.

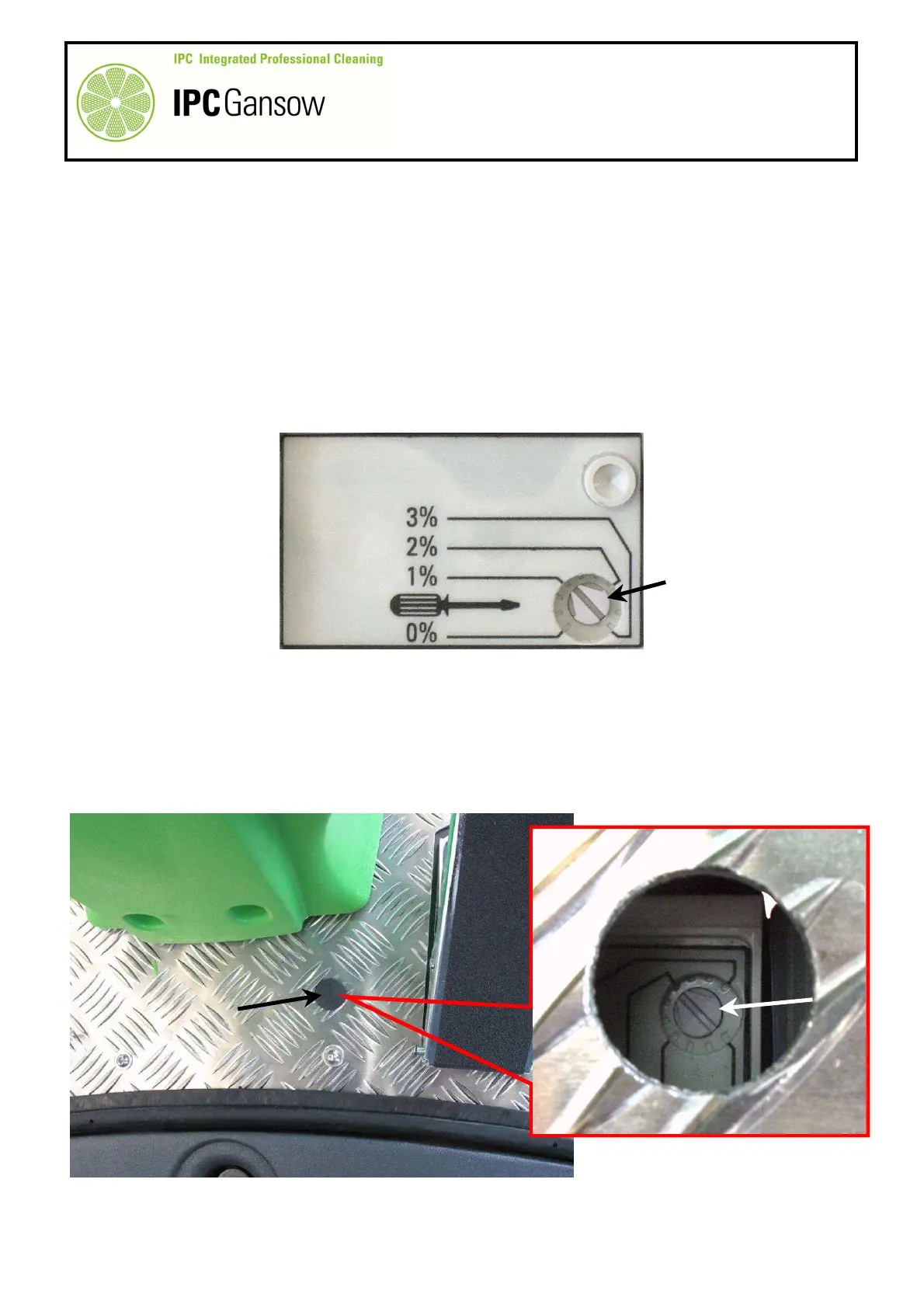

PHOTO 372
C
PHOTO 373
C
3%
2%
1%
0%
D
