PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011
34/195
16

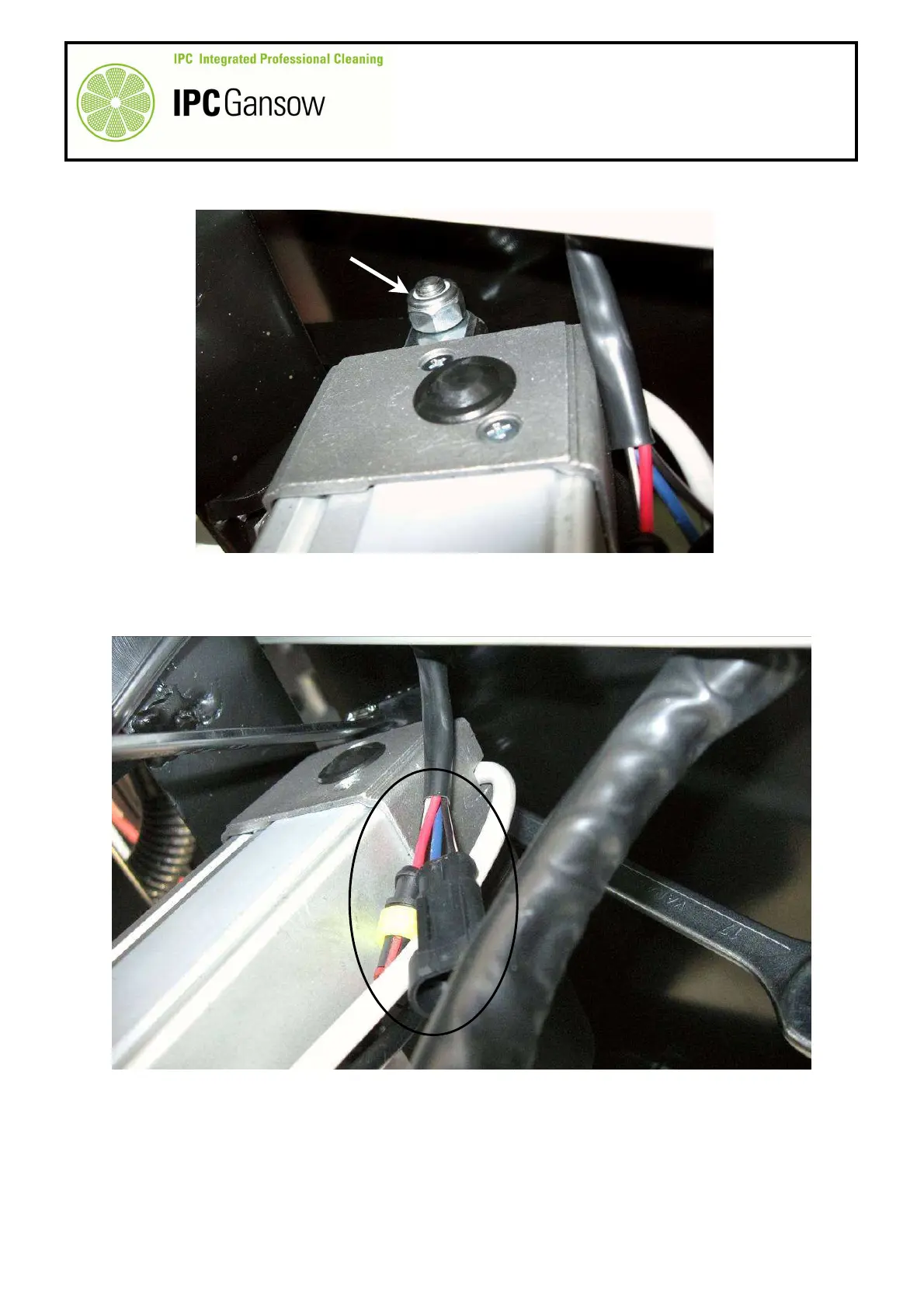

Rest the head on the surface and proceed to remove the nut M fastening the actuator G to the top bracket.
17
For convenience, given the tight space available, use a no. 17 ratchet spanner.
18
If the solenoid valve wires and pump wire make it difficult to remove the actuator, disconnect them.
Reassembly
1
Before replacing the electromechanical actuator G, test it on the bench as described in the following
paragraph.
2
To mount the new actuator, perform the disassembly operations in reverse.
G
M
PHOTO 74
PHOTO 75
G
