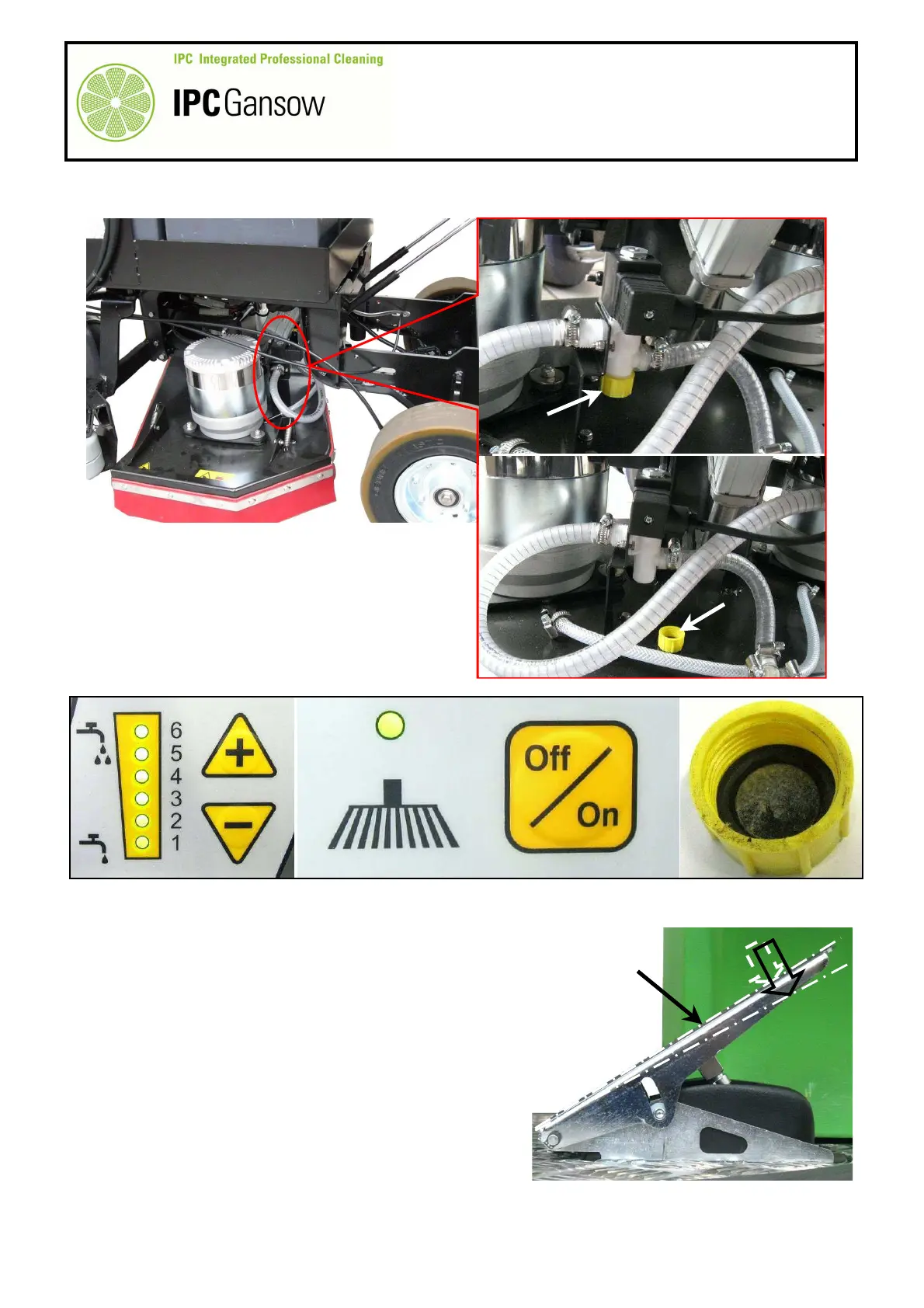

Identify the position where the solenoid valve F is mounted on the head.
11
Unscrew the solenoid valve cap G to free any dirt present.
12
Connect the batteries and turn the key to the “1”
position to turn the machine on.
13
Press button H to set the quantity of water delivered to
maximum (six LEDs on).
14
Press button I to manually operate the brushes.
15
With the head fully lowered, press the accelerator pedal L lightly to control detergent delivery.
The machine is normally set to “AutoPower
OFF”, in practice, the brushes and water delivery
are deactivated after about three seconds with
the accelerator pedal in the idle position.
Keep the pedal lightly pressed to deliver a
moderate flow of water.
16
If a good quantity of water flows out of the solenoid valve, it
is clean and the circuit upstream, including the filter, is free
of obstructions. Replace the cap G.
Reassembly
1
Before putting the cap G back, check that the internal gasket M is in good condition.
G
G
M
G
