Replacing
21 To replace the solenoid valve, access it as described above and, if not already connected, disconnect the
cap connector H.
22 Detach the detergent intake hose O and outlet hose P by removing the two hose clips O1 and P1.
23 Unscrew the two bolts Q to release the solenoid valve from its bracket.
Reassembly
1 To mount the new solenoid valve, follow the disassembly operations in reverse.

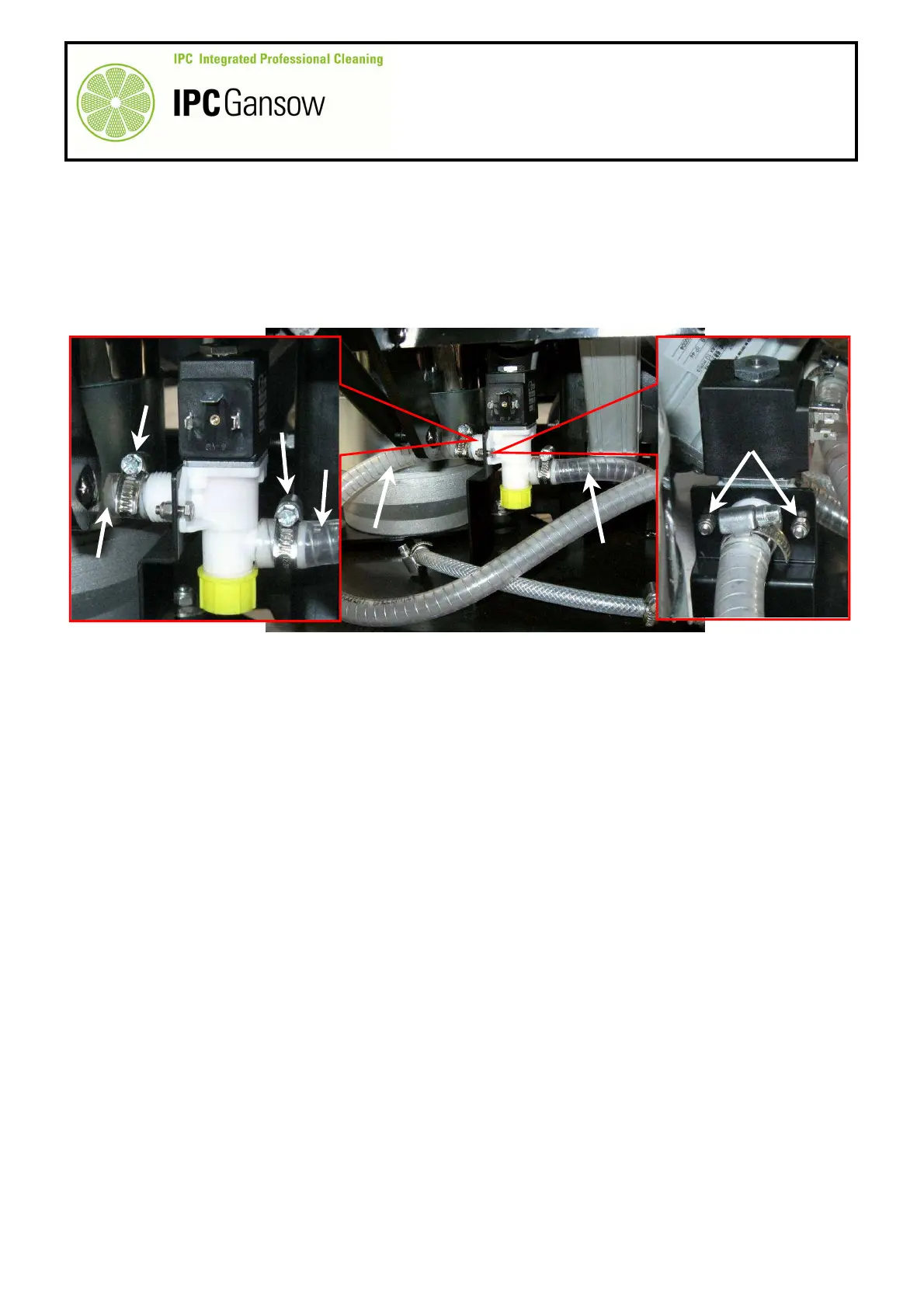

PHOTO 156
O
O1
P
O
P1
P
Q
